TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )RHD

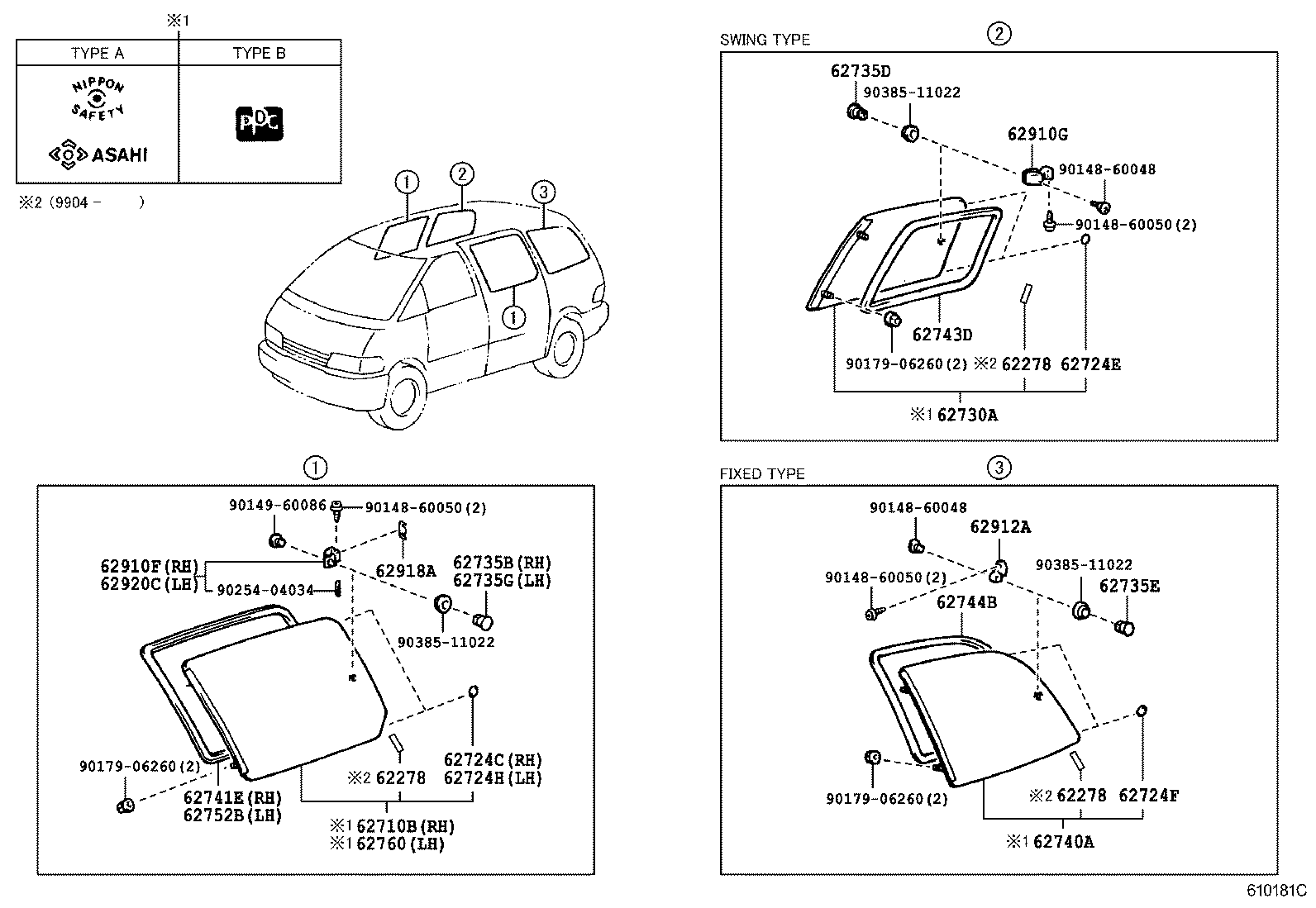

Click highlighted areas on diagram

diagram 62278 62278 62278 62710B 62724C 62724E 62724F 62724H 62730A 62735B 62735D 62735E 62735G 62740A 62741E 62743D 62744B 62752B 62760 62910F 62910G 62912A 62918A 62920C 9014860048 9014860048 9014860050 9014860050 9014860050 9014960086 9017906260 9017906260 9017906260 9025404034 9038511022 9038511022 9038511022
Part # Description Qty Price
62710B - WINDOW ASSY, SIDE, FRONT RH
62071-28010

TCR10,20..ARL;TCR11..RHD..W

*TEM,T=4.0

 1
62071-28020

TCR1#,2#..RHD

*TT,T=4.0,BLUE

 1
62724C - STOP, SIDE FRONT WINDOW GLASS, RH
62724-95D00

TCR1#,2#..RHD

 2
62724E - STOP, SIDE REAR WINDOW GLASS, RH
62724-95D01

TCR1#,2#

UPPER

 1
62724-95D00

TCR1#,2#

LOWER

 1
62724F - STOP, SIDE REAR WINDOW GLASS, LH
62724-95D00

TCR1#,2#

LOWER

 1
62724-95D01

TCR1#,2#

UPPER

 1
62724H - STOP, SLIDE DOOR WINDOW GLASS, LH
62724-95D00

TCR1#,2#..RHD

 2
62730A - WINDOW ASSY, SIDE, REAR RH
62073-28040

TCR1#,2#..RHD

*TT,T=4.0,BLUE

 1
62073-28020

TCR10,20..ARL;TCR11..RHD..W

*TEM,T=4.0

 1
62735B - RETAINER, SIDE FRONT WINDOW HINGE, RH
62735-95D00

TCR1#,2#..RHD

 1
62735D - RETAINER, SIDE REAR WINDOW HINGE, RH
62735-95D00

TCR1#,2#

 1
62735E - RETAINER, SIDE REAR WINDOW HINGE, LH
62735-95D00

TCR1#,2#

 1
62735G - RETAINER, SLIDE DOOR WINDOW HINGE, LH
62735-95D00

TCR1#,2#..RHD

 1
62740A - WINDOW ASSY, SIDE, REAR LH
62074-28020

TCR10,20..ARL;TCR11..RHD..W

*TEM,T=4.0

 1
62074-28040

TCR1#,2#..RHD

*TT,T=4.0,BLUE

 1
62741E - WEATHERSTRIP, SIDE FRONT WINDOW, RH
62741-95D00

TCR1#,2#..RHD

 1
62743D - WEATHERSTRIP, SIDE REAR WINDOW, RH
62743-95D00

TCR1#,2#

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62744-95D00

TCR1#,2#

 1
62752B - WEATHERSTRIP, SLIDE DOOR WINDOW, LH
62752-95D00

TCR1#,2#..RHD

 1
62760 - WINDOW ASSY, SLIDE DOOR, LH
68104-28020

TCR1#,2#..RHD

*TT,T=4.0,BLUE

 1
68104-28010

TCR10,20..ARL;TCR11..RHD..W

*TEM,T=4.0

 1
62910F - LOCK ASSY, SIDE FRONT WINDOW, RH
62910-95D0003

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
62910G - LOCK ASSY, SIDE REAR WINDOW, RH
62910-95D0003

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
62912A - BASE, SIDE WINDOW LOCK HOOK, LH
62912-95D0101

TCR10,20..ARL

BLACK,TRIM1#

 1
62920C - LOCK ASSY, SLIDE DOOR WINDOW, LH
62920-95D0003

TCR1#,2#..RHD

LIGHT GRAY,TRIM1#

 1
Common parts
90148-60048
90148-60050
90149-60086
90179-06260
90254-04034
90385-11022
