TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )RHD

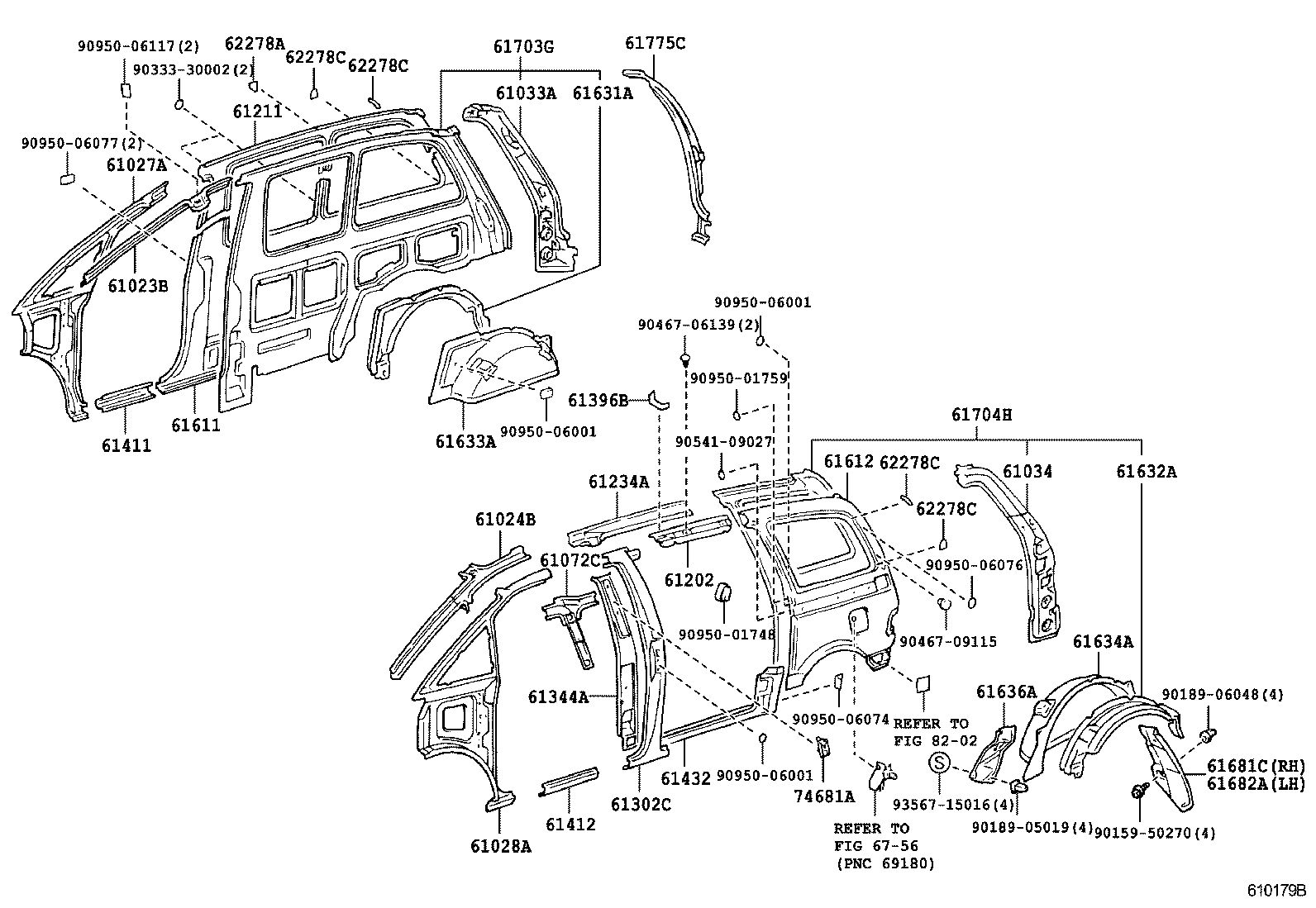

Click highlighted areas on diagram

diagram 61023B 61024B 61027A 61028A 61033A 61034 61072C 61202 61211 61234A 61302C 61344A 61396B 61411 61412 61432 61611 61612 61631A 61632A 61633A 61634A 61636A 61681C 61682A 61703G 61704H 61775C 62278A 62278C 62278C 62278C 62278C 6756 74681A 8202 9015950270 9018905019 9018906048 9033330002 9046706139 9046709115 9054109027 9095001748 9095001759 9095006001 9095006001 9095006001 9095006074 9095006076 9095006077 9095006117 9356715016
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95D03

TCR1#,2#

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95D03

TCR1#,2#

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-28050

TCR1#,2#..RHD

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-28090

TCR1#,2#..RHD

 1
61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033-95D00

TCR1#,2#

 1
61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61034-95D00

TCR1#,2#

 1
61072C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH
61072-95D00

TCR1#,2#..RHD

 1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-28010

TCR1#,2#..RHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61201-28110

TCR1#,2#..RHD

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-95D00

TCR1#,2#..RHD

 1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-28010

TCR1#,2#..RHD

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-95D00

TCR1#,2#..RHD

 1
61396B - SEAL, CENTER BODY PILLAR, LH
61395-95D00

TCR1#,2#..RHD

 1
61411 - PANEL, ROCKER, OUTER RH
61411-28010

TCR1#,2#

 1
61412 - PANEL, ROCKER, OUTER LH
61412-28010

TCR1#,2#

 1
61432 - PANEL, ROCKER, OUTER REAR LH
61432-95D00

TCR1#,2#..RHD

 1
61611 - PANEL, QUARTER, RH
61601-28A10

TCR1#,2#..RHD

 1
61612 - PANEL, QUARTER, LH
61602-95D16

TCR1#,2#..RHD

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-95D00

TCR1#,2#

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-95D01

TCR1#,2#

 1
61636A - BRACE, QUARTER WHEEL HOUSE, LH
61636-95D00

TCR1#,2#..RHD

 1
61681C - EXTENSION, REAR WHEEL OPENING, RH
61681-95D00

TCR1#,2#

 1
61682A - EXTENSION, REAR WHEEL OPENING, LH
61682-95D00

TCR1#,2#

 1
61703G - PANEL SUB-ASSY, QUARTER, INNER RH
61703-95D12

TCR1#,2#..RHD

 1
61704H - PANEL SUB-ASSY, QUARTER, INNER LH
61704-28150

TCR2#..ARL

 1
61775C - FRAME, BACK DOOR OPENING SIDE, RH
61705-95D00

TCR1#,2#..RHD

 1
62278A - PROTECTOR, SIDE WINDOW
62278-28020

TCR1#,2#

LOWER

 1
62278-28010

TCR1#,2#

UPPER

 1
62278C - PROTECTOR, SIDE WINDOW
62278-28020

TCR1#,2#

RH & LH, LOWER

 2
62278-28030

TCR1#,2#

RH,UPPER

 1
62278-28040

TCR1#,2#

LH,UPPER

 1
62278C - PROTECTOR, SIDE WINDOW
62278-28020

TCR1#,2#

RH & LH, LOWER

 2
62278-28030

TCR1#,2#

RH,UPPER

 1
62278-28040

TCR1#,2#

LH,UPPER

 1
62278C - PROTECTOR, SIDE WINDOW
62278-28020

TCR1#,2#

RH & LH, LOWER

 2
62278-28030

TCR1#,2#

RH,UPPER

 1
62278-28040

TCR1#,2#

LH,UPPER

 1
62278C - PROTECTOR, SIDE WINDOW
62278-28020

TCR1#,2#

RH & LH, LOWER

 2
62278-28030

TCR1#,2#

RH,UPPER

 1
62278-28040

TCR1#,2#

LH,UPPER

 1
Common parts
90159-50270
90189-05019
90189-06048
90333-30002
90467-06139
90467-09115
90541-09027
90950-01748
90950-01759
90950-06001
90950-06074
90950-06076
90950-06077
90950-06117
93567-15016
Linked diagrams
6756
8202
