TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )RHD

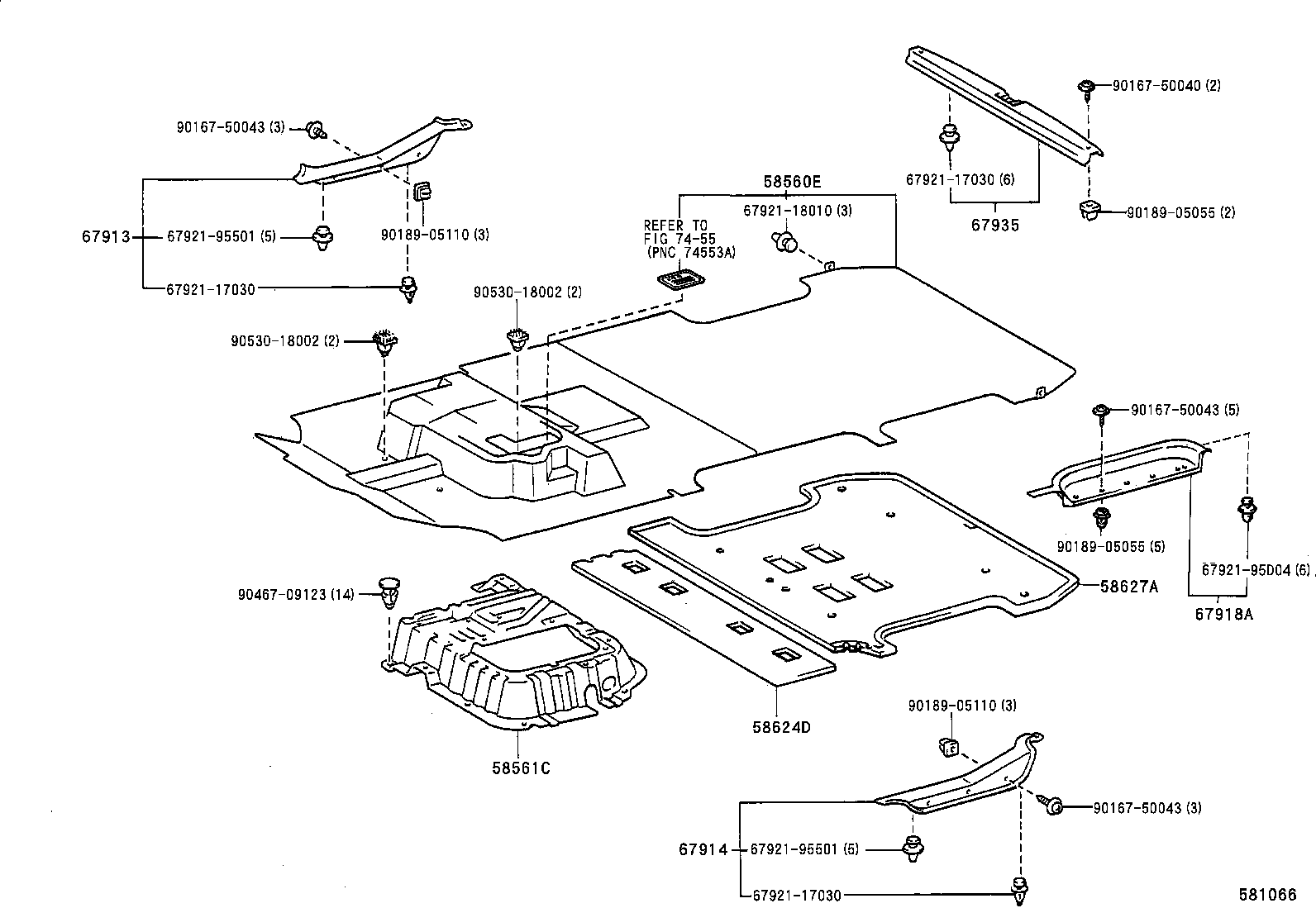

Click highlighted areas on diagram

diagram 58560E 58561C 58624D 58627A 67913 67914 67918A 6792117030 6792117030 6792117030 6792118010 6792195501 6792195501 6792195D04 67935 7455 9016750040 9016750043 9016750043 9016750043 9018905055 9018905055 9018905110 9018905110 9046709123 9053018002 9053018002
Part # Description Qty Price
58560E - CARPET ASSY, SEAT FLOOR
58560-95D7803

TCR20..ATM

LIGHT GRAY,TRIM1#

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-95D00

TCR1#,2#..ATM

 1
58624D - PAD, CENTER FLOOR SILENCER
58624-95D00

TCR2#

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-95D02

TCR1#,2#..RHD

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-95D0103

TCR1#,2#..RHD

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95D0103

TCR1#,2#..RHD

GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-95D0003

TCR2#..ARL

GRAY,TRIM1#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
Common parts
67921-17030
67921-18010
67921-95501
67921-95D04
90167-50040
90167-50043
90189-05055
90189-05110
90467-09123
90530-18002
Linked diagrams
7455
