TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608) ; (9608-9810)ARL,GEN,V ; (9608-9810)TCR11..RHD..MTM ; (9810- )TCR10.

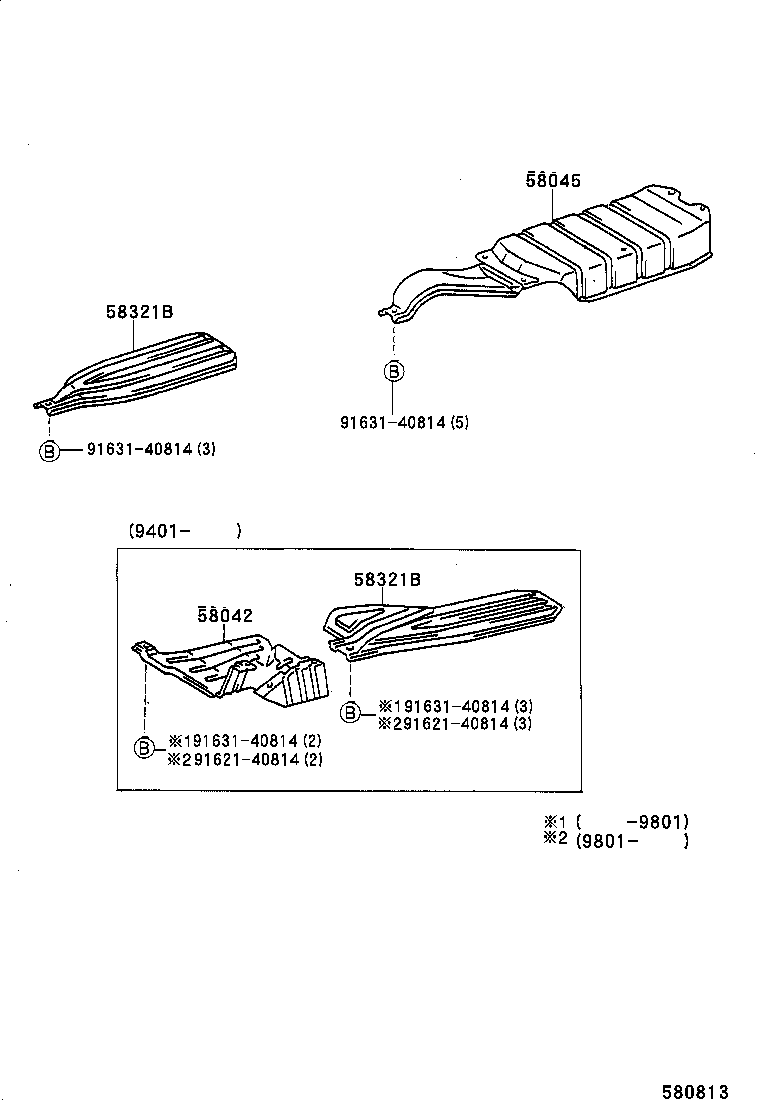

Click highlighted areas on diagram

diagram 58042 58045 58321B 58321B 9162140814 9162140814 9163140814 9163140814 9163140814 9163140814
Part # Description Qty Price
58045 - INSULATOR SUB-ASSY, REAR FLOOR HEAT
58045-95D00

TCR1#,2#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95D02

TCR1#,2#

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95D02

TCR1#,2#

 1
Common parts
91621-40814
91631-40814
