TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR10,20

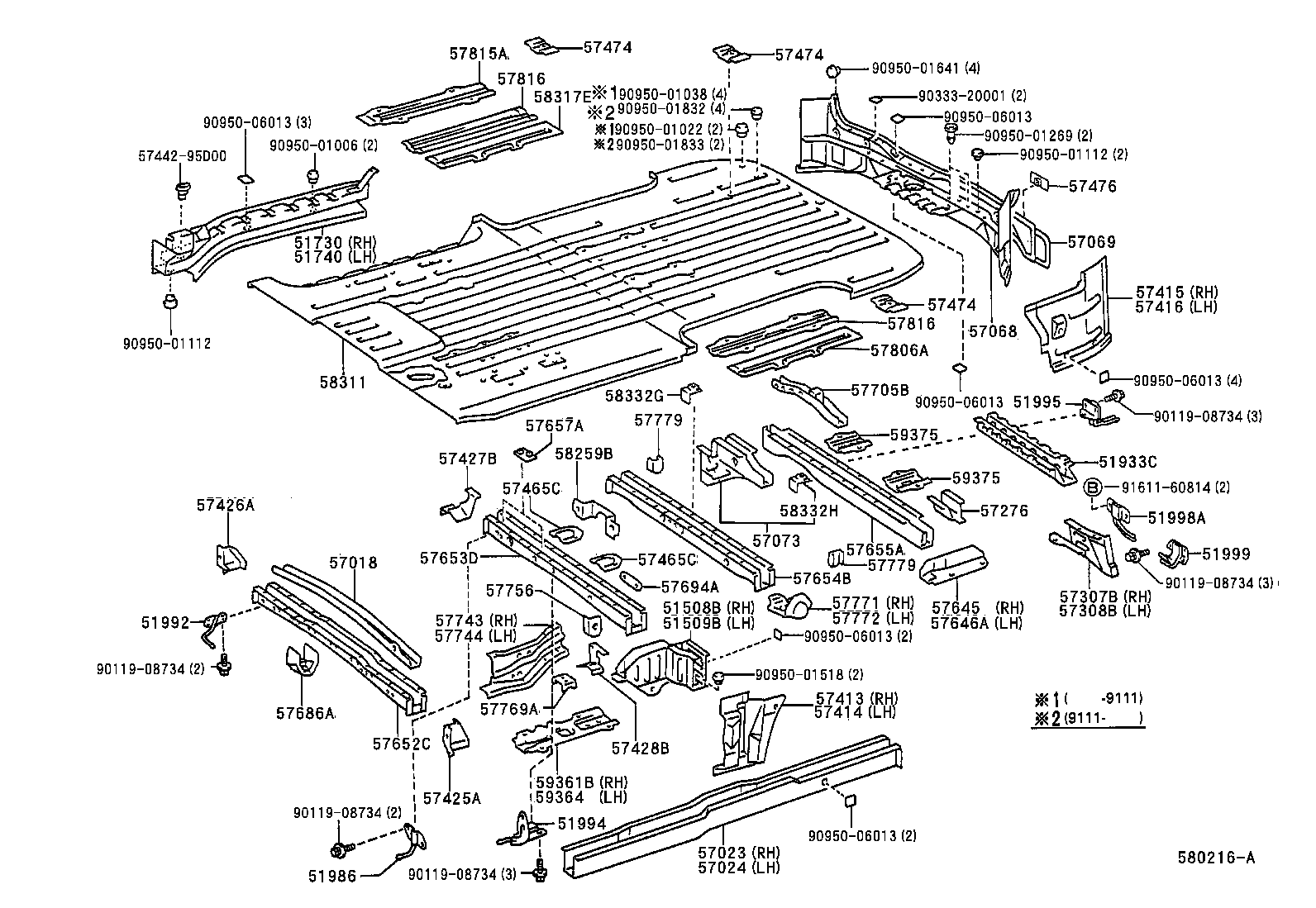

Click highlighted areas on diagram

diagram 51508B 51509B 51730 51740 51933C 51986 51992 51994 51995 51998A 51999 57018 57023 57024 57068 57069 57073 57276 57307B 57308B 57413 57414 57415 57416 57425A 57426A 57427B 57428B 5744295D00 57465C 57465C 57474 57474 57474 57476 57645 57646A 57652C 57653D 57654B 57655A 57657A 57686A 57694A 57705B 57743 57744 57756 57769A 57771 57772 57779 57779 57806A 57815A 57816 57816 58259B 58311 58317E 58332G 58332H 59361B 59364 59375 59375 9011908734 9011908734 9011908734 9011908734 9011908734 9033320001 9095001006 9095001022 9095001038 9095001112 9095001112 9095001269 9095001518 9095001641 9095001832 9095001833 9095006013 9095006013 9095006013 9095006013 9095006013 9095006013 9161160814
Part # Description Qty Price
51508B - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51508-95D05

TCR10,20..ARL

 1
51509B - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51509-95D04

TCR10,20..ARL

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-95D01

TCR10,20..ARL

 1
51933C - STOPPER, SPARE WHEEL
51933-95D00

TCR1#,2#

 1
57018 - BRACKET SUB-ASSY, CROSS MEMBER FLOOR, NO.1
57018-95D00

TCR1#,2#

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95D17

TCR10,20

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95D18

TCR10,20

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-95D05

TCR1#,2#

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-95D00

TCR1#,2#

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-95D02

TCR10,20

 1
57276 - GUSSET, REAR FLOOR CROSSMEMBER, NO.4
57276-95D00

TCR10,20

 1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-95D00

TCR1#,2#

 1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-95D00

TCR1#,2#

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57413-95D03

TCR1#,2#..RHD

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95D02

TCR1#,2#..RHD

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-95D00

TCR1#,2#

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-95D00

TCR1#,2#

 1
57426A - PLATE, REAR STEP, FRONT LH
57426-95D00

TCR1#,2#..RHD

 1
57428B - PLATE, REAR STEP, REAR LH
57428-95D00

TCR1#,2#..RHD

 1
57474 - PLATE, BELT ANCHOR, NO.1
57474-95D02

TCR2#..ARL

FRONT

 2
57474-95D04

TCR1#,2#..ARL

REAR

 1
57474 - PLATE, BELT ANCHOR, NO.1
57474-95D02

TCR2#..ARL

FRONT

 2
57474-95D04

TCR1#,2#..ARL

REAR

 1
57474 - PLATE, BELT ANCHOR, NO.1
57474-95D02

TCR2#..ARL

FRONT

 2
57474-95D04

TCR1#,2#..ARL

REAR

 1
57645 - REINFORCEMENT, REAR SIDE MEMBER, RH
57645-95D01

TCR10,20

 1
57646A - REINFORCEMENT, REAR SIDE MEMBER, LH
57646-95D01

TCR10,20

 1
57652C - MEMBER, REAR FLOOR CROSS, NO.1
57652-95D02

TCR1#,2#

 1
57653D - MEMBER, REAR FLOOR CROSS, NO.2
57653-95D01

TCR1#,2#

 1
57654B - MEMBER, REAR FLOOR CROSS, NO.3
57654-95D02

TCR1#,2#

 1
57655A - MEMBER, REAR FLOOR CROSS, NO.4
57655-95D03

TCR10,20

 1
57686A - BRACKET, FUEL TANK MOUNTING, REAR RH
57686-95D00

TCR1#,2#

 1
57694A - REINFORCEMENT, FUEL TANK SUPPORT, NO.2
57694-95D00

TCR1#,2#

 1
57705B - REINFORCEMENT SUB-ASSY, REAR ABSORBER MOUNTING, RH
57705-95D04

TCR10,20

 1
57743 - BRACKET, UPPER CONTROL LINK, INNER RH
57743-95D00

TCR10,20

 1
57744 - BRACKET, UPPER CONTROL LINK, INNER LH
57744-95D00

TCR10,20

 1
57756 - PLATE, REAR FLOOR NO.2 CROSSMEMBER
57756-95D00

TCR10,20

 2
57769A - REINFORCEMENT, UPPER CONTROL LINK BRACKET
57769-95D00

TCR10,20

 2
57771 - PLATE, REAR SPRING, RH
57771-95D01

TCR10,20

 1
57772 - PLATE, REAR SPRING, LH
57772-95D01

TCR10,20

 1
57779 - RETAINER, UPPER CONTROL LINK, UPPER
57779-95D00

TCR10,20

 2
57779 - RETAINER, UPPER CONTROL LINK, UPPER
57779-95D00

TCR10,20

 2
57816 - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
57808-95D01

TCR2#..ARL

 1
57816 - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
57808-95D01

TCR2#..ARL

 1
58259B - REINFORCEMENT, PARKING BRAKE CABLE, NO.1
58259-95D00

TCR10,20;TCR11,21..LHD

 1
58311 - PAN, REAR FLOOR
58311-95D15

TCR2#..ARL

 1
59361B - RETAINER, REAR SEAT, NO.1 A
59361-95D01

TCR1#,2#..RHD

 1
59364 - RETAINER, REAR SEAT, NO.1 D
59364-95D01

TCR1#,2#..RHD

 1
59375 - RETAINER, REAR SEAT, NO.4
59375-95D01

TCR10,20

 2
59375 - RETAINER, REAR SEAT, NO.4
59375-95D01

TCR10,20

 2
Common parts
57442-95D00
90119-08734
90333-20001
90950-01006
90950-01022
90950-01038
90950-01112
90950-01269
90950-01518
90950-01641
90950-01832
90950-01833
90950-06013
91611-60814
