TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9906)

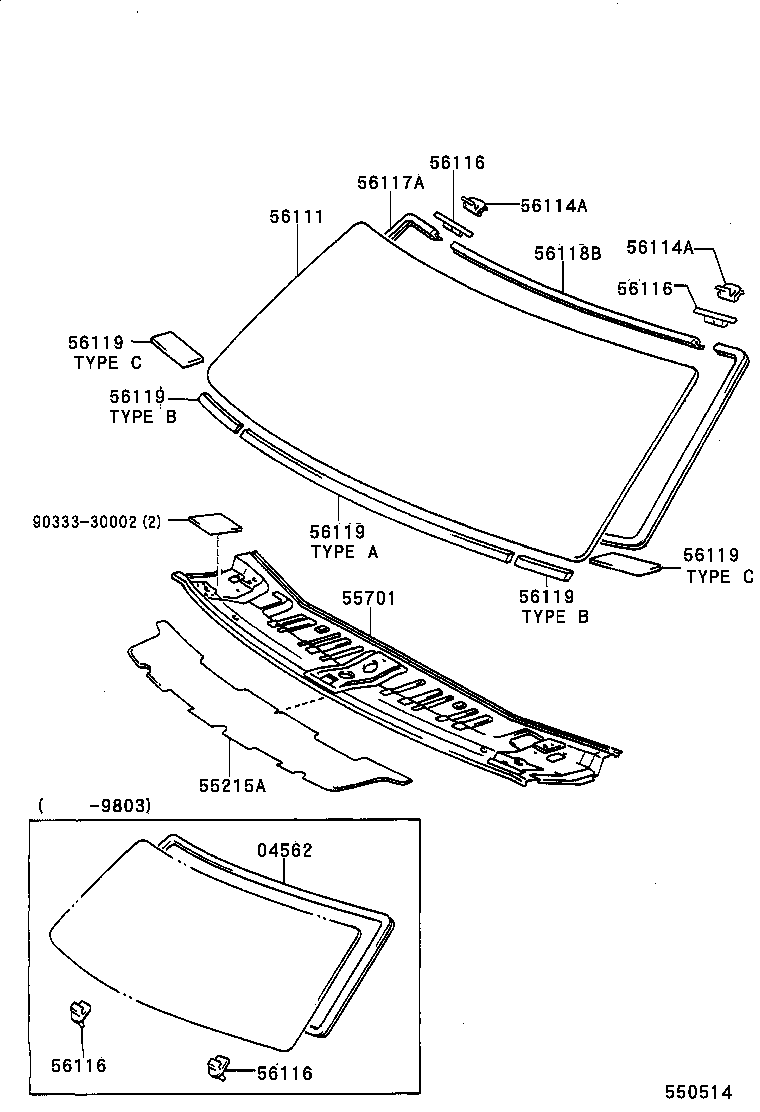

Click highlighted areas on diagram

diagram 04562 55215A 55701 56111 56114A 56114A 56116 56116 56116 56116 56117A 56118B 56119 56119 56119 56119 56119 9033330002
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-28020

TCR1#,2#

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-95D00

TCR1#,2#

 1
55701 - PANEL SUB-ASSY, COWL
55701-95D03

TCR1#,2#..RHD

 1
56111 - GLASS, WINDSHIELD
56111-95D00

TCR10,20;TCR11,21..W

*LAM,T=5.3

 1
56111-95D02

TCR1#,2#..ARL

*LAM,T=5.3,LIGHTGRAY

 1
56116 - SPACER, WINDSHIELD GLASS
56116-20080

TCR1#,2#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-20080

TCR1#,2#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-20080

TCR1#,2#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-20080

TCR1#,2#

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28030

TCR1#,2#

TYPE C

 2
56119-28010

TCR1#,2#

TYPE A

 1
56119-28020

TCR1#,2#

TYPE B

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28030

TCR1#,2#

TYPE C

 2
56119-28010

TCR1#,2#

TYPE A

 1
56119-28020

TCR1#,2#

TYPE B

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28030

TCR1#,2#

TYPE C

 2
56119-28010

TCR1#,2#

TYPE A

 1
56119-28020

TCR1#,2#

TYPE B

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28030

TCR1#,2#

TYPE C

 2
56119-28010

TCR1#,2#

TYPE A

 1
56119-28020

TCR1#,2#

TYPE B

 2
56119 - SEAL, WINDSHIELD GLASS
56119-28030

TCR1#,2#

TYPE C

 2
56119-28010

TCR1#,2#

TYPE A

 1
56119-28020

TCR1#,2#

TYPE B

 2
Common parts
90333-30002
