TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

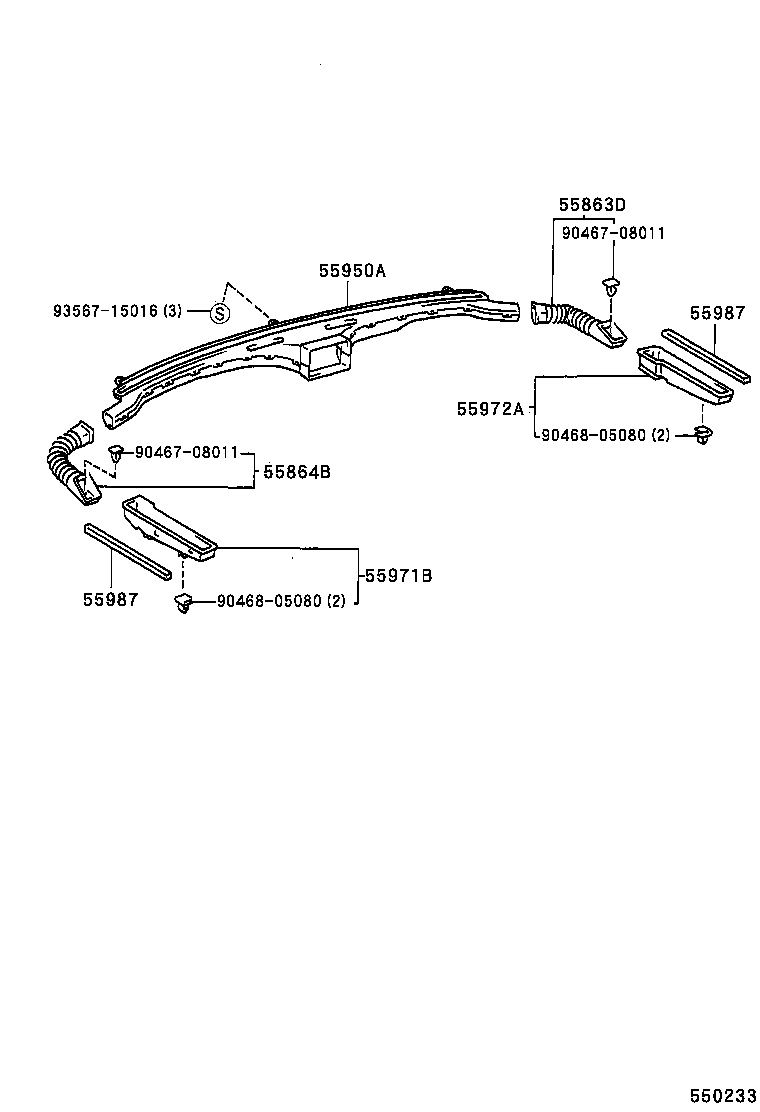

Click highlighted areas on diagram

diagram 55863D 55864B 55950A 55971B 55972A 55987 55987 9046708011 9046708011 9046805080 9046805080 9356715016
Part # Description Qty Price
55863D - BOOT, SIDE VENTILATOR DUCT
55863-95D00

TCR1#,2#

 1
55864B - BOOT, SIDE VENTILATOR DUCT, NO.2
55864-95D00

TCR1#,2#

 1
55950A - NOZZLE ASSY, DEFROSTER
55950-95D01

TCR1#,2#..RHD

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-95D00

TCR1#,2#

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-95D00

TCR1#,2#

 1
55987 - SEAL, DEFROSTER NOZZLE, NO.4
55987-95D00

TCR1#,2#

 2
55987 - SEAL, DEFROSTER NOZZLE, NO.4
55987-95D00

TCR1#,2#

 2
Common parts
90467-08011
90468-05080
93567-15016
