TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

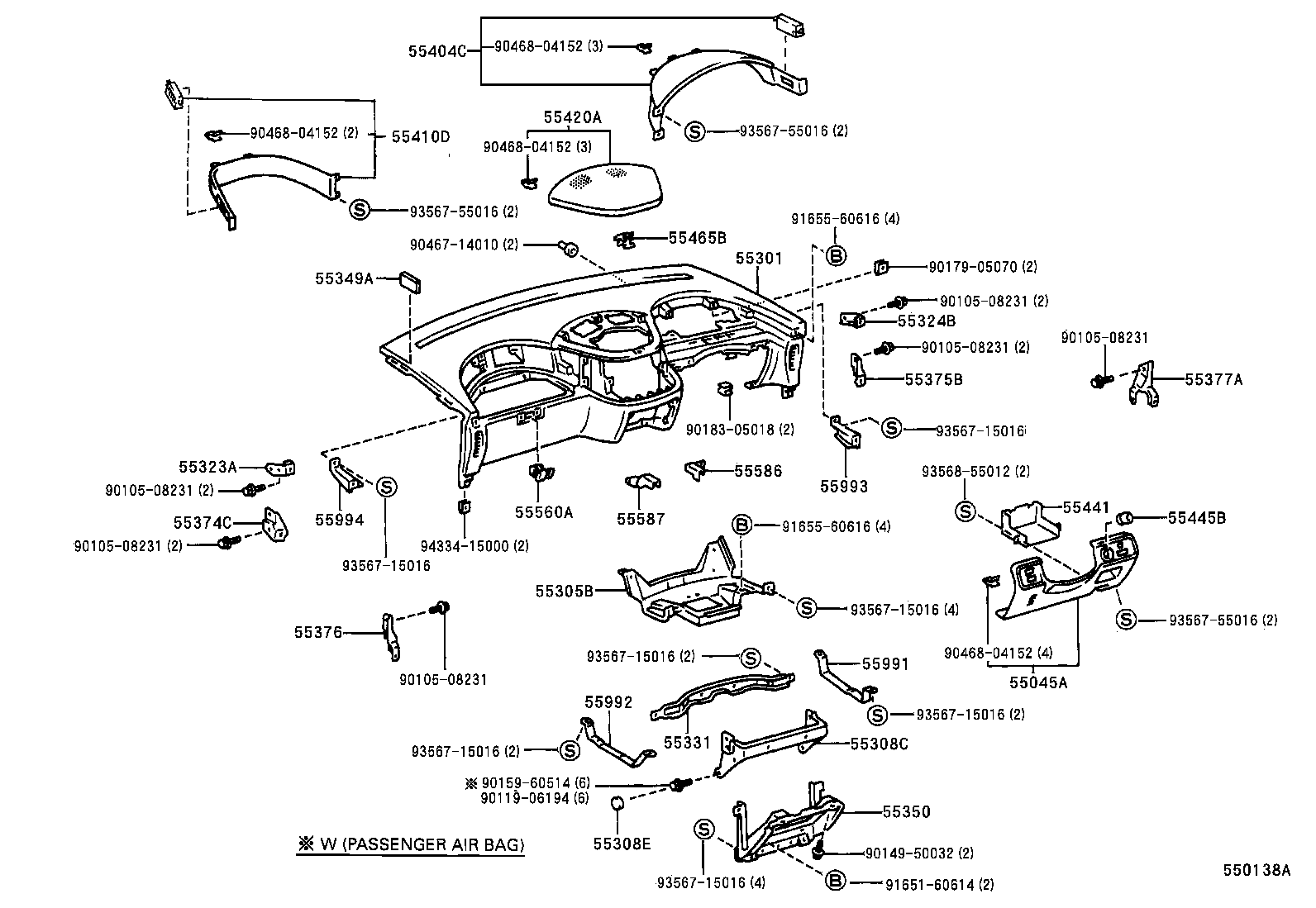

ILLUST NO. 1 OF 2(9005- )RHD

Click highlighted areas on diagram

diagram 55045A 55301 55305B 55308C 55308E 55323A 55324B 55331 55349A 55350 55374C 55375B 55376 55377A 55404C 55410D 55420A 55441 55445B 55465B 55560A 55586 55587 55991 55992 55993 55994 9010508231 9010508231 9010508231 9010508231 9010508231 9010508231 9011906194 9014950032 9015960514 9017905070 9018305018 9046714010 9046804152 9046804152 9046804152 9046804152 9165160614 9165560616 9165560616 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356755016 9356755016 9356755016 9356855012 9433415000
Part # Description Qty Price
55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
55045-95D0003

TCR1#,2#..RHD

GRAY,TRIM1#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-2804003

TCR1#,2#..RHD

GRAY,TRIM1#

 1
55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1
55305-95D01

TCR1#,2#..RHD

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-95D01

TCR1#,2#..RHD

 1
55323A - BRACKET, INSTRUMENT PANEL, NO.3
55323-95D00

TCR1#,2#

 1
55324B - BRACKET, INSTRUMENT PANEL, NO.4
55324-95D00

TCR1#,2#

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55331-95D01

TCR1#,2#..RHD

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-28010

TCR1#,2#

 2
55350 - BRACE ASSY, INSTRUMENT PANEL
55350-95D01

TCR1#,2#..RHD

 1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-95D00

TCR1#,2#

 1
55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55375-95D00

TCR1#,2#

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-95D00

TCR1#,2#

 1
55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55377-95D00

TCR1#,2#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-95D02

TCR1#,2#..RHD

 1
55410D - PANEL ASSY, INSTRUMENT CLUSTER FINISH, END
55410-95D01

TCR1#,2#..RHD

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55420-95D0103

TCR1#,2#..RHD

GRAY,TRIM1#

 1
55441 - BOX, INSTRUMENT PANEL
55441-95D01

TCR1#,2#..RHD

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-20150

TCR1#,2#

 1
55465B - KNOB, INSTRUMENT PANEL BOX LOCK
55465-28030

TCR1#,2#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-95D0003

TCR10,20

GRAY,TRIM1#

 1
55586 - SUPPORT, SHELL BOX, NO.1
55586-28010

TCR1#,2#

 1
55587 - SUPPORT, SHELL BOX, NO.2
55587-28010

TCR1#,2#

 1
55991 - BRACKET, DEFROSTER DUCT, NO.1
55991-95D00

TCR1#,2#

 1
55992 - BRACKET, DEFROSTER DUCT, NO.2
55992-95D00

TCR1#,2#

 1
Common parts
90105-08231
90119-06194
90149-50032
90159-60514
90179-05070
90183-05018
90467-14010
90468-04152
91651-60614
91655-60616
93567-15016
93567-55016
93568-55012
94334-15000

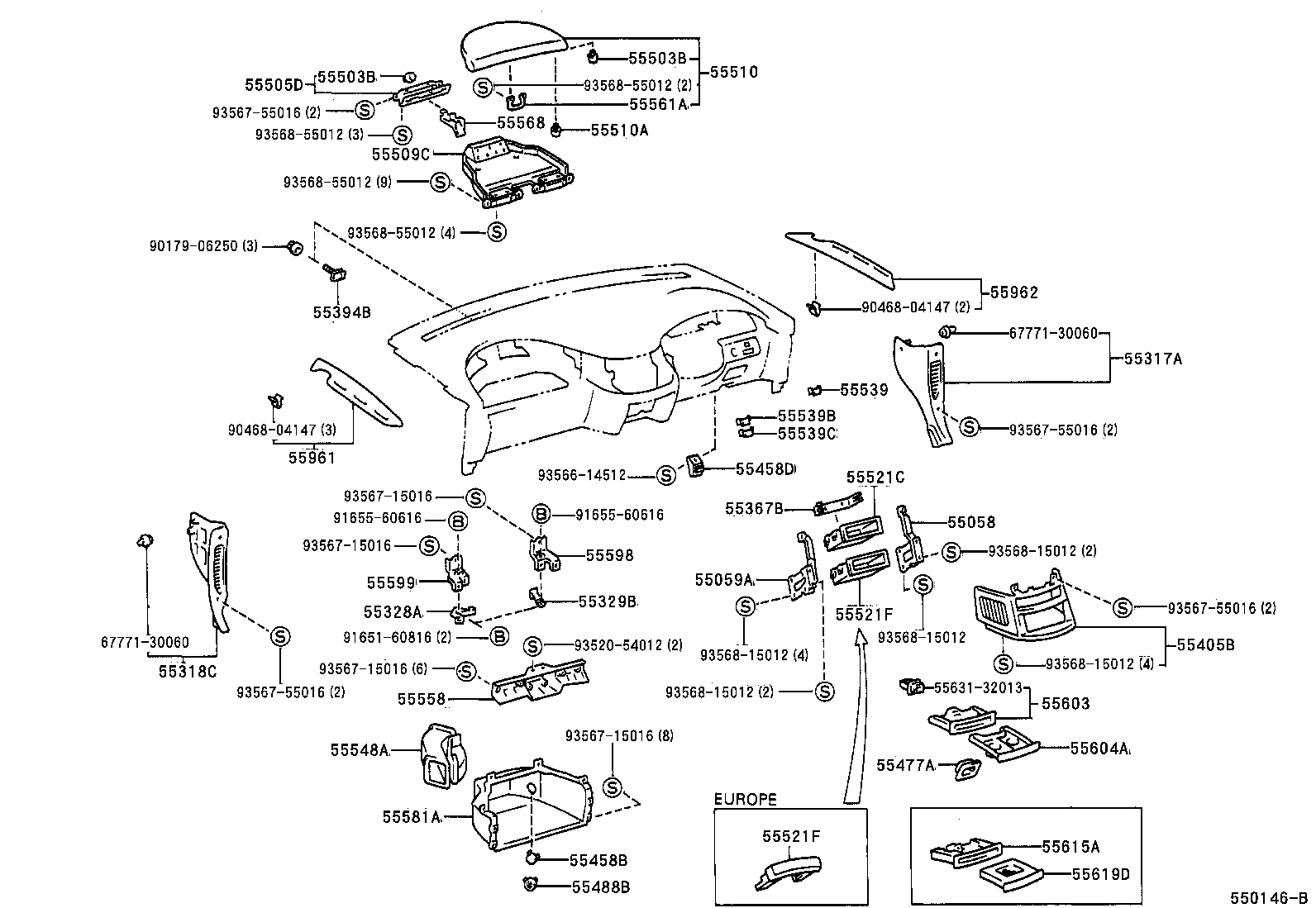

ILLUST NO. 2 OF 2(9005-9608)RHD

Click highlighted areas on diagram

diagram 55058 55059A 55317A 55318C 55328A 55329B 55367B 55394B 55405B 55458B 55458D 55477A 55488B 55503B 55503B 55505D 55509C 55510 55510A 55521C 55521F 55521F 55539 55539B 55539C 55548A 55558 55561A 55568 55581A 55598 55599 55603 55604A 55615A 55619D 5563132013 55961 55962 6777130060 6777130060 9017906250 9046804147 9046804147 9165160816 9165560616 9165560616 9352054012 9356614512 9356715016 9356715016 9356715016 9356715016 9356755016 9356755016 9356755016 9356755016 9356815012 9356815012 9356815012 9356815012 9356815012 9356855012 9356855012 9356855012 9356855012
Part # Description Qty Price
55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH
55058-95D00

TCR1#,2#..ARL,GEN,V

 1
55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH
55059-95D00

TCR1#,2#..ARL,GEN,V

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-95D0103

TCR1#,2#

GRAY,TRIM1#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-95D0103

TCR1#,2#

GRAY,TRIM1#

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-28010

TCR1#,2#..RHD

 1
55329B - STAY, INSTRUMENT PANEL, NO.4
55329-28020

TCR1#,2#..RHD

 1
55394B - BOLT, INSTRUMENT PANEL
55394-95D00

TCR1#,2#

 3
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-95D00

TCR1#,2#..ARL,GEN,V

 1
55458B - COVER, INSTRUMENT, LWR
55458-28010

TCR1#,2#..RHD

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-2802003

TCR1#,2#..RHD

GRAY,TRIM1#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-07037

TCR1#,2#

 2
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-07037

TCR1#,2#

 2
55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55505-95D00

TCR1#,2#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-95D0103

TCR1#,2#..RHD

GRAY,TRIM1#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-08025

TCR1#,2#

 3
55521F - COVER, STEREO OPENING, NO.2
55521-16030

TCR10,20..ARL

TYPE B:REFER TO ILLUSTRATION

 1
55521F - COVER, STEREO OPENING, NO.2
55521-16030

TCR10,20..ARL

TYPE B:REFER TO ILLUSTRATION

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2801003

TCR1#,2#..ARL

GRAY,TRIM1#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-2801003

TCR1#,2#

GRAY,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-2801003

TCR10,2#;TCR11..ARL;TCR11..LHD

GRAY,TRIM1#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-95D01

TCR1#,2#..RHD

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-95D01

TCR1#,2#..RHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-95D00

TCR1#,2#

 1
55581A - COMPARTMENT, GLOVE
55581-95D01

TCR1#,2#..RHD

 1
55598 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, RH
55598-95D01

TCR1#,2#..RHD

 1
55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH
55599-95D01

TCR1#,2#..RHD

 1
55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55603-95D00

TCR1#,2#..ARL,GEN,V

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-95D0003

TCR1#,2#..ARL

GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2801003

TCR1#,2#

GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2801003

TCR1#,2#

GRAY,TRIM1#

 1
Common parts
55631-32013
67771-30060
90179-06250
90468-04147
91651-60816
91655-60616
93520-54012
93566-14512
93567-15016
93567-55016
93568-15012
93568-55012
