TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

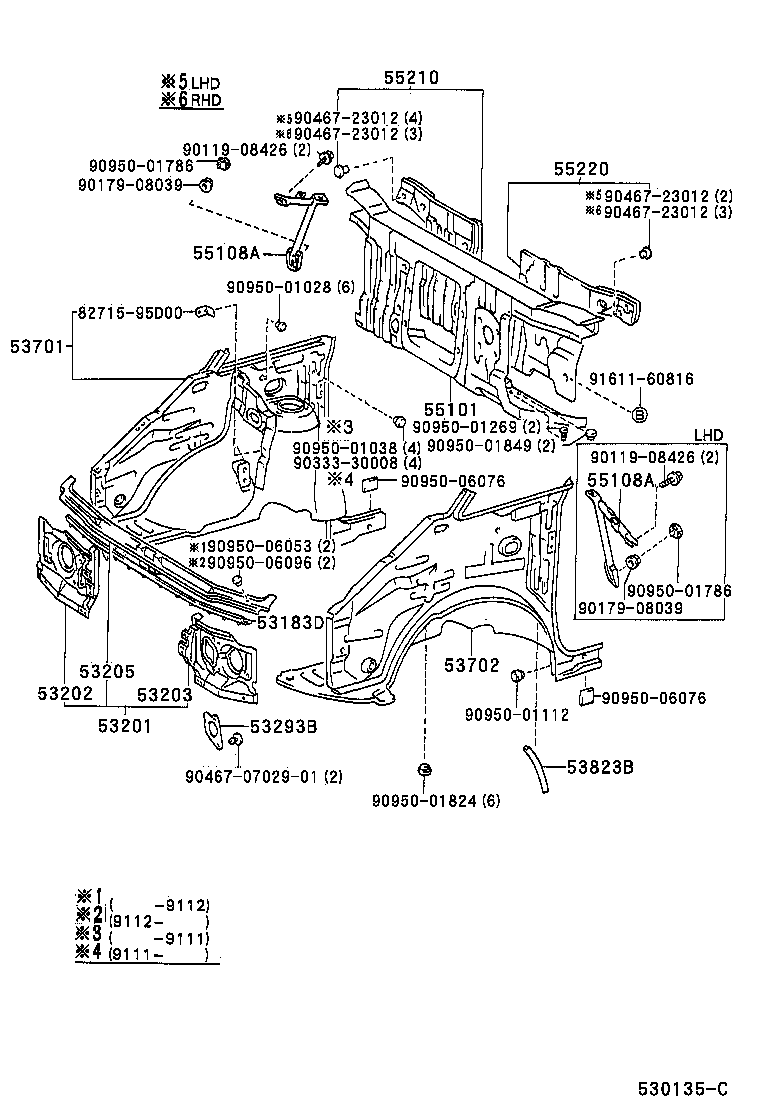

Click highlighted areas on diagram

diagram 53183D 53201 53202 53203 53205 53293B 53701 53702 53823B 55101 55108A 55108A 55210 55220 8271595D00 9011908426 9011908426 9017908039 9017908039 9033330008 904670702901 9046723012 9046723012 9046723012 9046723012 9095001028 9095001038 9095001112 9095001269 9095001786 9095001786 9095001824 9095001849 9095006053 9095006076 9095006076 9095006096 9161160816
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-28010

TCR1#,2#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-28010

TCR1#,2#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-28020

TCR1#,2#..RHD

 1
53293B - SEAL, RADIATOR SUPPORT SERVICE HOLE
53293-28010

TCR1#,2#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-95D02

TCR1#,2#..RHD

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-95D11

TCR1#,2#..RHD

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-95D01

TCR1#,2#..RHD

 1
55220 - INSULATOR ASSY, DASH PANEL, NO.2
55220-95D01

TCR1#,2#..RHD

 1
Common parts
82715-95D00
90119-08426
90179-08039
90333-30008
90467-0702901
90467-23012
90950-01028
90950-01038
90950-01112
90950-01269
90950-01786
90950-01824
90950-01849
90950-06053
90950-06076
90950-06096
91611-60816
