TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

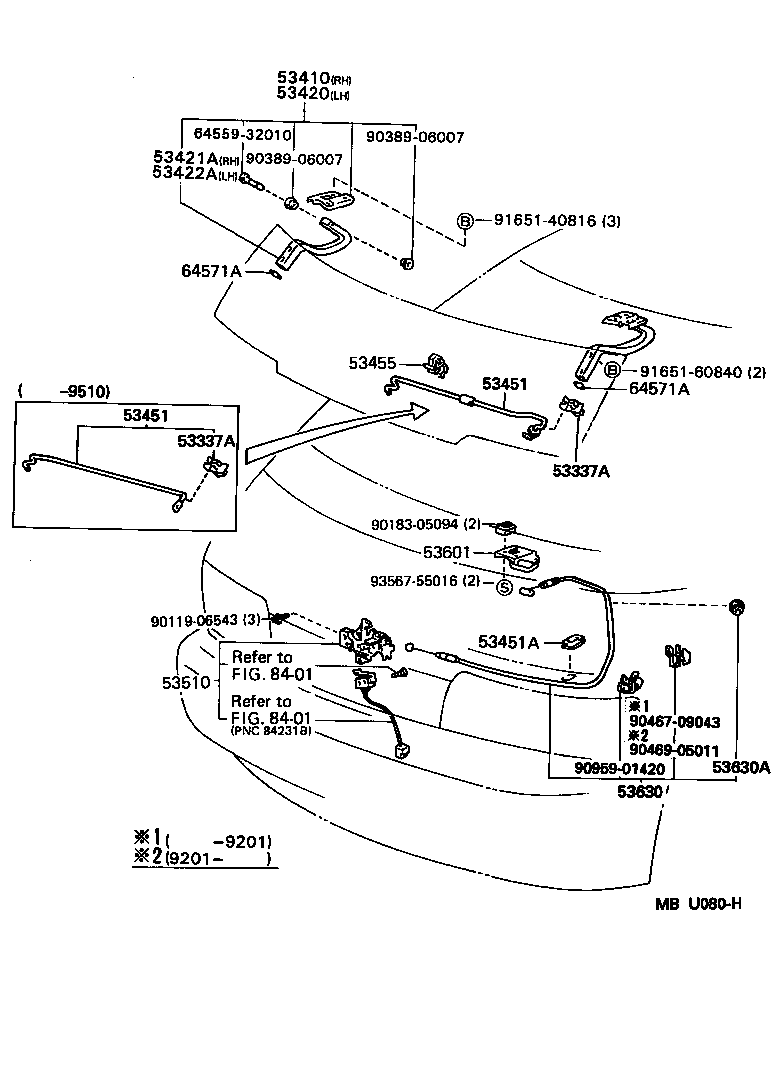

Click highlighted areas on diagram

diagram 53337A 53337A 53410 53420 53421A 53422A 53451 53451 53451A 53455 53510 53601 53630 53630A 6455932010 64571A 64571A 8401 8401 9011906543 9018305094 9038906007 9038906007 9046709043 9046905011 9095901420 9165140816 9165160840 9356755016
Part # Description Qty Price
53337A - BRACKET, HOOD STAY, LH
53337-95D01

TCR1#,2#

 1
53337A - BRACKET, HOOD STAY, LH
53337-95D01

TCR1#,2#

 1
53410 - HINGE ASSY, HOOD, RH
53410-95D00

TCR1#,2#

 1
53420 - HINGE ASSY, HOOD, LH
53420-95D00

TCR1#,2#

 1
53421A - ARM, HOOD HINGE, RH
53421-95D00

TCR1#,2#

 1
53422A - ARM, HOOD HINGE, LH
53421-95D00

TCR1#,2#

 1
53451 - ROD, HOOD SUPPORT
53450-95D00

TCR1#,2#

 1
53451 - ROD, HOOD SUPPORT
53450-95D00

TCR1#,2#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-01585

TCR1#,2#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-95D00

TCR1#,2#

 1
53510 - LOCK ASSY, HOOD
53510-95D02

TCR1#,2#..RHD

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1002033

TCR1#,2#..ARL

LIGHT GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-95D00

TCR1#,2#

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
90480-13020

TCR1#,2#

 1
64571A - COVER, HOOD HINGE
64571-30020

TCR1#,2#

 2
64571A - COVER, HOOD HINGE
64571-30020

TCR1#,2#

 2
Common parts
64559-32010
90119-06543
90183-05094
90389-06007
90467-09043
90469-05011
90959-01420
91651-40816
91651-60840
93567-55016
Linked diagrams
8401
