TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

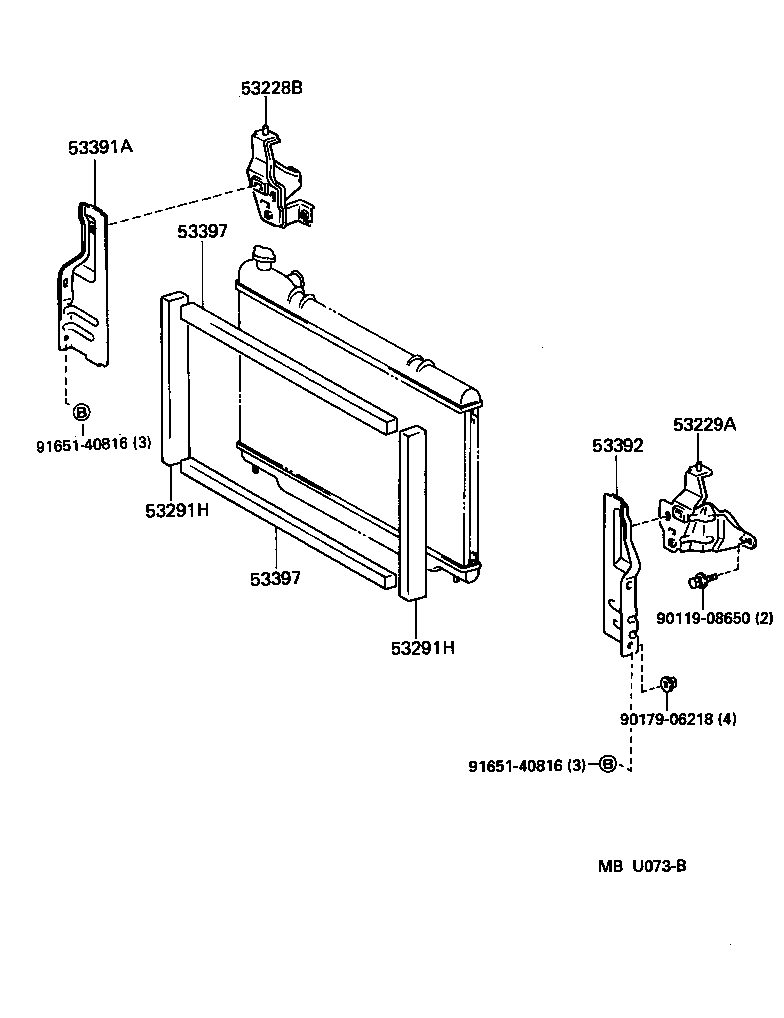

Click highlighted areas on diagram

diagram 53228B 53229A 53291H 53291H 53391A 53392 53397 53397 9011908650 9017906218 9165140816 9165140816
Part # Description Qty Price
53291H - SEAL, RADIATOR SUPPORT
53291-95D00

TCR1#,2#

 2
53291H - SEAL, RADIATOR SUPPORT
53291-95D00

TCR1#,2#

 2
53391A - BRACKET, RADIATOR SEAL, RH
53391-95D00

TCR1#,2#

 1
53392 - BRACKET, RADIATOR SEAL, LH
53392-95D00

TCR1#,2#

 1
53397 - SEAL, RADIATOR, UPPER
53397-95D00

TCR1#,2#

 2
53397 - SEAL, RADIATOR, UPPER
53397-95D00

TCR1#,2#

 2
Common parts
90119-08650
90179-06218
91651-40816
