TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

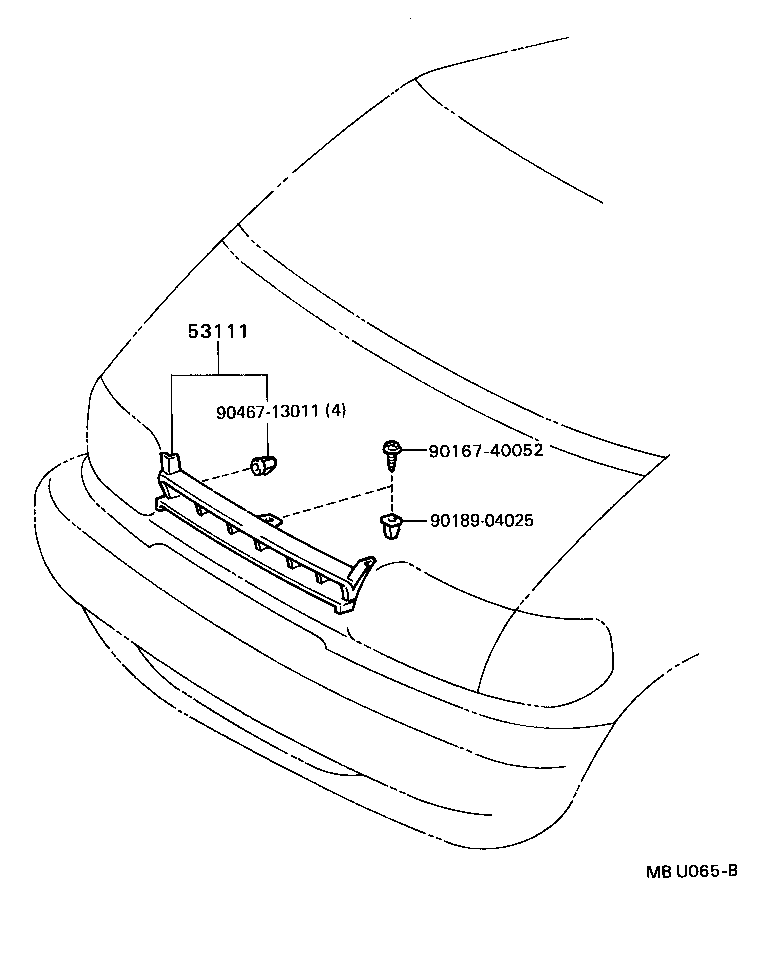

Click highlighted areas on diagram

diagram 53111 9016740052 9018904025 9046713011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-95D0004

TCR10,20

LIGHT BLUE M M,8G2

 1
53100-95D0008

TCR10,20

WHITE,041

 1
53100-95D0024

TCR10,20

DARK GREENISH BLUE M,8H4

 1
53100-95D0007

TCR10,20

GREENISH SILVER M M,6L3

 1
53100-95D0014

TCR10,20

BLUE M,8H3

 1
53100-95D0002

TCR10,20

DEEP RED MICA,3H8

 1
53100-95D0034

TCR10,20

BLUEISH GRAY M,8H5

 1
Common parts
90167-40052
90189-04025
90467-13011
