TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

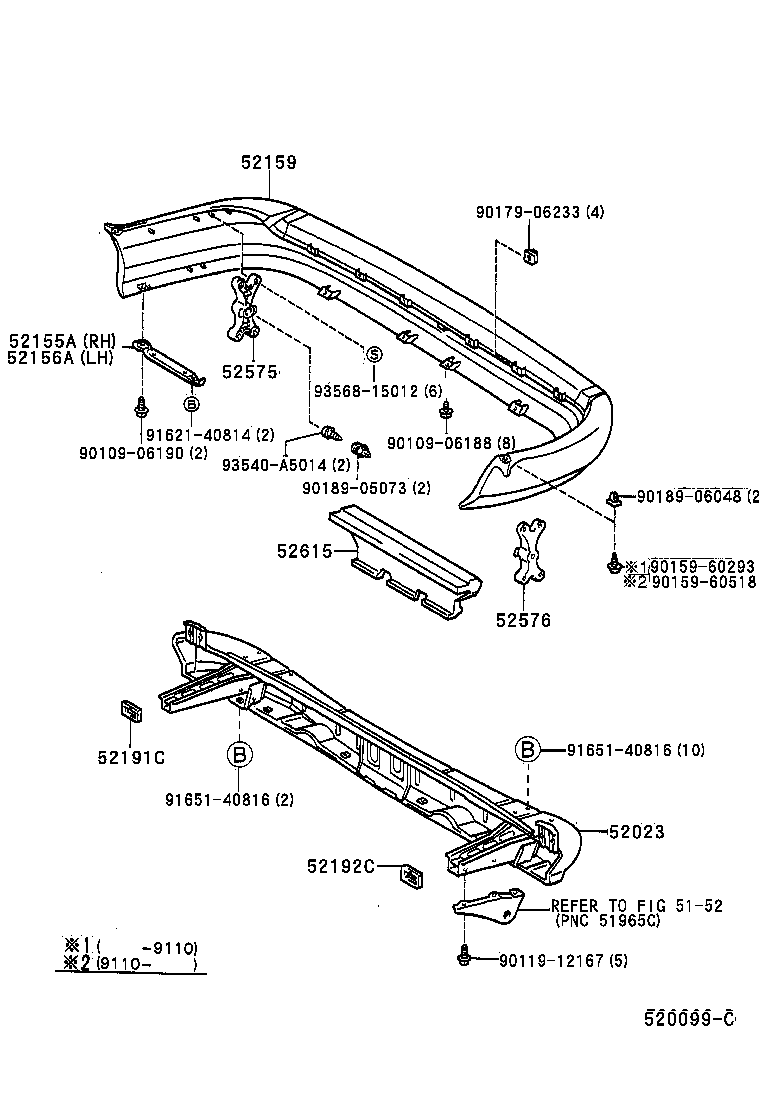

Click highlighted areas on diagram

diagram 5152 52023 52155A 52156A 52159 52191C 52192C 52575 52576 52615 9010906188 9010906190 9011912167 9015960293 9015960518 9017906233 9018905073 9018906048 9162140814 9165140816 9165140816 93540A5014 9356815012
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-95D01

TCR1#,2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-95D00

TCR1#,2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-95D00

TCR1#,2#

 1
52159 - COVER, REAR BUMPER
52159-95D0203

TCR1#,2#

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
52159-95D0213

TCR10,20

WARM GRAY,3H8

 1
52191C - SEAL, REAR BUMPER ARM, RH
52191-95D00

TCR1#,2#

 1
52192C - SEAL, REAR BUMPER ARM, LH
52191-95D00

TCR1#,2#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-95D00

TCR1#,2#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52575-95D00

TCR1#,2#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-95D00

TCR1#,2#

 1
Common parts
90109-06188
90109-06190
90119-12167
90159-60293
90159-60518
90179-06233
90189-05073
90189-06048
91621-40814
91651-40816
93540-A5014
93568-15012
Linked diagrams
5152
