TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

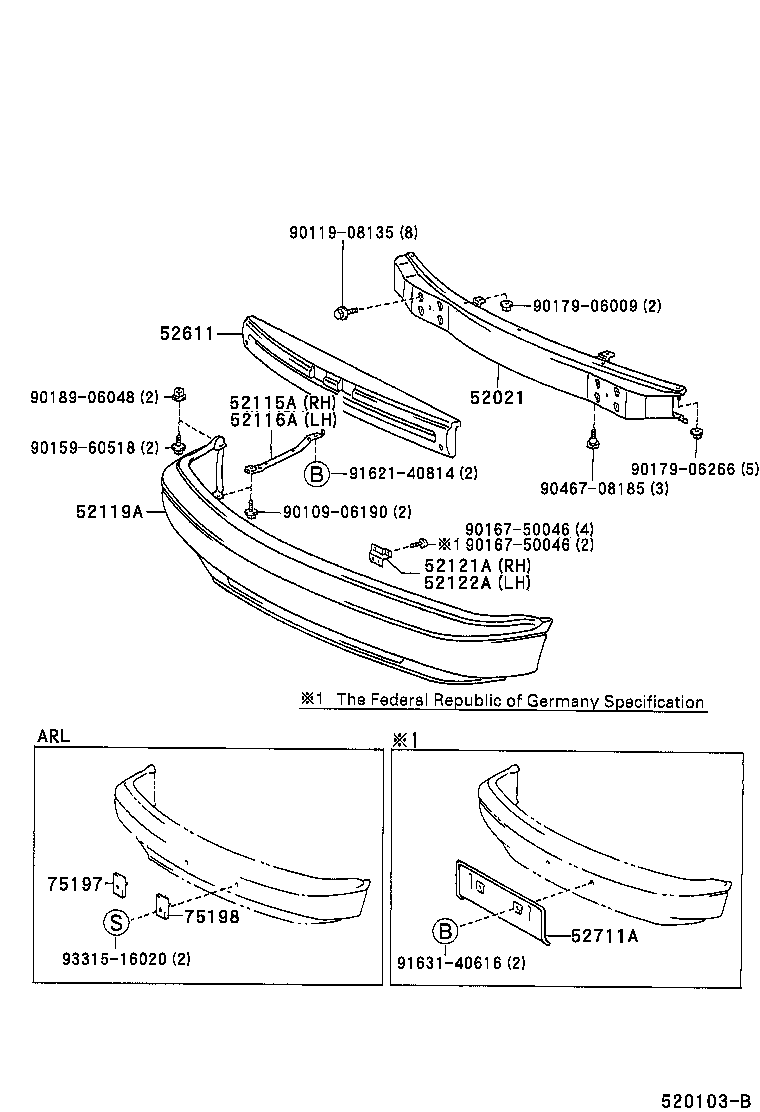

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121A 52122A 52611 52711A 75197 75198 9010906190 9011908135 9015960518 9016750046 9016750046 9017906009 9017906266 9018906048 9046708185 9162140814 9163140616 9331516020
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-95D01

TCR1#,2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-95D00

TCR1#,2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-95D00

TCR1#,2#

 1
52119A - COVER, FRONT BUMPER
52119-95D0603

TCR1#,2#

COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5

 1
52119-95D0613

TCR10,20

WARM GRAY,3H8

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-95D00

TCR1#,2#

 1
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52122-95D00

TCR1#,2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-95D00

TCR1#,2#

 1
75197 - BASE, FRONT LICENCE PLATE, RH
75197-95D00

TCR1#,2#..ARL

 1
75198 - BASE, FRONT LICENCE PLATE, LH
75198-95D00

TCR1#,2#..ARL

 1
Common parts
90109-06190
90119-08135
90159-60518
90167-50046
90179-06009
90179-06266
90189-06048
90467-08185
91621-40814
91631-40616
93315-16020
