TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9108)TCR10 ; (9005-9108)TCR2#..ARL ; (9005-9108)TCR11..ATM ; (9005-9108)TCR11

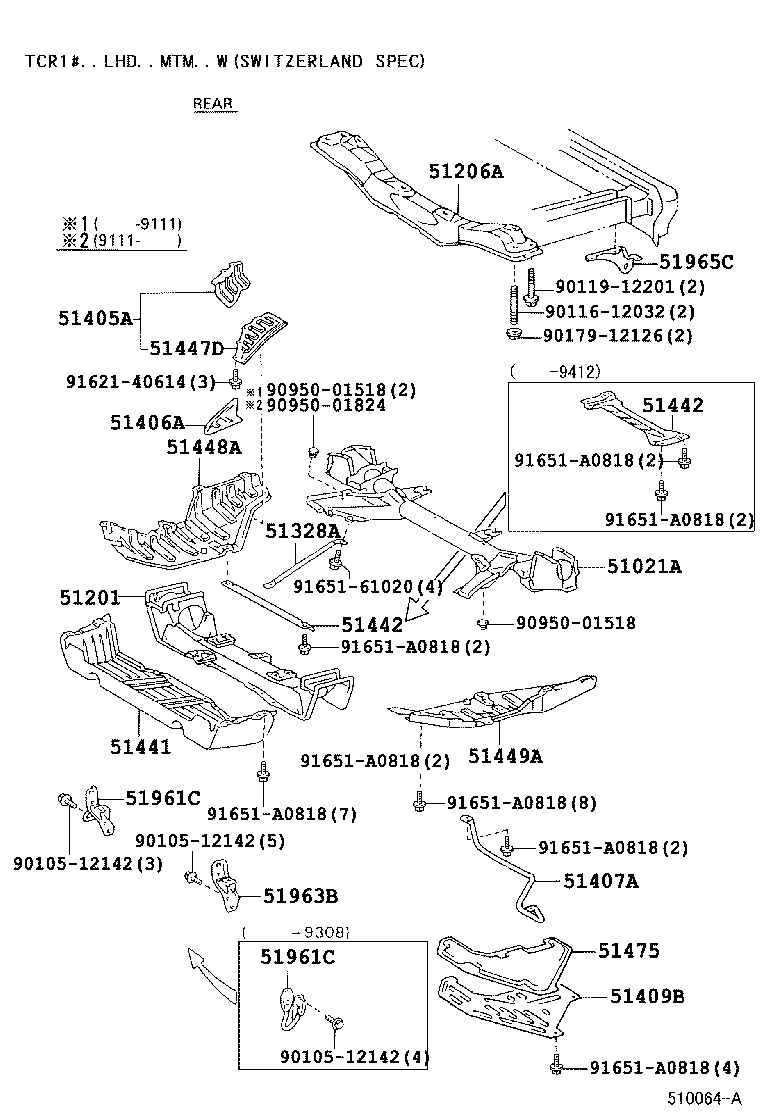

Click highlighted areas on diagram

diagram 51021A 51201 51206A 51328A 51405A 51406A 51407A 51409B 51441 51442 51442 51447D 51448A 51449A 51475 51961C 51961C 51963B 51965C 9010512142 9010512142 9010512142 9011612032 9011912201 9017912126 9095001518 9095001518 9095001824 9162140614 9165161020 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818 91651A0818
Part # Description Qty Price
51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT
51021-95D01

TCR2#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-95D05

TCR2#..ARL

 1
51328A - SUPPORT, FRONT SUSPENSION MEMBER, FRONT
51328-95D00

TCR1#,2#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-95D01

TCR1#,2#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-95D01

TCR1#,2#

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-95D01

TCR1#,2#

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-95D00

TCR11..ATM;TCR10,2#..ARL;TCR11..MTM..ARL

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51449-95D01

TCR1#,2#

 1
51961C - HOOK, FRONT
51961-95D00

TCR1#,2#

 2
51961C - HOOK, FRONT
51961-95D00

TCR1#,2#

 2
51965C - HOOK, REAR
51965-95D00

TCR1#,2#

 2
Common parts
90105-12142
90116-12032
90119-12201
90179-12126
90950-01518
90950-01824
91621-40614
91651-61020
91651-A0818
