TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR10,20

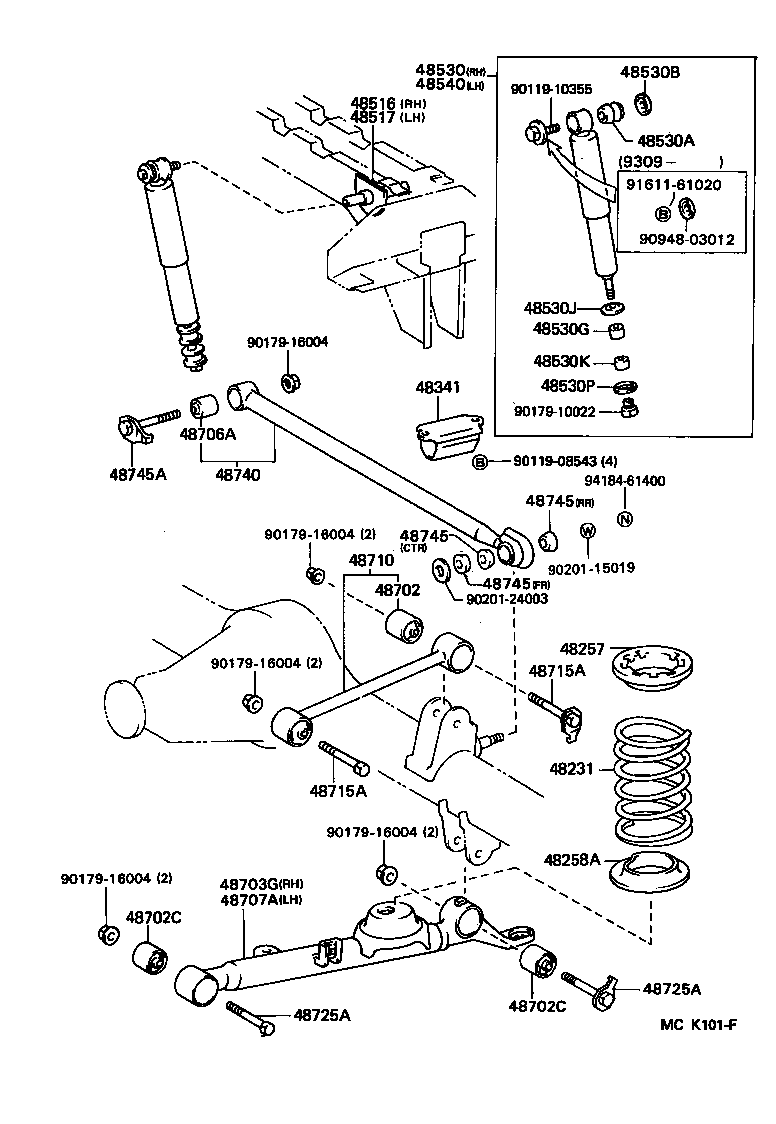

Click highlighted areas on diagram

diagram 48231 48257 48258A 48341 48516 48517 48530 48530A 48530B 48530G 48530J 48530K 48530P 48540 48702 48702C 48702C 48703G 48706A 48707A 48710 48715A 48715A 48725A 48725A 48740 48745 48745 48745 48745A 9011908543 9011910355 9017910022 9017916004 9017916004 9017916004 9017916004 9017916004 9020115019 9020124003 9094803012 9161161020 9418461400
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-28290

TCR20;TCR10..ARL

 2
48257 - INSULATOR, REAR COIL SPRING
48257-28020

TCR10,20

 2
48258A - INSULATOR, REAR COIL SPRING, LOWER
48258-28020

TCR10,20

 2
48341 - BUMPER, REAR SPRING
48341-28060

TCR10,20

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-95D00

TCR10,20

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-95D00

TCR10,20

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80419

TCR10,20..ARL,V,W

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

TCR10,20

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

TCR10,20

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90540-10004

TCR10,20

 2
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02132

TCR10,20

 2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90540-10005

TCR10,20

 2
48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02133

TCR10,20

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80419

TCR10,20..ARL,V,W

 1
48702 - BUSH SUB-ASSY, UPPER CONTROL ARM
48702-28080

TCR10,20

 4
48702C - BUSH SUB-ASSY, LOWER CONTROL ARM
48702-28110

TCR10,20

 4
48702C - BUSH SUB-ASSY, LOWER CONTROL ARM
48702-28110

TCR10,20

 4
48703G - ARM SUB-ASSY, LOWER CONTROL, RH
48703-28050

TCR10,20

 1
48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48706-35010

TCR10,20

 1
48707A - ARM SUB-ASSY, LWR CONTROL, LH
48707-28050

TCR10,20

 1
48710 - ARM ASSY, UPPER CONTROL
48710-28070

TCR10,20

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-16040

TCR10,20

*16-1.5PX90-30

 2
90105-16034

TCR10,20

*16-1.5PX95-30

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-16040

TCR10,20

*16-1.5PX90-30

 2
90105-16034

TCR10,20

*16-1.5PX95-30

 2
48725A - BOLT(FOR LOWER CONTROL ARM)
90105-16040

TCR10,20

*16-1.5PX90-30

 2
90105-16034

TCR10,20

*16-1.5PX95-30

 2
48725A - BOLT(FOR LOWER CONTROL ARM)
90105-16040

TCR10,20

*16-1.5PX90-30

 2
90105-16034

TCR10,20

*16-1.5PX95-30

 2
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-28060

TCR10,20

 1
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

TCR10,20

CTR

 1
90385-20001

TCR10,20

FR OR RR

 2
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

TCR10,20

CTR

 1
90385-20001

TCR10,20

FR OR RR

 2
48745 - BUSH, LATERAL CONTROL ROD
90386-20001

TCR10,20

CTR

 1
90385-20001

TCR10,20

FR OR RR

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-16035

TCR10,20

 1
Common parts
90119-08543
90119-10355
90179-10022
90179-16004
90201-15019
90201-24003
90948-03012
91611-61020
94184-61400
