TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

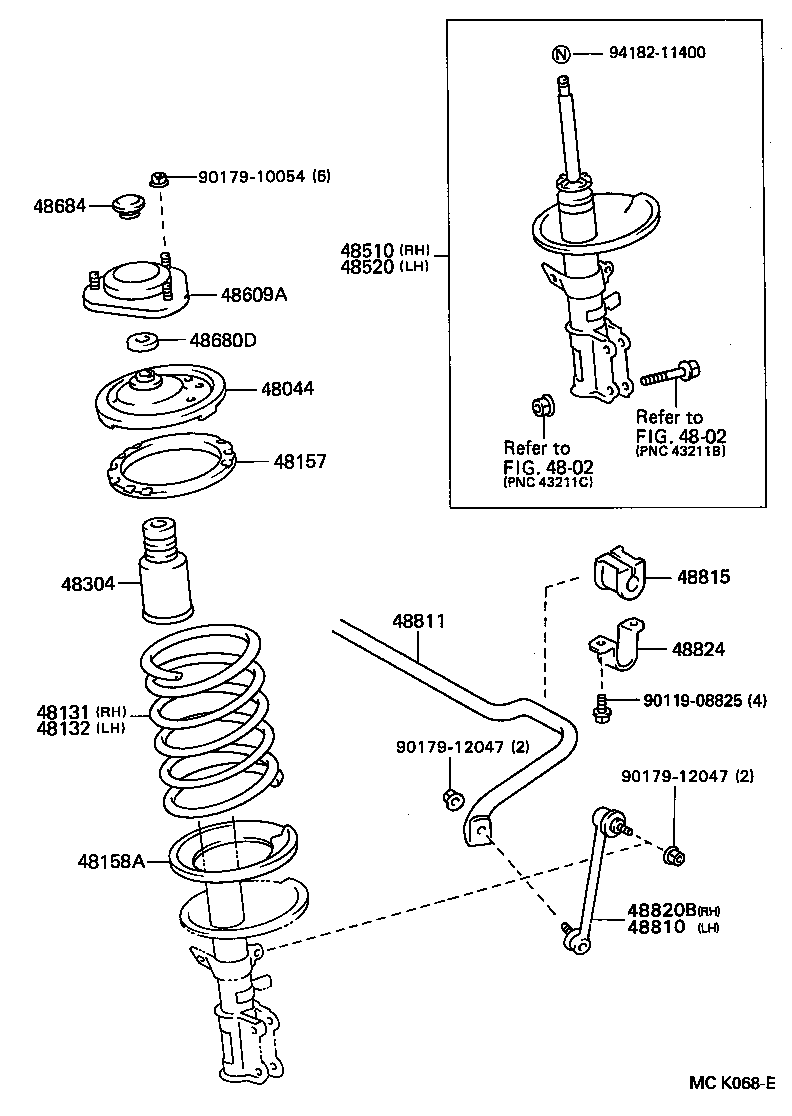

Click highlighted areas on diagram

diagram 4802 4802 48044 48131 48132 48157 48158A 48304 48510 48520 48609A 48680D 48684 48810 48811 48815 48820B 48824 9011908825 9017910054 9017912047 9017912047 9418211400
Part # Description Qty Price
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-28010

TCR1#,2#

 2
48131 - SPRING, FRONT COIL, RH
48131-28250

TCR20..ATM

COLD SPEC

 1
48131-28220

TCR20;TCR21..W

 1
48132 - SPRING, FRONT COIL, LH
48131-28290

TCR20;TCR21..W

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-28010

TCR1#,2#

 2
48158A - INSULATOR, FRONT COIL SPRING, LOWER
48158-28010

TCR1#,2#

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-28010

TCR1#,2#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-29095

TCR1#,2#

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-29025

TCR1#,2#

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-28010

TCR1#,2#

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

TCR1#,2#

 2
48684 - COVER, BEARING DUST
48684-32010

TCR1#,2#

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-28010

TCR1#,2#

 1
48811 - BAR, STABILIZER, FRONT
48811-28100

TCR1#,2#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-28040

TCR1#,2#

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-28010

TCR1#,2#

 1
48824 - BRACKET, STABILIZER, FRONT
48824-28070

TCR1#,2#

 2
Common parts
90119-08825
90179-10054
90179-12047
94182-11400
Linked diagrams
4802
