TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

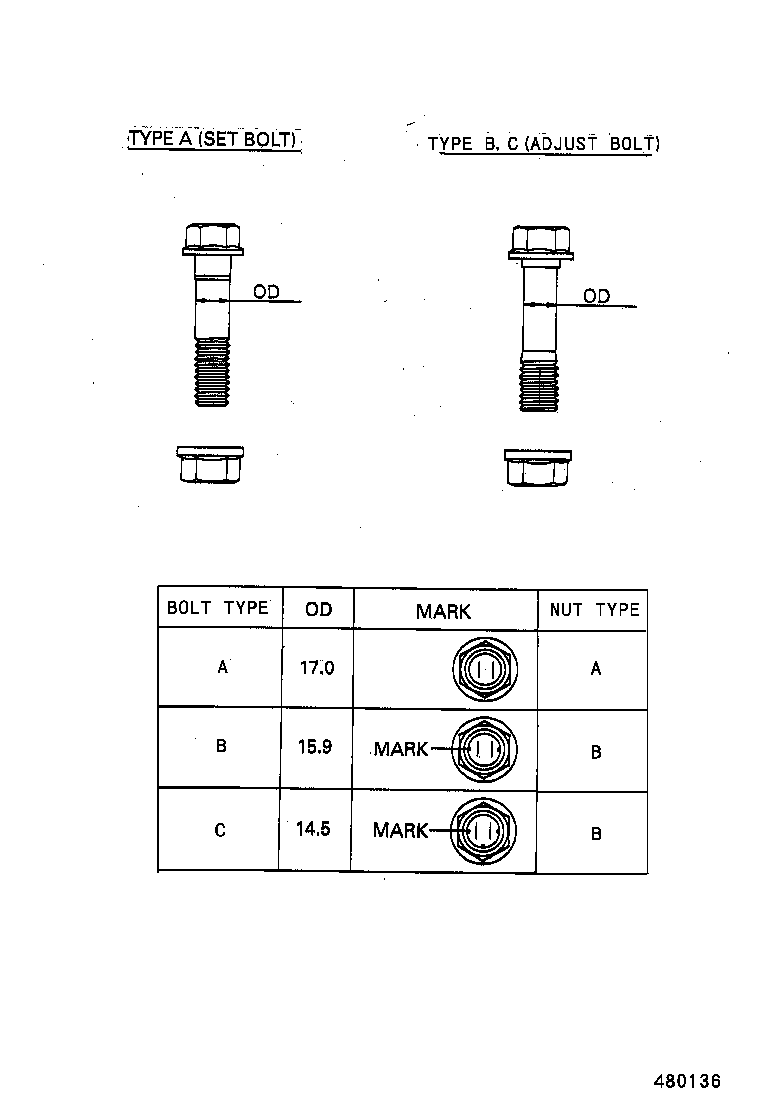

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

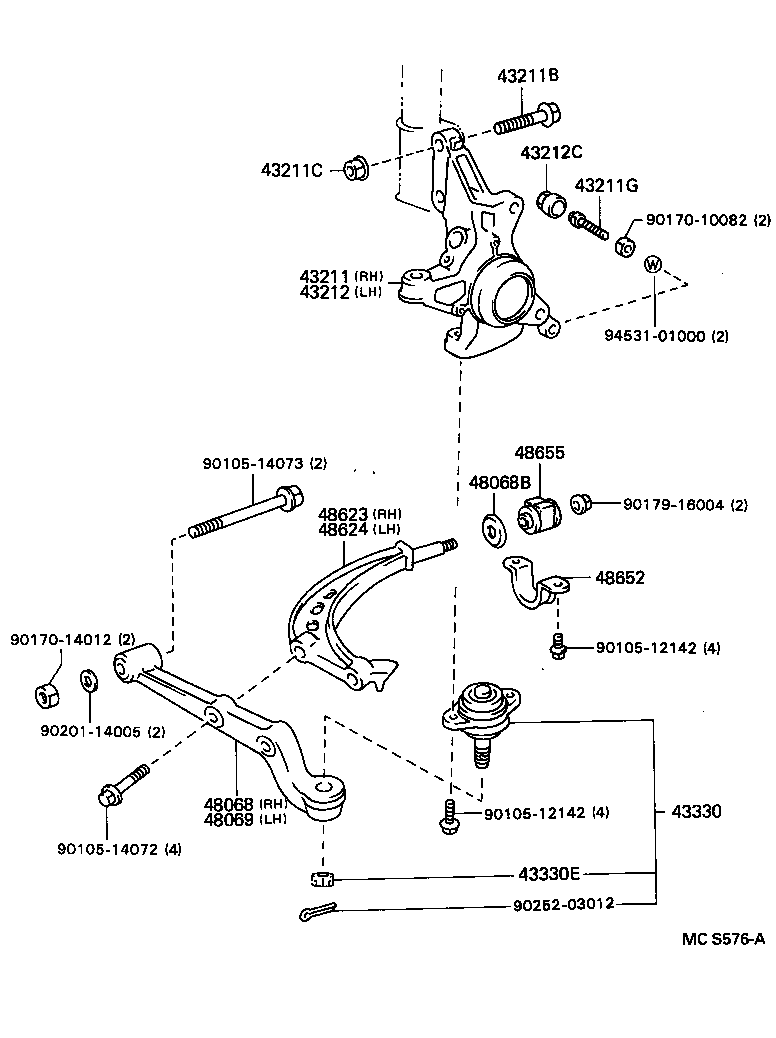

ILLUST NO. 1 OF 2(9005- )

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43211G 43212 43212C 43330 43330E 48068 48068B 48069 48623 48624 48652 48655 9010512142 9010512142 9010514072 9010514073 9017010082 9017014012 9017916004 9020114005 9025203012 9453101000
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-28040

TCR1#,2#

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-17002

TCR1#,2#

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-17001

TCR1#,2#

 4
43211G - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)
90106-10032

TCR1#,2#

 2
43212 - KNUCKLE, STEERING, LH
43212-28020

TCR1#,2#

 1
43212C - COVER, FRONT KNUCKLE STOPPER
45619-14020

TCR1#,2#

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29235

TCR1#,2#

 2
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
94146-71600

TCR1#,2#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28050

TCR1#,2#

 1
48068B - RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)
90948-02090

TCR1#,2#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28050

TCR1#,2#

 1
48623 - ARM, FRONT SUSPENSION, LOWER NO.2 RH
48623-28040

TCR1#,2#

 1
48624 - ARM, FRONT SUSPENSION, LOWER NO.2 LH
48624-28030

TCR1#,2#

 1
48652 - BRACKET, FRONT LOWER ARM
48652-20040

TCR1#,2#

 2
48655 - BUSH, LOWER ARM, NO.2
48655-28010

TCR1#,2#

 2
Common parts
90105-12142
90105-14072
90105-14073
90170-10082
90170-14012
90179-16004
90201-14005
90252-03012
94531-01000
