TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR10,20..ARL

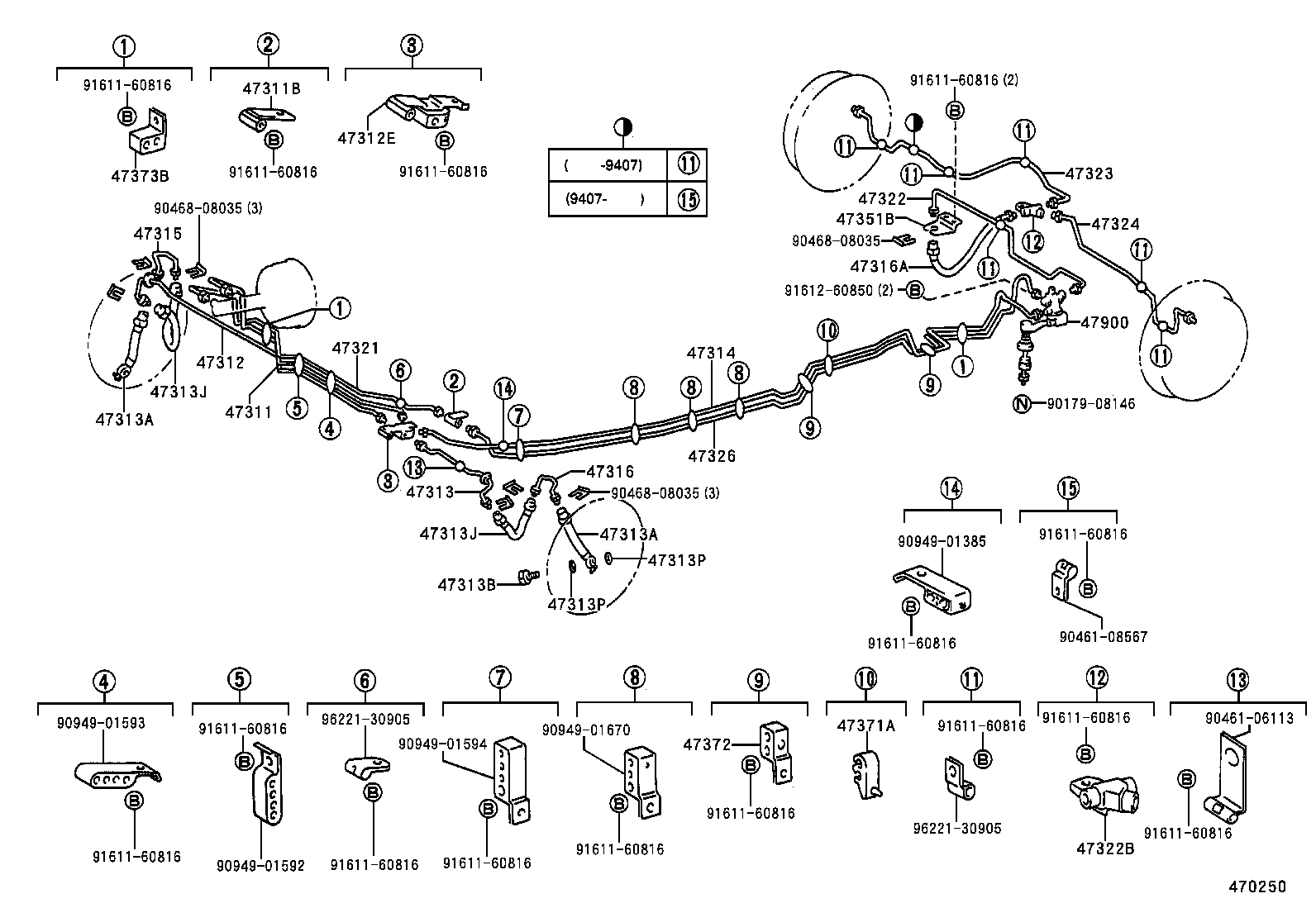

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313J 47313J 47313P 47313P 47314 47315 47316 47316A 47321 47322 47322B 47323 47324 47326 47351B 47371A 47372 47373B 47900 9017908146 9046106113 9046108567 9046808035 9046808035 9046808035 9094901385 9094901592 9094901593 9094901594 9094901670 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161260850 9622130905 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-28250

TCR1#,2#..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10006

TCR1#,2#..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28150

TCR1#,2#..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90414-10040

TCR1#,2#..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28140

TCR1#,2#..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02604

TCR1#,2#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02604

TCR1#,2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

TCR1#,2#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02618

TCR1#,2#

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02618

TCR1#,2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

TCR1#,2#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

TCR1#,2#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-28160

TCR10,20..ARL

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-28110

TCR1#,2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-28030

TCR1#,2#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02617

TCR10,20

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-28250

TCR1#,2#..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-28150

TCR10,20

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10245

TCR10,20

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28190

TCR10,20

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28120

TCR10,20

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-28091

TCR10,20

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-28060

TCR10,20

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-28010

TCR1#,2#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-25010

TCR1#,2#

 3
47373B - CLAMP, BRAKE TUBE, NO.3
47373-25010

TCR1#,2#

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-28280

TCR10,20

 1
Common parts
90179-08146
90461-06113
90461-08567
90468-08035
90949-01385
90949-01592
90949-01593
90949-01594
90949-01670
91611-60816
91612-60850
96221-30905

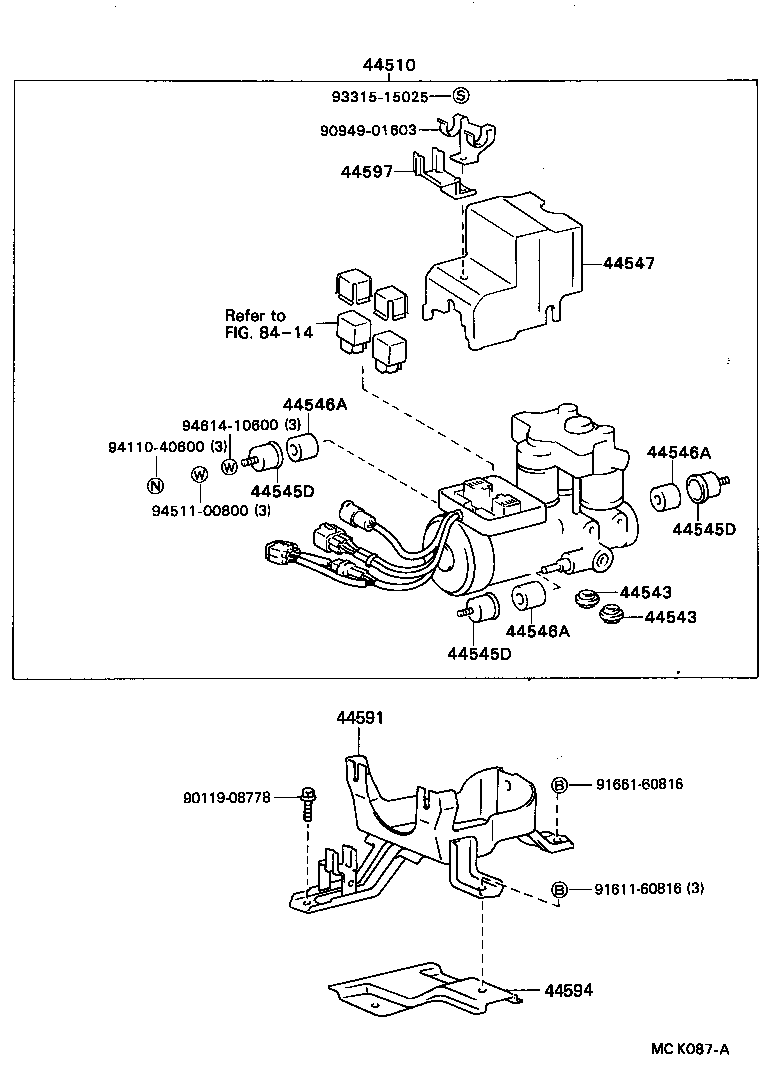

ILLUST NO. 2 OF 2(9005-9308)
