TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

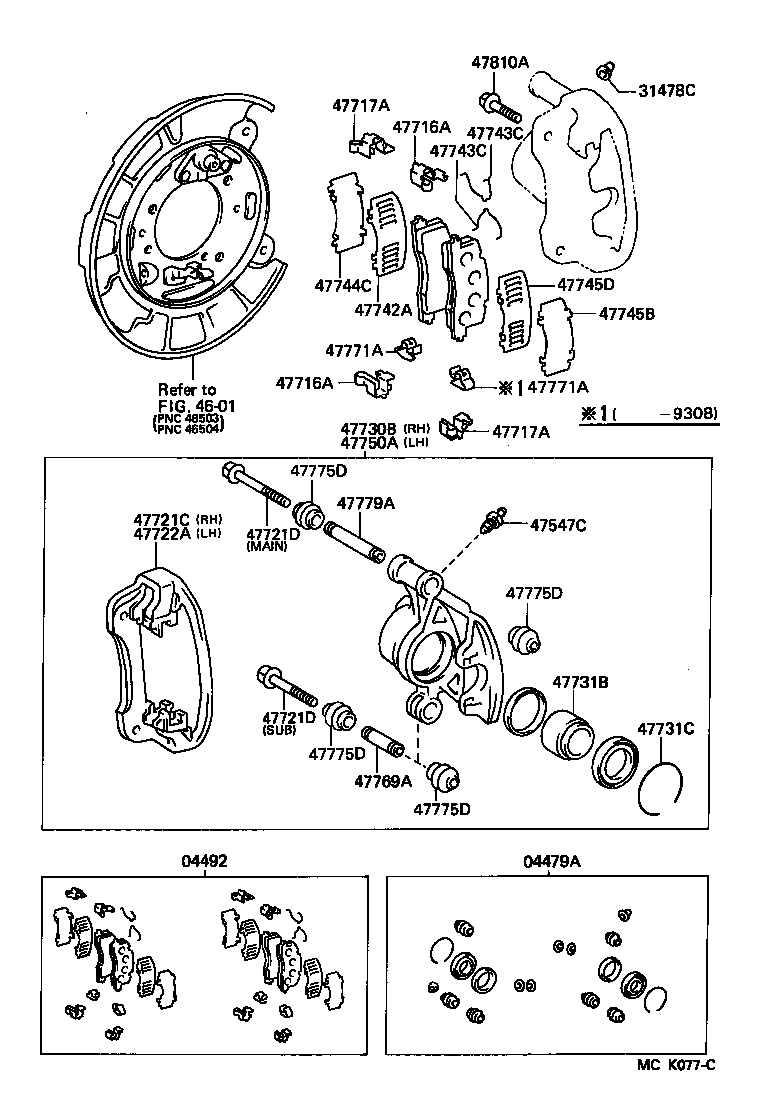

ILLUST NO. 1 OF 2(9005- )

Click highlighted areas on diagram

diagram 04479A 04492 31478C 4601 47547C 47716A 47716A 47717A 47717A 47721C 47721D 47721D 47722A 47730B 47731B 47731C 47742A 47743C 47743C 47744C 47745B 47745D 47750A 47769A 47771A 47771A 47775D 47775D 47775D 47775D 47779A 47810A
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-28070

TCR1#,2#

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

TCR1#,2#

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12030

TCR1#,2#

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32031

TCR1#,2#

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32031

TCR1#,2#

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32031

TCR1#,2#

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32031

TCR1#,2#

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-28010

TCR1#,2#

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09003

TCR1#,2#

*9-1.25PX71-25

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09003

TCR1#,2#

*9-1.25PX71-25

 2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-28010

TCR1#,2#

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-28190

TCR1#,2#

 1
47731B - PISTON, REAR DISC BRAKE
47731-28061

TCR1#,2#

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-53001

TCR1#,2#

 2
47742A - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47744-28110

TCR1#,2#

 2
47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47743-32010

TCR1#,2#

 4
47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47743-32010

TCR1#,2#

 4
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47745-28050

TCR1#,2#

 2
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-28050

TCR1#,2#

 2
47745D - SHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)
47744-28110

TCR1#,2#

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-28190

TCR1#,2#

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-12030

TCR1#,2#

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-12050

TCR1#,2#

 4
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-12050

TCR1#,2#

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-32010

TCR1#,2#

 8
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-32010

TCR1#,2#

 8
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-32010

TCR1#,2#

 8
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-32010

TCR1#,2#

 8
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-16010

TCR1#,2#

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-12185

TCR10,20

 4
Linked diagrams
4601

ILLUST NO. 2 OF 2(9005- )

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-28010

TCR1#,2#

 1
