TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9607)TCR10,20

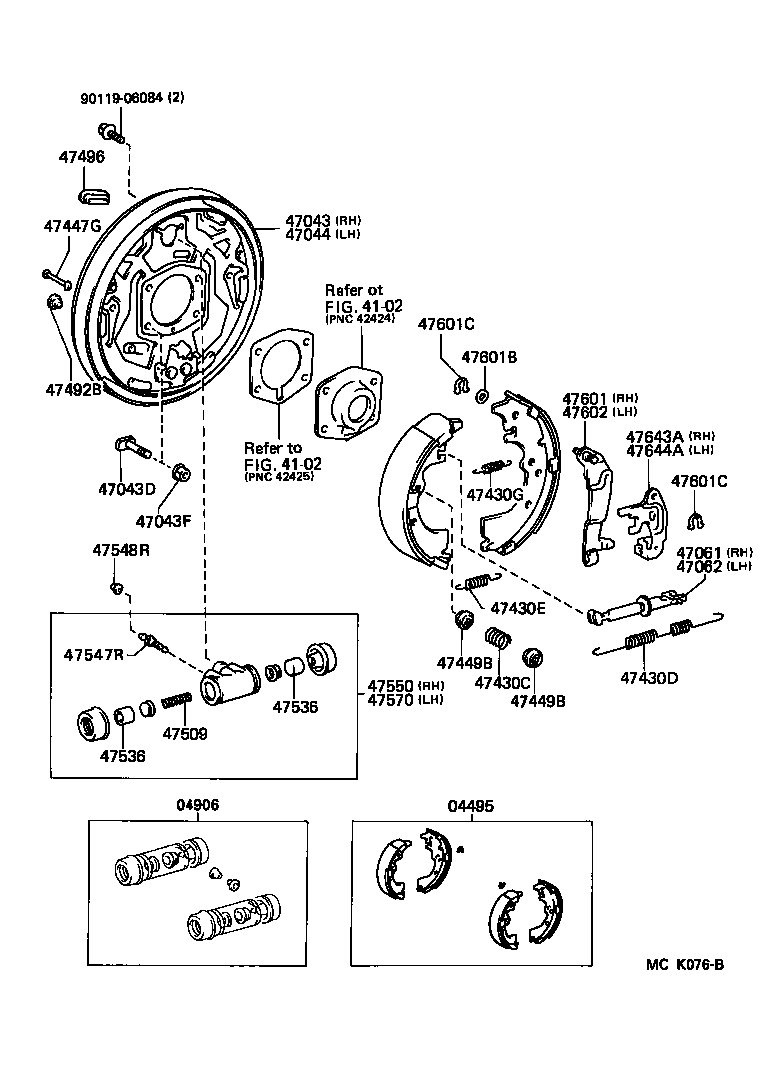

Click highlighted areas on diagram

diagram 04495 04906 4102 4102 47043 47043D 47043F 47044 47061 47062 47430C 47430D 47430E 47430G 47447G 47449B 47449B 47492B 47496 47509 47536 47536 47547R 47548R 47550 47570 47601 47601B 47601C 47601C 47602 47643A 47644A 9011906084
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-28071

TCR10,20

 1
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-30100

TCR1#,2#..ARL

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-28070

TCR10,20

 1
47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-28010

TCR10,20

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90179-10150

TCR10,20

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-28070

TCR10,20

 1
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47062-30030

TCR10,20

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47061-30030

TCR10,20

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20756

TCR1#,2#

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23003

TCR10,20

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23030

TCR10,20

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12480

TCR10,20

 2
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-30020

TCR1#,2#

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

TCR1#,2#

 8
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

TCR1#,2#

 8
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47492-28010

TCR1#,2#

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

TCR1#,2#

 2
47509 - SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON
47509-20010

TCR1#,2#..ARL

 2
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22020

TCR1#,2#..ARL

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22020

TCR1#,2#..ARL

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-27020

TCR1#,2#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

TCR1#,2#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-28020

TCR1#,2#..ARL

 1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-28020

TCR1#,2#..ARL

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-28010

TCR10,20

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-09001

TCR10,20

T=0.2

 1
90564-09186

TCR10,20

T=0.9

 1
90564-09002

TCR10,20

T=0.4

 1
90564-09185

TCR10,20

T=0.6

 1
90564-09003

TCR10,20

T=0.5

 1
90564-09184

TCR10,20

T=0.3

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

TCR10,20

T=1.2,ADJUSTING LEVER SIDE

 2
90213-07010

TCR10,20

T=1.6,SHOE LEVER SIDE

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

TCR10,20

T=1.2,ADJUSTING LEVER SIDE

 2
90213-07010

TCR10,20

T=1.6,SHOE LEVER SIDE

 2
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-28010

TCR10,20

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644-30010

TCR10,20

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47643-30010

TCR10,20

 1
Common parts
90119-06084
Linked diagrams
4102
