TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9005- )RHD

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730C 44730F 44758 44763A 44772B 44773F 44774 9046110739 9046110739 9046110739 9046110751 9094901624 9161160814 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

TCR1#,2#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

TCR1#,2#

 5
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

TCR1#,2#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28100

TCR1#,2#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-28020

TCR1#,2#..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-28070

TCR1#,2#..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
90445-17039

TCR1#,2#..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28120

TCR1#,2#

 1
Common parts
90461-10739
90461-10751
90949-01624
91611-60814
91651-40816

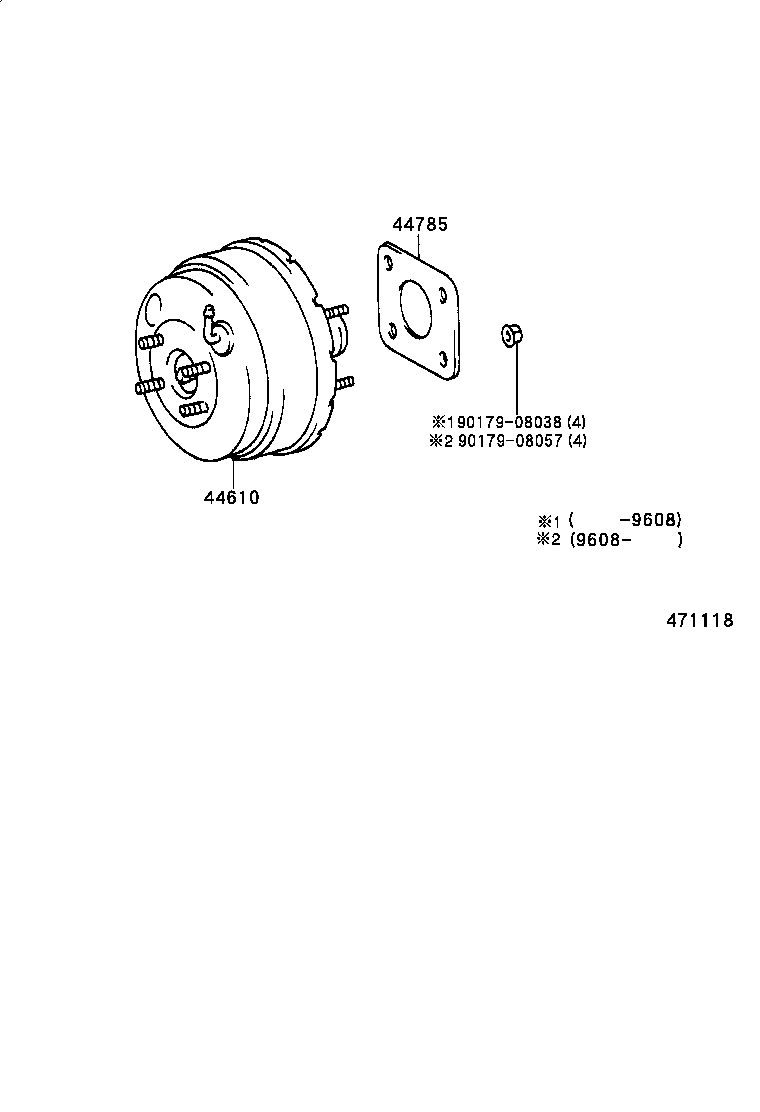

ILLUST NO. 1 OF 2(9005- )

Click highlighted areas on diagram

diagram 44610 44785 9017908038 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-28750

TCR1#,2#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

TCR1#,2#

 1
Common parts
90179-08038
90179-08057
