TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608)

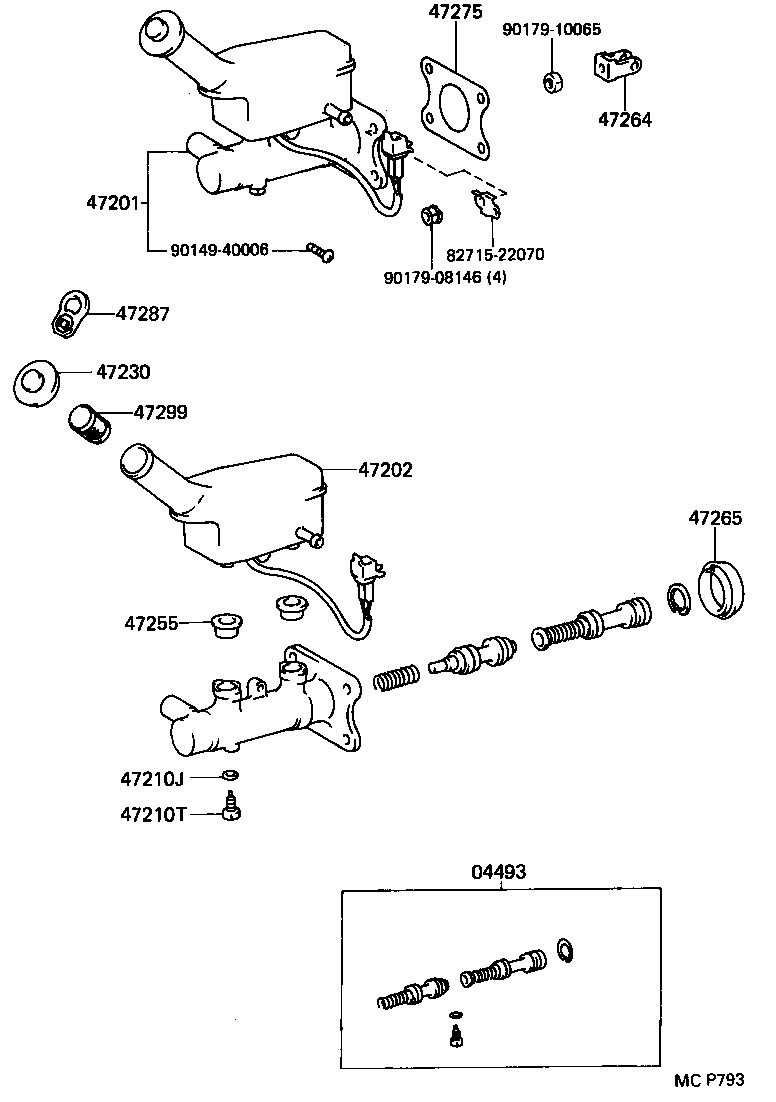

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47264 47265 47275 47287 47299 8271522070 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-28080

TCR1#,2#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-28190

TCR1#,2#..ATM

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47203-28140

TCR1#,2#..ATM

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

TCR1#,2#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

TCR1#,2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28020

TCR1#,2#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

TCR1#,2#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-50010

TCR1#,2#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

TCR1#,2#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

TCR1#,2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

TCR1#,2#

 1
Common parts
82715-22070
90149-40006
90179-08146
90179-10065
