TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608) ; (9608- )MTM ; (9608- )LHD..ATM

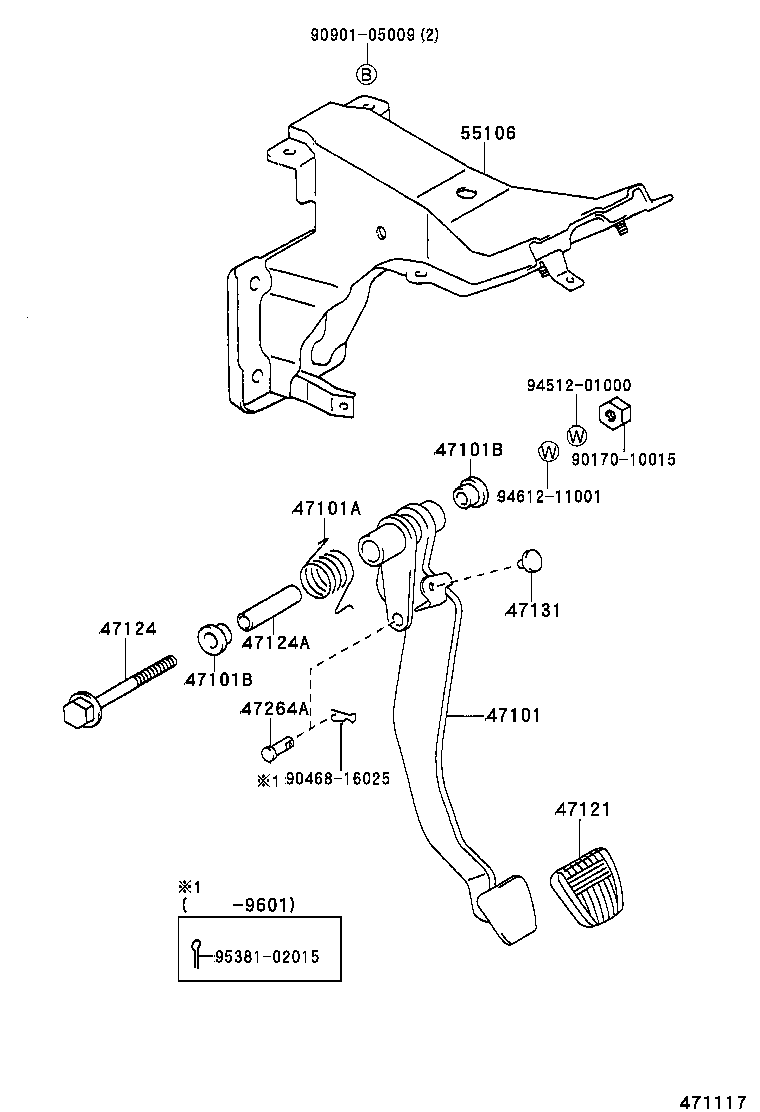

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9017010015 9046816025 9090105009 9451201000 9461211001 9538102015
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-28140

TCR1#,2#..RHD..ATM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35036

TCR1#,2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TCR1#,2#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TCR1#,2#

 2
47121 - PAD, BRAKE PEDAL
47121-12011

TCR1#,2#..ATM

 1
47124 - SHAFT, BRAKE PEDAL
90101-10043

TCR1#,2#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10002

TCR1#,2#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06032

TCR1#,2#

 1
47264A - PIN(FOR PUSH ROD)
90240-10037

TCR1#,2#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-95D01

TCR1#,2#..RHD

 1
Common parts
90170-10015
90468-16025
90901-05009
94512-01000
94612-11001
95381-02015
