TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

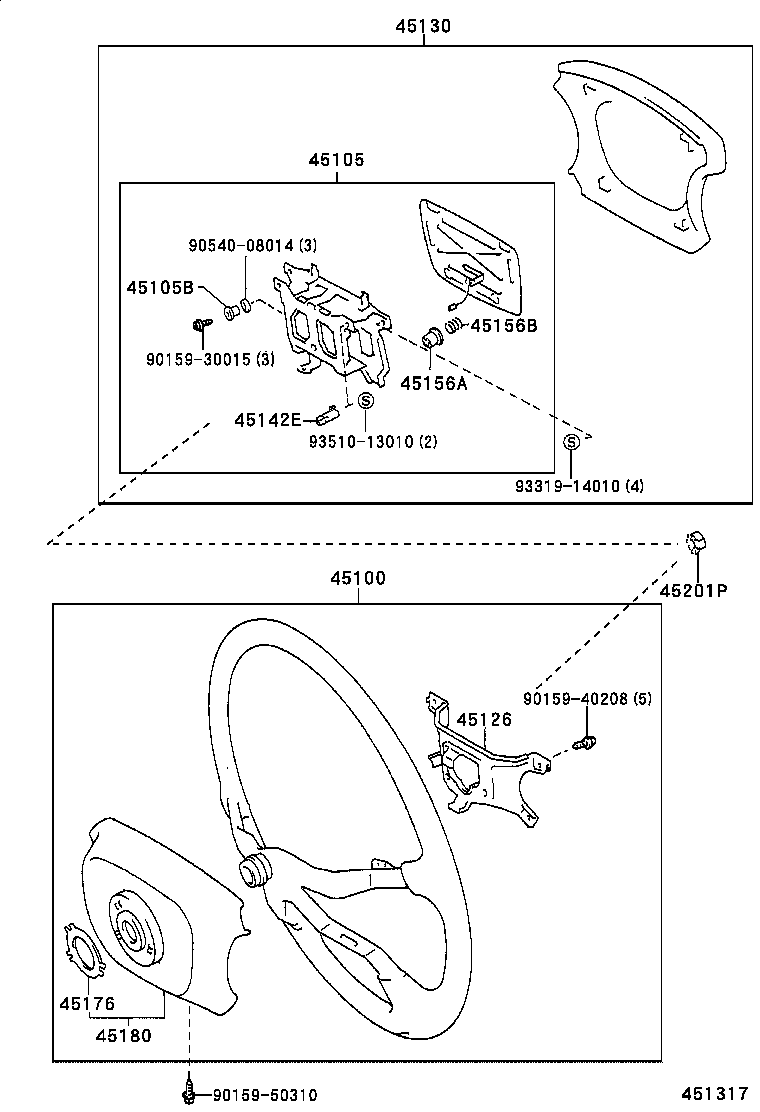

Click highlighted areas on diagram

diagram 45100 45105 45105B 45126 45130 45142E 45156A 45156B 45176 45180 45201P 9015930015 9015940208 9015950310 9054008014 9331914010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2805003

TCR1#,2#

4-SPOKE,URETHANE,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-28030

TCR1#,2#

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

TCR1#,2#

 3
45126 - PLATE, STEERING WHEEL PAD SET
45126-28010

TCR1#,2#

 1
45130 - BUTTON ASSY, HORN
45130-2814003

TCR10,2#;TCR11..ATM;TCR11..LHD..MTM;TCR11..MTM..ARL

GRAY,TRIM1#

 1
45142E - PIECE, HORN CONTACT
45142-20060

TCR1#,2#

 2
45156A - SEAT, HORN CONTACT SPRING SET
45156-16010

TCR1#,2#

 4
45156B - SPRING(FOR HORN CONTACT SPRING SET SEAT)
90501-07092

TCR1#,2#

 4
45176 - RING, HORN CONTACT
45176-24020

TCR1#,2#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-2803003

TCR1#,2#

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

TCR1#,2#

 1
Common parts
90159-30015
90159-40208
90159-50310
90540-08014
93319-14010
93510-13010
