TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )RHD

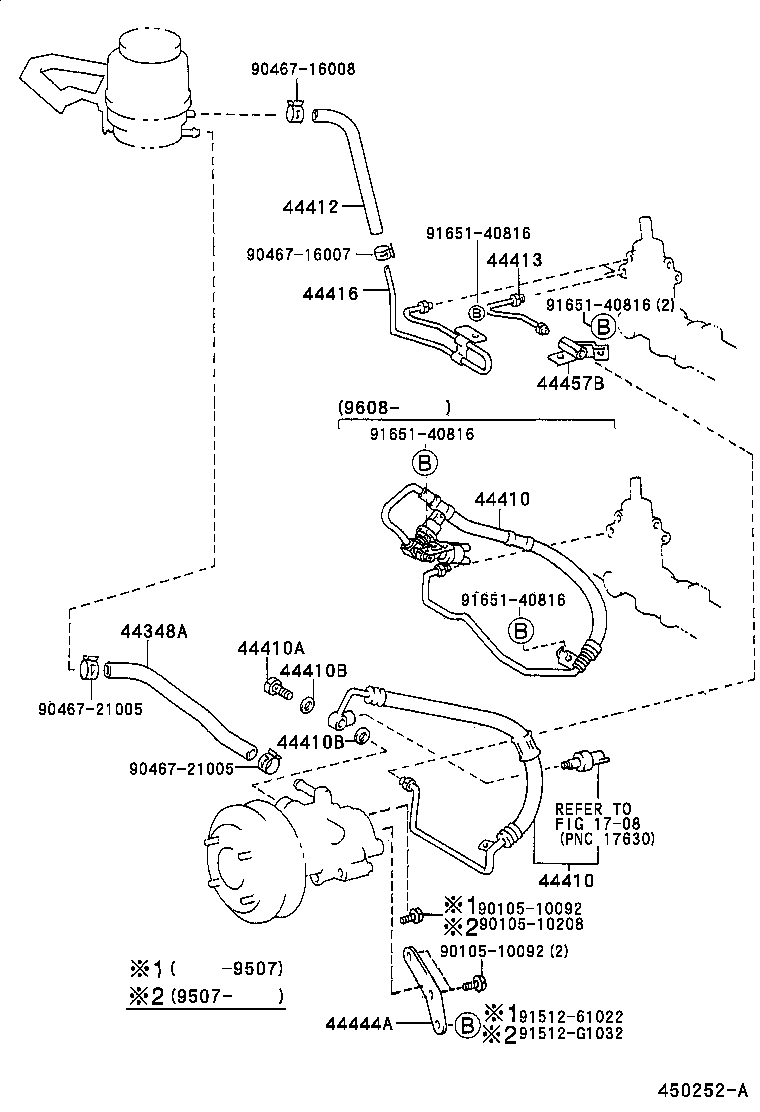

Click highlighted areas on diagram

diagram 1708 44348A 44410 44410 44410A 44410B 44410B 44412 44413 44416 44444A 44457B 9010510092 9010510092 9010510208 9046716007 9046716008 9046721005 9046721005 9151261022 91512G1032 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28120

TCR1#,2#..RHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28210

TCR1#,2#..RHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28210

TCR1#,2#..RHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

TCR1#,2#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

TCR1#,2#

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

TCR1#,2#

 2
44412 - HOSE, RETURN
44412-28170

TCR1#,2#..RHD

 1
44413 - TUBE, PRESSURE FEED, NO.1
44413-28220

TCR1#,2#..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-28150

TCR1#,2#..RHD

 1
44444A - STAY, PUMP, REAR NO.1
44444-28010

TCR1#,2#

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-28040

TCR1#,2#..RHD

 1
Common parts
90105-10092
90105-10208
90467-16007
90467-16008
90467-21005
91512-61022
91512-G1032
91651-40816
Linked diagrams
1708
