TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )RHD

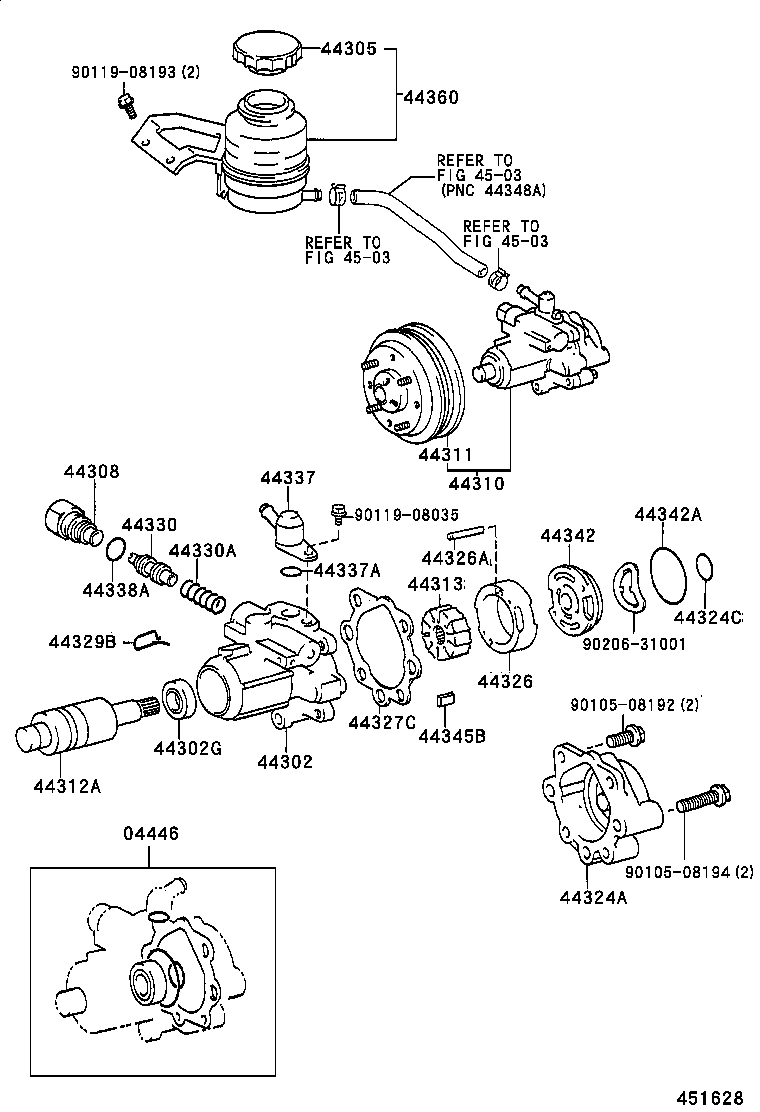

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-28010 |
TCR1#,2# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-28010 |
TCR1#,2# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17007 |
TCR1#,2# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
TCR1#,2# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-28020 |
TCR1#,2# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-28060 |
TCR1#,2#..RHD |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-28011 |
TCR1#,2# |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 44317-28030 |
TCR1#,2# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26100 |
TCR1#,2# MARK 4 |
1 | ||
| 44313-26060 |
TCR1#,2# NO MARK |
1 | ||
| 44313-26080 |
TCR1#,2# MARK 2 |
1 | ||
| 44313-26070 |
TCR1#,2# MARK 1 |
1 | ||
| 44313-26090 |
TCR1#,2# MARK 3 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-26040 |
TCR1#,2# |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-18007 |
TCR1#,2# |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-26030 |
TCR1#,2# MARK 2 |
1 | ||
| 44325-26020 |
TCR1#,2# MARK 1 |
1 | ||
| 44325-26010 |
TCR1#,2# NO MARK |
1 | ||
| 44325-26050 |
TCR1#,2# MARK 4 |
1 | ||
| 44325-26040 |
TCR1#,2# MARK 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
TCR1#,2# L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
TCR1#,2# |
1 | ||
| 44329B - WIRE, VANE PUMP BEARING | ||||
| 44329-28010 |
TCR1#,2# |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-28020 |
TCR1#,2# MARK B |
1 | ||
| 44330-28030 |
TCR1#,2# MARK C |
1 | ||
| 44330-28010 |
TCR1#,2# MARK A |
1 | ||
| 44330-28040 |
TCR1#,2# MARK D |
1 | ||
| 44330-28050 |
TCR1#,2# MARK E |
1 | ||
| 44330-28060 |
TCR1#,2# MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-11047 |
TCR1#,2# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-28030 |
TCR1#,2#..RHD |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
TCR1#,2# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
TCR1#,2# ID=19.5,OD=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26010 |
TCR1#,2# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
TCR1#,2# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26030 |
TCR1#,2# L=14.996 |
10 | ||
| 44345-26020 |
TCR1#,2# L=14.998 |
10 | ||
| 44345-26040 |
TCR1#,2# L=14.994 |
10 | ||
| 44345-26050 |
TCR1#,2# L=14.992 |
10 | ||
| 44345-26010 |
TCR1#,2# L=15.000 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-28080 |
TCR1#,2#..RHD |
1 | ||
| Common parts | ||||
| 90105-08192 | ||||
| 90105-08194 | ||||
| 90119-08035 | ||||
| 90119-08193 | ||||
| 90206-31001 | ||||
| Linked diagrams | ||||
| 4503 | ||||
