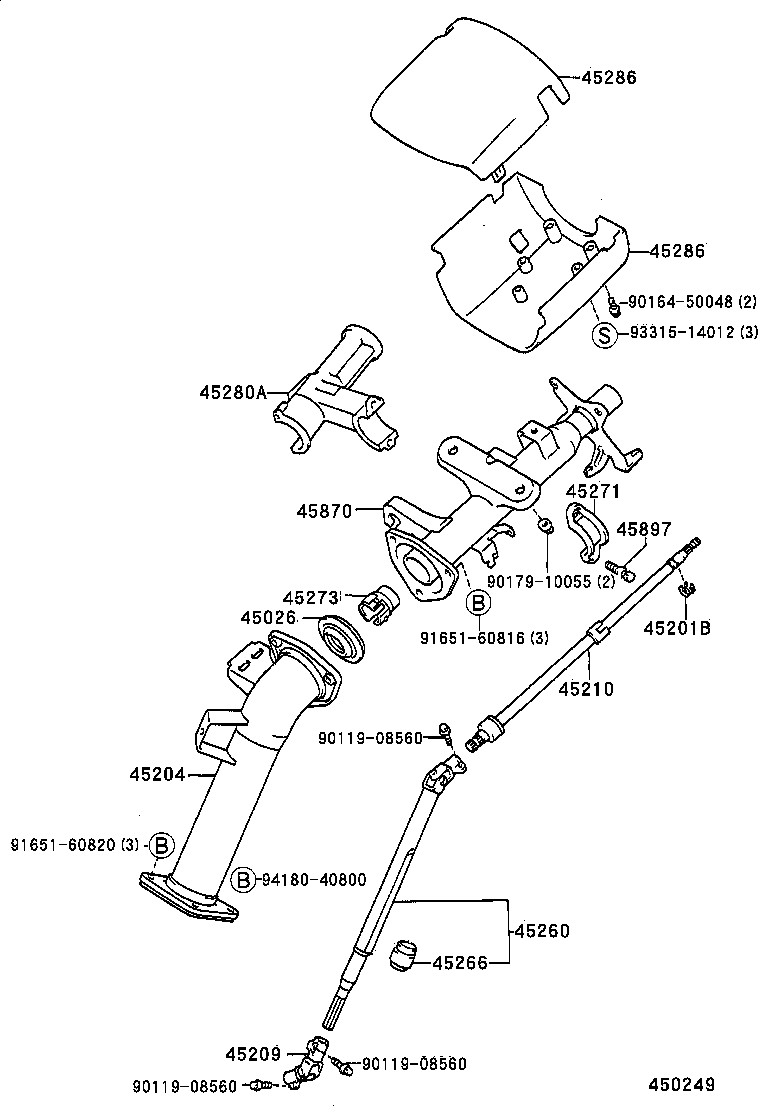

TCR20R-RFSDKQ (1990)
Toyota Previa
(9005-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-28010 |
TCR1#,2# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
TCR1#,2# T=1.20 |
2 | ||
| 90520-17042 |
TCR1#,2# T=1.20,W(TILT STEERING) |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-28030 |
TCR1#,2#..RHD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16010 |
TCR1#,2# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-28090 |
TCR1#,2# W(TILT STEERING) |
1 | ||
| 45210-28080 |
TCR1#,2# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28020 |
TCR1#,2#..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
TCR1#,2# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
TCR1#,2# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-28010 |
TCR1#,2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28180 |
TCR1#,2#..RHD |
1 | ||
| 45280-28200 |
TCR1#,2#..RHD W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2820003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,UPPER |
1 | ||
| 45286-2820005 |
TCR1#,2#..RHD..ATM GREIGE,TRIM4#,UPPER |
1 | ||
| 45287-2823003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,LOWER |
1 | ||
| 45287-2821003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,LOWER |
1 | ||
| 45286-2821003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2820003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,UPPER |
1 | ||
| 45286-2820005 |
TCR1#,2#..RHD..ATM GREIGE,TRIM4#,UPPER |
1 | ||
| 45287-2823003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,LOWER |
1 | ||
| 45287-2821003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,LOWER |
1 | ||
| 45286-2821003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-28050 |
TCR1#,2#..RHD..ATM |
1 | ||
| 45870-28060 |
TCR1#,2#..RHD..ATM W(TILT STEERING) |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
TCR1#,2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| 94180-40800 | ||||

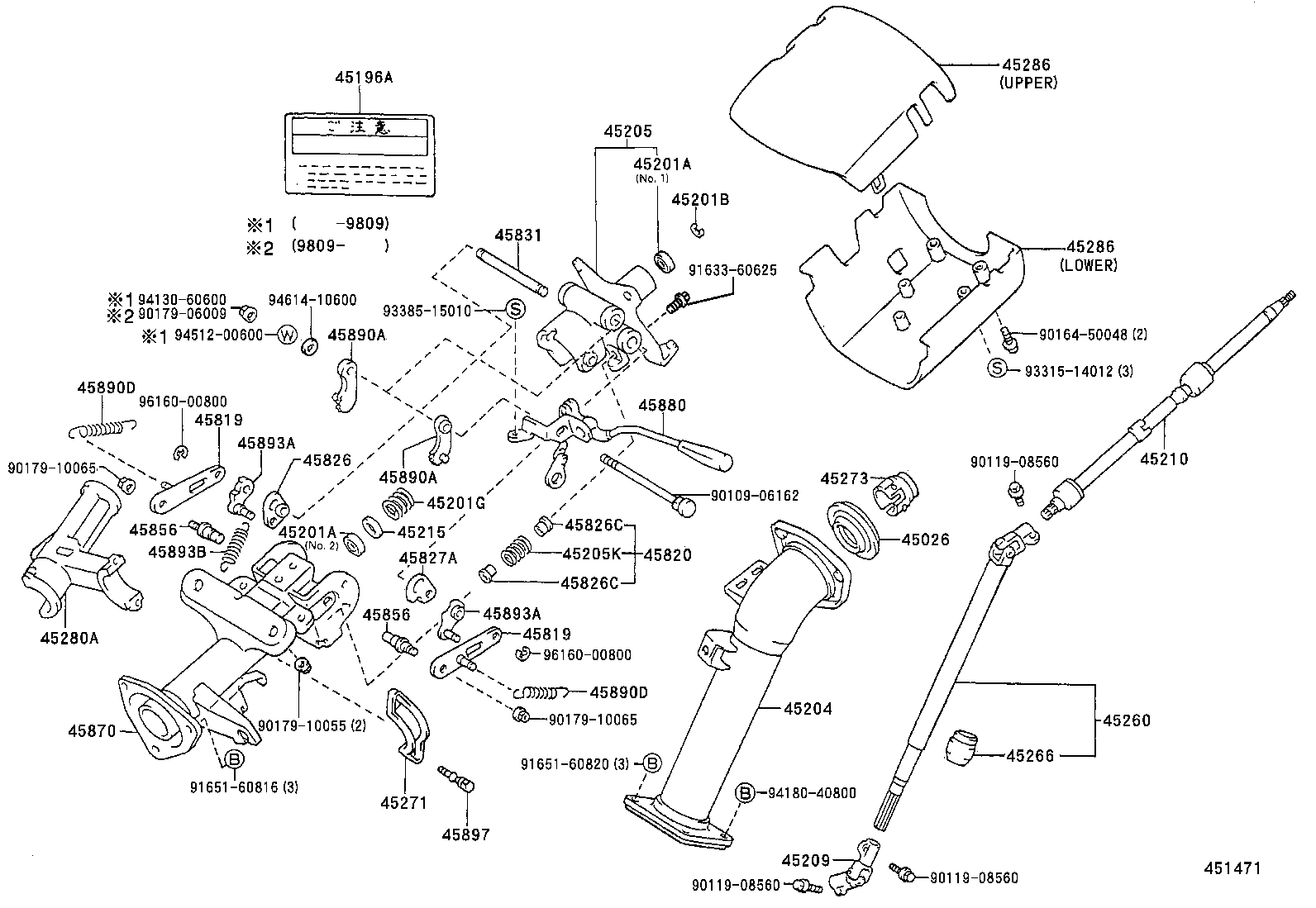

(9005- )
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-28010 |
TCR1#,2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
TCR1#,2# NO.2 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18010 |
TCR1#,2# NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
TCR1#,2# T=1.20 |
2 | ||
| 90520-17042 |
TCR1#,2# T=1.20,W(TILT STEERING) |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
TCR1#,2# |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-28030 |
TCR1#,2#..RHD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-28110 |
TCR1#,2#..ARL |
1 | ||
| 45205K - SPRING(FOR STEERING COLUMN TUBE) | ||||
| 90504-25002 |
TCR1#,2# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16010 |
TCR1#,2# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-28090 |
TCR1#,2# W(TILT STEERING) |
1 | ||
| 45210-28080 |
TCR1#,2# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
TCR1#,2# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28020 |
TCR1#,2#..RHD |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
TCR1#,2# |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
TCR1#,2# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-28010 |
TCR1#,2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-28180 |
TCR1#,2#..RHD |
1 | ||
| 45280-28200 |
TCR1#,2#..RHD W(TILT STEERING) |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2820003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,UPPER |
1 | ||
| 45286-2820005 |
TCR1#,2#..RHD..ATM GREIGE,TRIM4#,UPPER |
1 | ||
| 45287-2823003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,LOWER |
1 | ||
| 45287-2821003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,LOWER |
1 | ||
| 45286-2821003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2820003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,UPPER |
1 | ||
| 45286-2820005 |
TCR1#,2#..RHD..ATM GREIGE,TRIM4#,UPPER |
1 | ||
| 45287-2823003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,LOWER |
1 | ||
| 45287-2821003 |
TCR1#,2#..RHD..ATM GRAY,TRIM1#,LOWER |
1 | ||
| 45286-2821003 |
TCR1#,2#..RHD..ATM W(TILT STEERING),GRAY,TRIM1#,UPPER |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
TCR1#,2# |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22040 |
TCR1#,2# |
2 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-22050 |
TCR1#,2# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
TCR1#,2# |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-06031 |
TCR1#,2# |
2 | ||
| 45827A - LEVER, STEERING TILT SUB | ||||
| 45827-22030 |
TCR1#,2# |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-22020 |
TCR1#,2# |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
TCR1#,2# OD=9.989-9.998 |
2 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-22010 |
TCR1#,2# OD=9.989-9.998 |
2 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-28050 |
TCR1#,2#..RHD..ATM |
1 | ||
| 45870-28060 |
TCR1#,2#..RHD..ATM W(TILT STEERING) |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-28010 |
TCR1#,2# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
TCR1#,2# RH |
1 | ||
| 45890-22090 |
TCR1#,2# LH |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20110 |
TCR1#,2# RH |
1 | ||
| 45890-22090 |
TCR1#,2# LH |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-12035 |
TCR1#,2# RH |
1 | ||
| 90507-08010 |
TCR1#,2# LH |
1 | ||
| 45890D - SPRING, TENSION(FOR TILT STEERING PAWL ASSY) | ||||
| 90507-12035 |
TCR1#,2# RH |
1 | ||
| 90507-08010 |
TCR1#,2# LH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-22040 |
TCR1#,2# MARK 2,RH |
1 | ||
| 45893-22030 |
TCR1#,2# MARK 1,RH |
1 | ||
| 45893-22090 |
TCR1#,2# MARK B,LH |
1 | ||
| 45893-22060 |
TCR1#,2# MARK 4,RH |
1 | ||
| 45893-22120 |
TCR1#,2# MARK E,LH |
1 | ||
| 45893-22050 |
TCR1#,2# MARK 3,RH |
1 | ||
| 45893-22070 |
TCR1#,2# MARK 5,RH |
1 | ||
| 45893-22080 |
TCR1#,2# MARK A,LH |
1 | ||
| 45893-22110 |
TCR1#,2# MARK D,LH |
1 | ||
| 45893-22100 |
TCR1#,2# MARK C,LH |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-22040 |
TCR1#,2# MARK 2,RH |
1 | ||
| 45893-22030 |
TCR1#,2# MARK 1,RH |
1 | ||
| 45893-22090 |
TCR1#,2# MARK B,LH |
1 | ||
| 45893-22060 |
TCR1#,2# MARK 4,RH |
1 | ||
| 45893-22120 |
TCR1#,2# MARK E,LH |
1 | ||
| 45893-22050 |
TCR1#,2# MARK 3,RH |
1 | ||
| 45893-22070 |
TCR1#,2# MARK 5,RH |
1 | ||
| 45893-22080 |
TCR1#,2# MARK A,LH |
1 | ||
| 45893-22110 |
TCR1#,2# MARK D,LH |
1 | ||
| 45893-22100 |
TCR1#,2# MARK C,LH |
1 | ||
| 45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER) | ||||
| 90507-07003 |
TCR1#,2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
TCR1#,2# |
2 | ||
| Common parts | ||||
| 90109-06162 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06009 | ||||
| 90179-10055 | ||||
| 90179-10065 | ||||
| 91633-60625 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| 93385-15010 | ||||
| 94130-60600 | ||||
| 94180-40800 | ||||
| 94512-00600 | ||||
| 94614-10600 | ||||
| 96160-00800 | ||||
