TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )

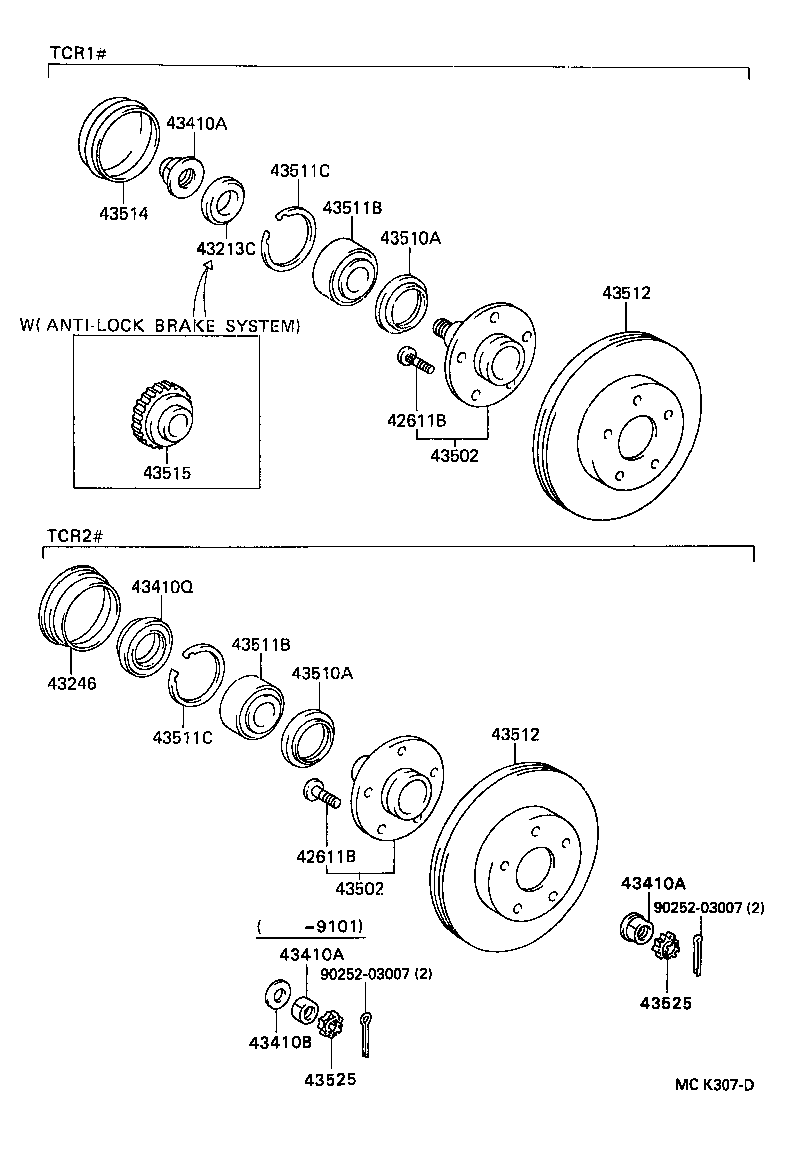

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02049 |
TCR1#,2# |
10 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02049 |
TCR1#,2# |
10 | ||
| 43246 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 | ||||
| 43246-28010 |
TCR2# |
2 | ||
| 43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90170-19002 |
TCR2# |
2 | ||
| 43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90170-19002 |
TCR2# |
2 | ||
| 43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90170-19002 |
TCR2# |
2 | ||
| 43410B - WASHER (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90201-20012 |
TCR2# |
2 | ||
| 43410Q - SEAL, OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-56014 |
TCR2# |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-28050 |
TCR2# |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-28050 |
TCR2# |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-61001 |
TCR1#,2# |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-61001 |
TCR1#,2# |
2 | ||
| 43511B - BEARING (FOR FRONT AXLE HUB) | ||||
| 90369-43007 |
TCR1#,2# |
2 | ||
| 43511B - BEARING (FOR FRONT AXLE HUB) | ||||
| 90369-43007 |
TCR1#,2# |
2 | ||
| 43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB) | ||||
| 90521-82002 |
TCR1#,2# T=2.5 |
2 | ||
| 43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB) | ||||
| 90521-82002 |
TCR1#,2# T=2.5 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-28060 |
TCR1#,2# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-28060 |
TCR1#,2# |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-16010 |
TCR2# |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-16010 |
TCR2# |
2 | ||
| Common parts | ||||
| 90252-03007 | ||||
