TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR2#

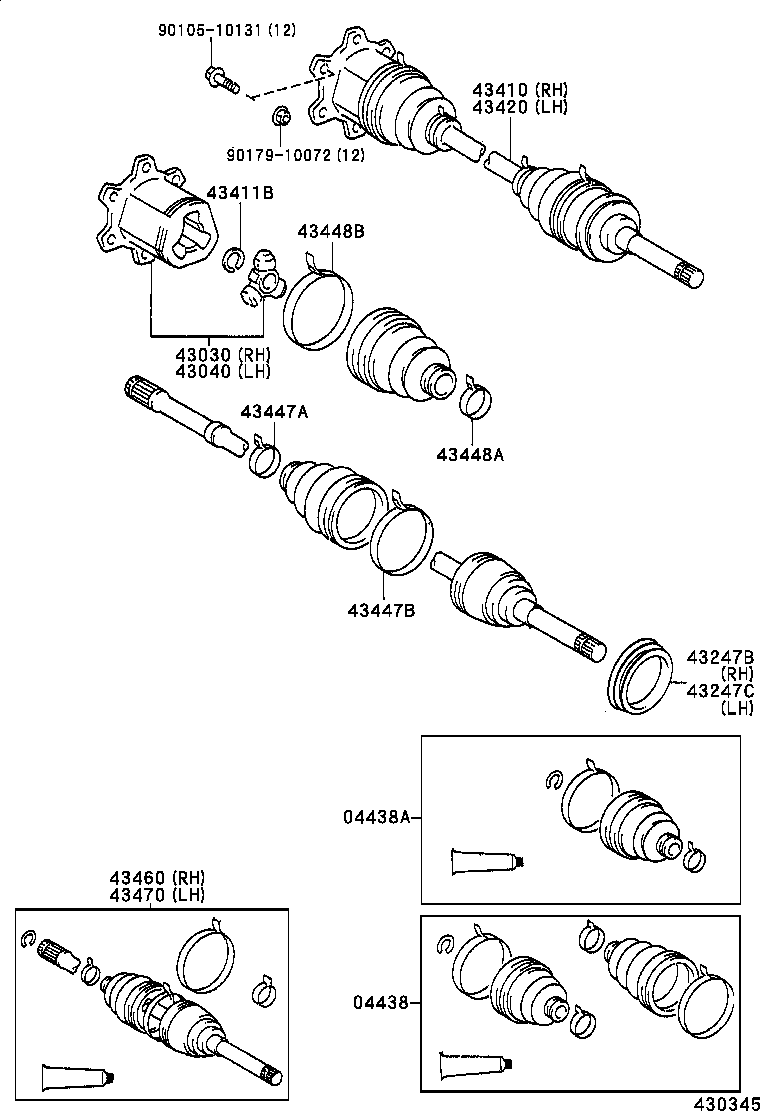

Click highlighted areas on diagram

diagram 04438 04438A 43030 43040 43247B 43247C 43410 43411B 43420 43447A 43447B 43448A 43448B 43460 43470 9010510131 9017910072
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04437-20020

TCR2#

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-28011

TCR2#

 2
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43403-28010

TCR2#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-28010

TCR2#

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-28010

TCR2#

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-28010

TCR2#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-28020

TCR2#

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-26028

TCR2#

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-28020

TCR2#

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-14010

TCR2#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01339

TCR2#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

TCR2#

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-30010

TCR2#

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29175

TCR2#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-29175

TCR2#

 1
Common parts
90105-10131
90179-10072
