Toyota Previa TCR20 DISC WHEEL & WHEEL CAP

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-28110	TCR1#,2# TYPE A:REFER TO ILLUSTRATION	05/1990 - 08/1996	4
42621 - CAP, WHEEL
42621-28070	TCR1#,2# TYPE B:REFER TO ILLUSTRATION	05/1990 - 08/1993	4
42621-28060	TCR1#,2# TYPE A:REFER TO ILLUSTRATION	05/1990 - 08/1991	4

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42611-28250	TCR1#,2# 16X4T,TYPE E:REFER TO ILLUSTRATION,CHUO SEIKI	05/1990 - 08/1991	1
42611-28220	TCR1#,2# 16X4T,TYPE F:REFER TO ILLUSTRATION,TOPY	05/1990 - 08/1991	1
42611-2817003	TCR10,20..ARL 15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5	07/1990 - 08/1991	1
42611-2816003	TCR10,20..ARL 14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5	07/1990 - 08/1991	1
42601C - NUT, HUB (FOR AXLE)
90942-01062	TCR1#,2#..ARL,V,W W(ALUMINUM WHEEL)	05/1990 - 12/1999	20
90942-01007	TCR1#,2#..ARL,V,W	05/1990 - 12/1999	20
42601F - WHEEL, DISC (FOR FRONT)
42611-2816003	TCR10,20 14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5	05/1990 - 08/1991	2
42611-2817003	TCR10,20 15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5	05/1990 - 08/1991	2
42611-28230	TCR1#,2#..ARL,V,W 15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH	05/1990 - 08/1996	1
42611-28240	TCR1#,2#..ARL,V,W 15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH	05/1990 - 08/1996	1
42601R - WHEEL, DISC (FOR REAR)
42611-2816003	TCR10,20 14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5	05/1990 - 08/1991	2
42611-28240	TCR1#,2#..ARL,V,W 15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH	05/1990 - 08/1996	1
42611-2817003	TCR10,20 15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5	05/1990 - 08/1991	2
42611-28230	TCR1#,2#..ARL,V,W 15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH	05/1990 - 08/1996	1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	TCR1#,2#	05/1990 - 12/1999	5
42652 - TIRE
42652-28320	TCR1#,2#..ARL 205/70R14	05/1990 - 08/1991	4
42652-28330	TCR1#,2#..ARL 215/65R15	05/1990 - 12/1999	4
42652A - TIRE (FOR SPARE)
42652-28320	TCR1#,2#..ARL 205/70R14	07/1990 - 08/1991	1
42652-28300	TCR1#,2# T145/80D16	05/1990 - 08/1991	1

Part #	Description	Period	Qty	Price

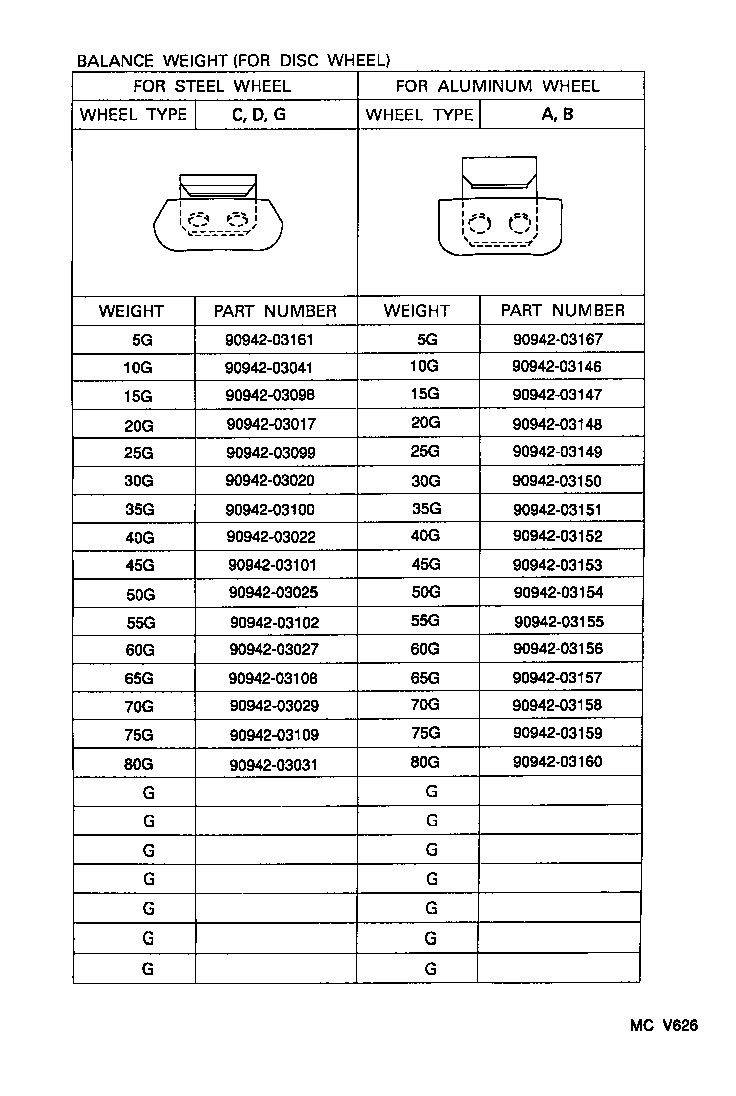

Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03167

TCR20R-RFSDKQ (1990)

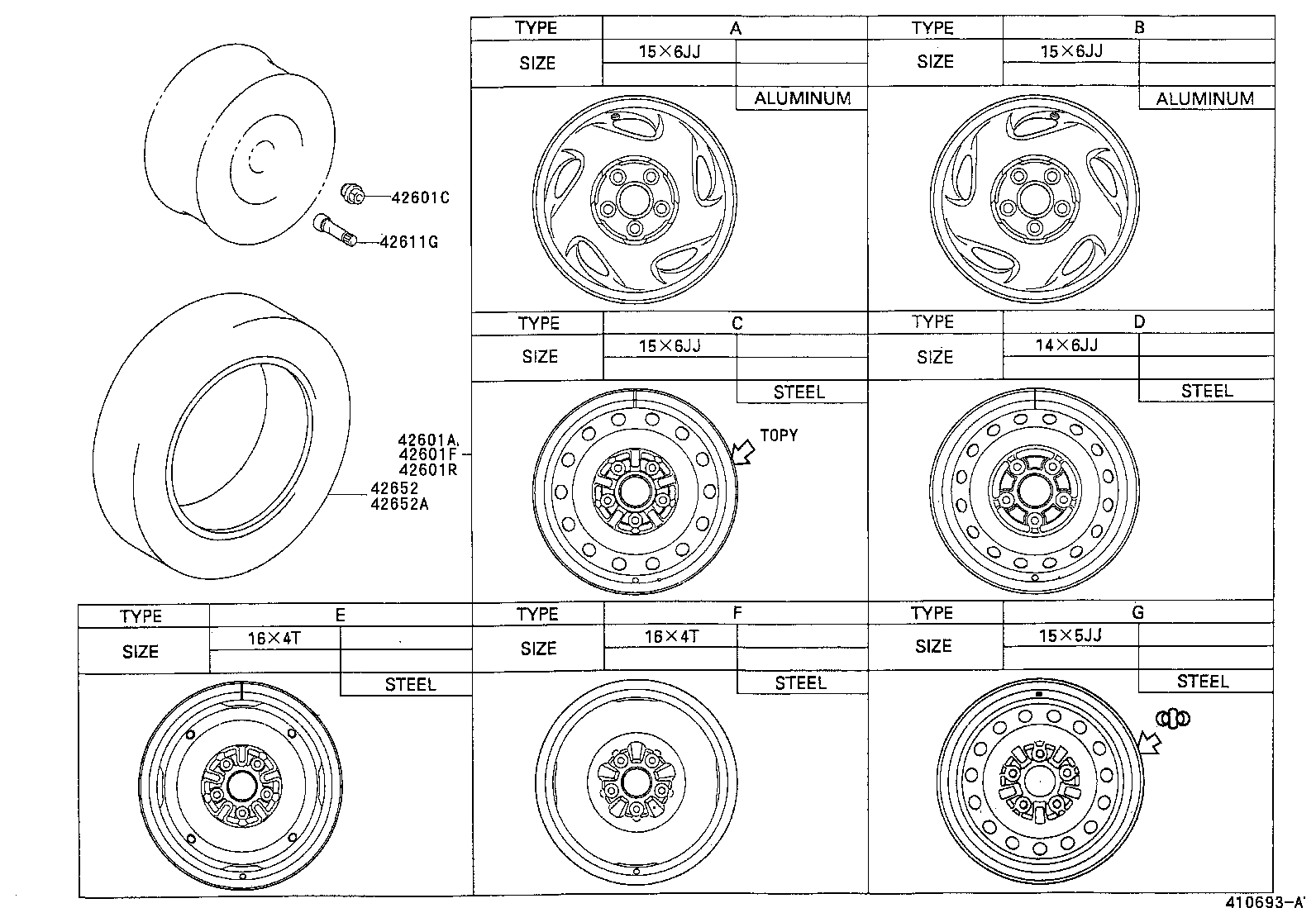

ILLUST NO. 2 OF 3(9005- )

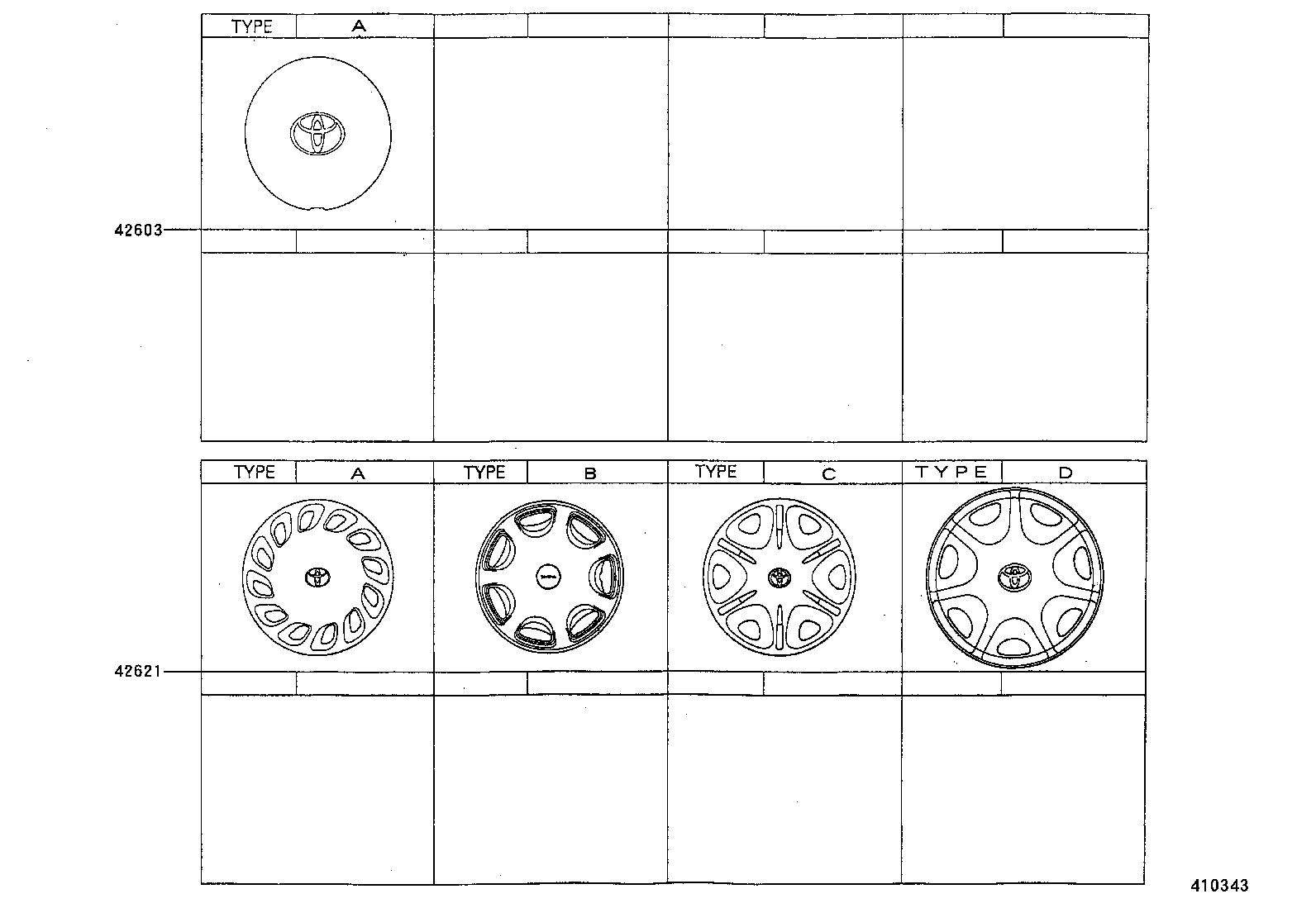

ILLUST NO. 1 OF 3(9005- )

ILLUST NO. 3 OF 3(9005- )
