TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR10,20

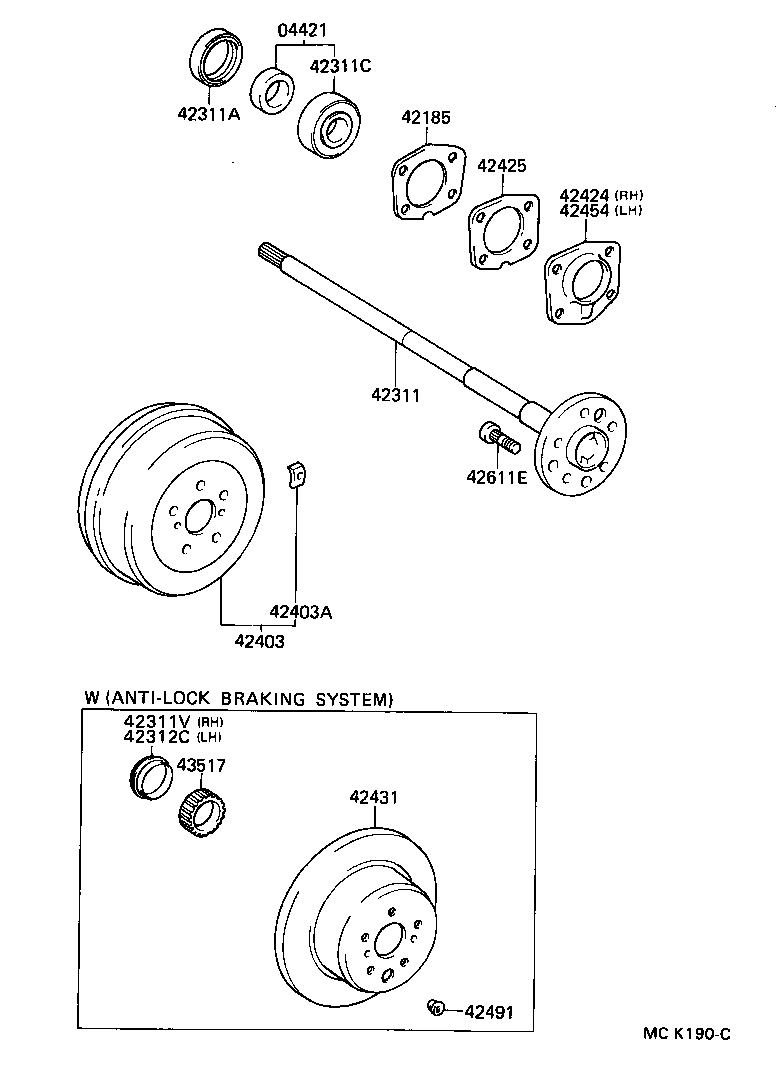

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42311C 42311V 42312C 42403 42403A 42424 42425 42431 42454 42491 42611E 43517
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-28010

TCR10,20

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-30061

TCR10,20

 2
42311 - SHAFT, REAR AXLE
42311-28050

TCR10,20

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

TCR10,20

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90369-35061

TCR10,20

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28040

TCR10,20

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01289

TCR1#,2#

30G

 1
90937-01287

TCR1#,2#

10G

 1
90937-01288

TCR1#,2#

20G

 1
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-30040

TCR10,20

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-30031

TCR10,20

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-30040

TCR10,20

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

TCR10,20

 10
