TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

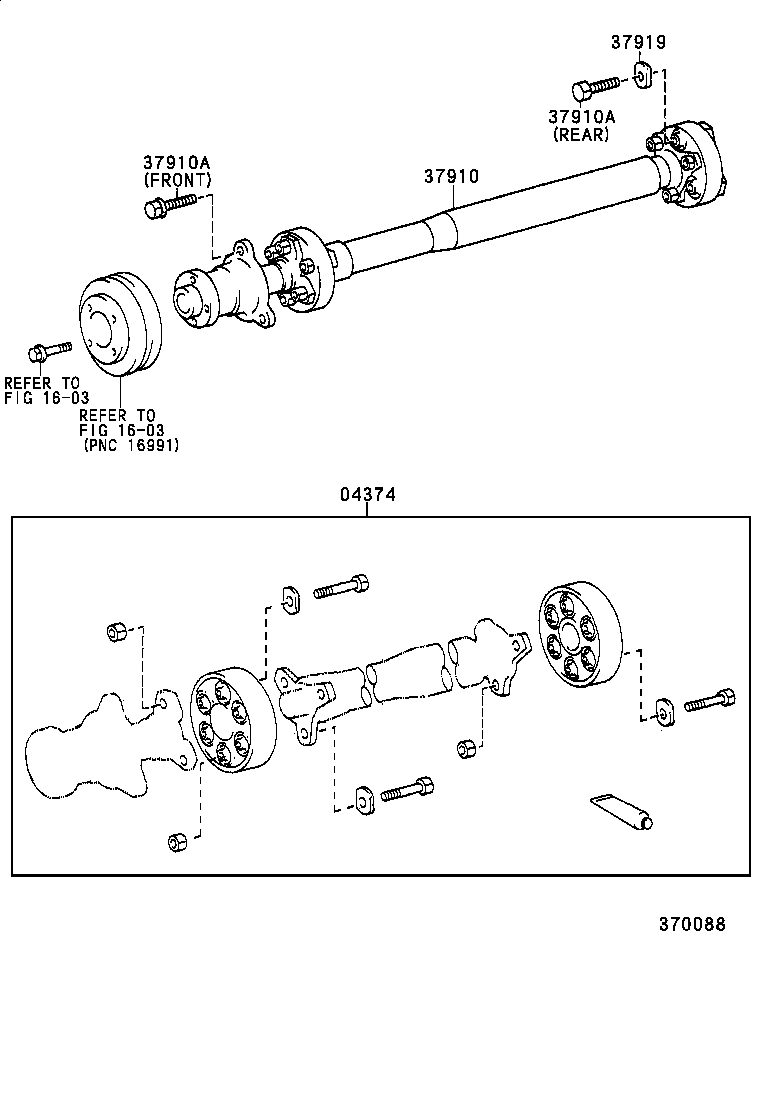

Click highlighted areas on diagram

diagram 04374 1603 1603 37910 37910A 37910A 37919
Part # Description Qty Price
37910 - SHAFT ASSY, EQUIPMENT DRIVE
37910-28010

TCR1#,2#

 1
37910A - BOLT (FOR EQUIPMENT DRIVE SHAFT)
90119-10648

TCR1#,2#

FRONT

 3
90101-08143

TCR1#,2#

REAR

 3
37910A - BOLT (FOR EQUIPMENT DRIVE SHAFT)
90119-10648

TCR1#,2#

FRONT

 3
90101-08143

TCR1#,2#

REAR

 3
37919 - WASHER, EQUIPMENT DRIVE SHAFT
37919-28010

TCR1#,2#

 3
Linked diagrams
1603
