TCR20R-RFSDKQ (1990)
Toyota Previa
(9005- )TCR2#

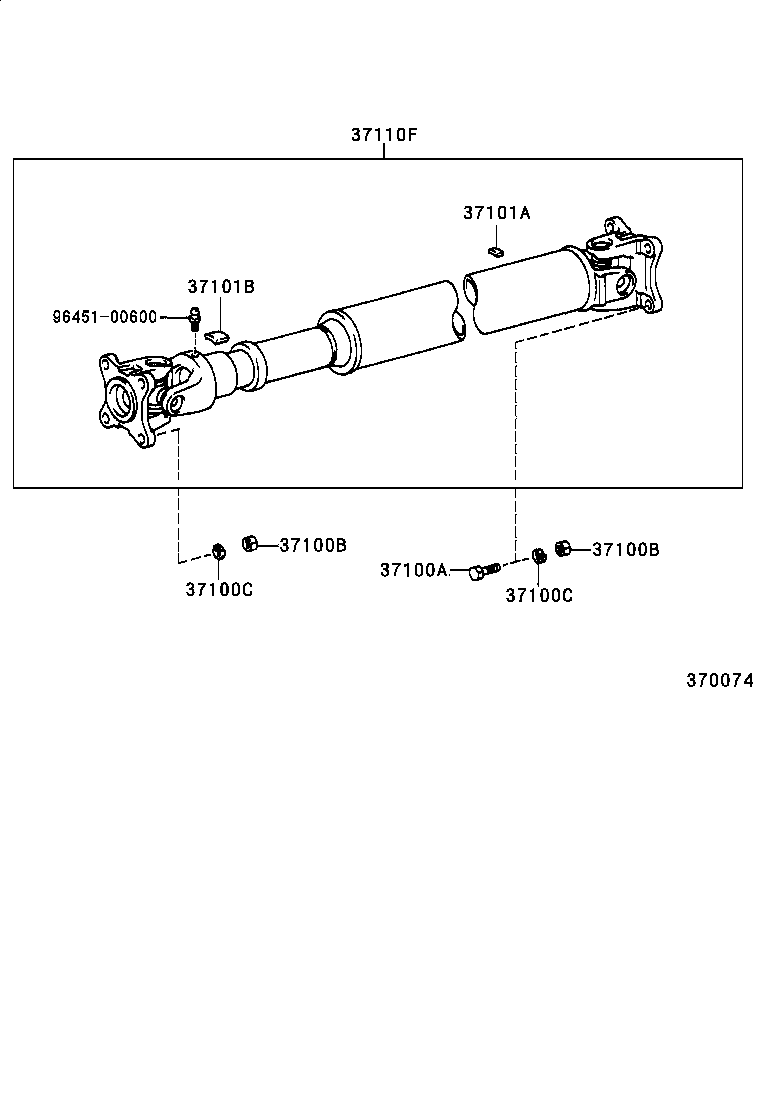

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
TCR1#,2# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
TCR2# |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
TCR2# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
TCR2# |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
TCR2# |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
TCR1#,2# 10G,L=20.7 |
1 | ||
| 90937-01147 |
TCR1#,2# 2G,T=2.0 |
1 | ||
| 90937-01151 |
TCR1#,2# 12G,L=24.9 |
1 | ||
| 90937-01202 |
TCR1#,2# 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01399 |
TCR1#,2# 22G,T=4.5,L=20.1 |
1 | ||
| 90937-01152 |
TCR1#,2# 14G,L=29.0 |
1 | ||
| 90937-01149 |
TCR1#,2# 6G,L=12.4 |
1 | ||
| 90937-01150 |
TCR1#,2# 8G,L=16.6 |
1 | ||
| 90937-01203 |
TCR1#,2# 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01201 |
TCR1#,2# 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01148 |
TCR1#,2# 4G,T=2.0 |
1 | ||
| 90937-01204 |
TCR1#,2# 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01398 |
TCR1#,2# 20G,T=4.5,L=18.3 |
1 | ||
| 90937-01205 |
TCR1#,2# 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01396 |
TCR1#,2# 16G,T=4.5,L=14.6 |
1 | ||
| 90937-01401 |
TCR1#,2# 26G,T=4.5,L=23.7 |
1 | ||
| 90937-01397 |
TCR1#,2# 18G,T=4.5,L=16.4 |
1 | ||
| 90937-01402 |
TCR1#,2# 28G,T=4.5,L=25.6 |
1 | ||
| 90937-01400 |
TCR1#,2# 24G,T=4.5,L=21.9 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01184 |
TCR2# 4G,T=1.6 |
1 | ||
| 90937-01192 |
TCR2# 12G,T=4.5 |
1 | ||
| 90937-01269 |
TCR2# 40G,L=25.6 |
1 | ||
| 90937-01191 |
TCR2# 8G,T=1.6 |
1 | ||
| 90937-01194 |
TCR2# 20G,T=4.5 |
1 | ||
| 90937-01270 |
TCR2# 44G,L=22.6 |
1 | ||
| 90937-01271 |
TCR2# 48G,L=24.6 |
1 | ||
| 90937-01274 |
TCR2# 60G,L=28.7 |
1 | ||
| 90937-01272 |
TCR2# 52G,L=26.7 |
1 | ||
| 90937-01193 |
TCR2# 16G,T=4.5 |
1 | ||
| 90937-01273 |
TCR2# 56G,L=28.7 |
1 | ||
| 90937-01268 |
TCR2# 36G,L=23.1,T=8.0 |
1 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-28220 |
TCR20..ATM |
1 | ||
| Common parts | ||||
| 96451-00600 | ||||
(9005- )TCR2#

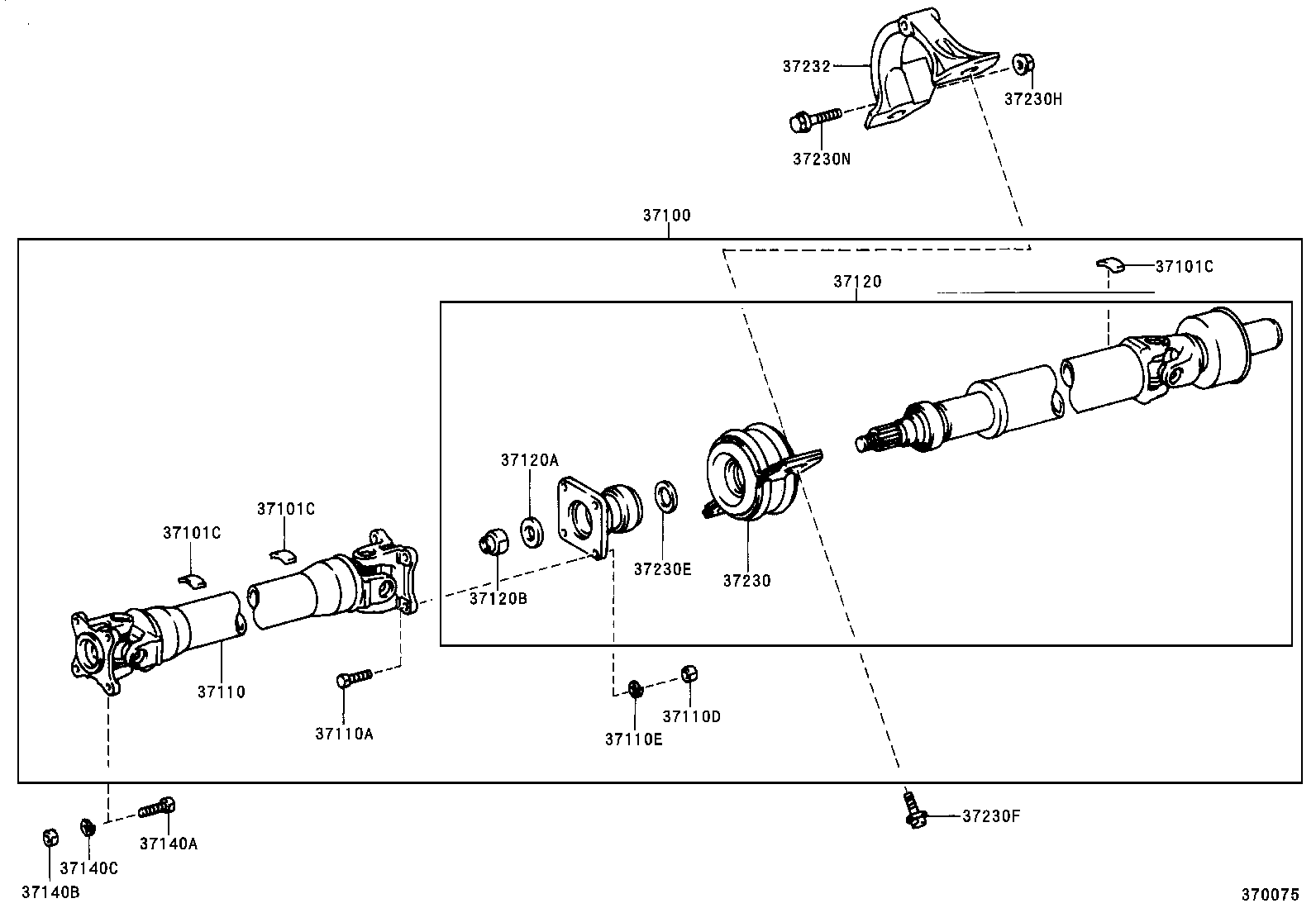

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-28020 |
TCR2#..ATM |
1 | ||
| 37101C - PIECE, BALANCE, NO.3 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
TCR2# 6G,L=12.4 |
1 | ||
| 90937-01150 |
TCR2# 8G,L=16.6 |
1 | ||
| 90937-01290 |
TCR2# 2G |
1 | ||
| 90937-01151 |
TCR2# 12G,L=24.9 |
1 | ||
| 90937-01152 |
TCR2# 14G,L=29.0 |
1 | ||
| 90937-01293 |
TCR2# 8G |
1 | ||
| 90937-01132 |
TCR2# 10G,L=20.7 |
1 | ||
| 90937-01148 |
TCR2# 4G,T=2.0 |
1 | ||
| 90937-01147 |
TCR2# 2G,T=2.0 |
1 | ||
| 90937-01301 |
TCR2# 24G,T=2.0 |
1 | ||
| 90937-01304 |
TCR2# 30G,T=2.0 |
1 | ||
| 90937-01292 |
TCR2# 6G |
1 | ||
| 90937-01302 |
TCR2# 26G,T=2.0 |
1 | ||
| 90937-01295 |
TCR2# 12G |
1 | ||
| 90937-01291 |
TCR2# 4G |
1 | ||
| 90937-01303 |
TCR2# 28G,T=2.0 |
1 | ||
| 90937-01294 |
TCR2# 10G |
1 | ||
| 37101C - PIECE, BALANCE, NO.3 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
TCR2# 6G,L=12.4 |
1 | ||
| 90937-01150 |
TCR2# 8G,L=16.6 |
1 | ||
| 90937-01290 |
TCR2# 2G |
1 | ||
| 90937-01151 |
TCR2# 12G,L=24.9 |
1 | ||
| 90937-01152 |
TCR2# 14G,L=29.0 |
1 | ||
| 90937-01293 |
TCR2# 8G |
1 | ||
| 90937-01132 |
TCR2# 10G,L=20.7 |
1 | ||
| 90937-01148 |
TCR2# 4G,T=2.0 |
1 | ||
| 90937-01147 |
TCR2# 2G,T=2.0 |
1 | ||
| 90937-01301 |
TCR2# 24G,T=2.0 |
1 | ||
| 90937-01304 |
TCR2# 30G,T=2.0 |
1 | ||
| 90937-01292 |
TCR2# 6G |
1 | ||
| 90937-01302 |
TCR2# 26G,T=2.0 |
1 | ||
| 90937-01295 |
TCR2# 12G |
1 | ||
| 90937-01291 |
TCR2# 4G |
1 | ||
| 90937-01303 |
TCR2# 28G,T=2.0 |
1 | ||
| 90937-01294 |
TCR2# 10G |
1 | ||
| 37101C - PIECE, BALANCE, NO.3 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
TCR2# 6G,L=12.4 |
1 | ||
| 90937-01150 |
TCR2# 8G,L=16.6 |
1 | ||
| 90937-01290 |
TCR2# 2G |
1 | ||
| 90937-01151 |
TCR2# 12G,L=24.9 |
1 | ||
| 90937-01152 |
TCR2# 14G,L=29.0 |
1 | ||
| 90937-01293 |
TCR2# 8G |
1 | ||
| 90937-01132 |
TCR2# 10G,L=20.7 |
1 | ||
| 90937-01148 |
TCR2# 4G,T=2.0 |
1 | ||
| 90937-01147 |
TCR2# 2G,T=2.0 |
1 | ||
| 90937-01301 |
TCR2# 24G,T=2.0 |
1 | ||
| 90937-01304 |
TCR2# 30G,T=2.0 |
1 | ||
| 90937-01292 |
TCR2# 6G |
1 | ||
| 90937-01302 |
TCR2# 26G,T=2.0 |
1 | ||
| 90937-01295 |
TCR2# 12G |
1 | ||
| 90937-01291 |
TCR2# 4G |
1 | ||
| 90937-01303 |
TCR2# 28G,T=2.0 |
1 | ||
| 90937-01294 |
TCR2# 10G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-28260 |
TCR2# |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
TCR2# |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
TCR2# |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
TCR2# |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-28020 |
TCR2#..ATM |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
TCR2# OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
TCR2# |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90101-08082 |
TCR2# |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90170-08015 |
TCR2# |
4 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 94512-00800 |
TCR2# |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-28010 |
TCR2# |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-26005 |
TCR2# |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10049 |
TCR2# |
2 | ||
| 37230N - BOLT, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10642 |
TCR2# |
1 | ||
| 37232 - BRACKET, CENTER SUPPORT BEARING HOUSING | ||||
| 37231-28010 |
TCR2# |
1 | ||
