TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )TCR2#

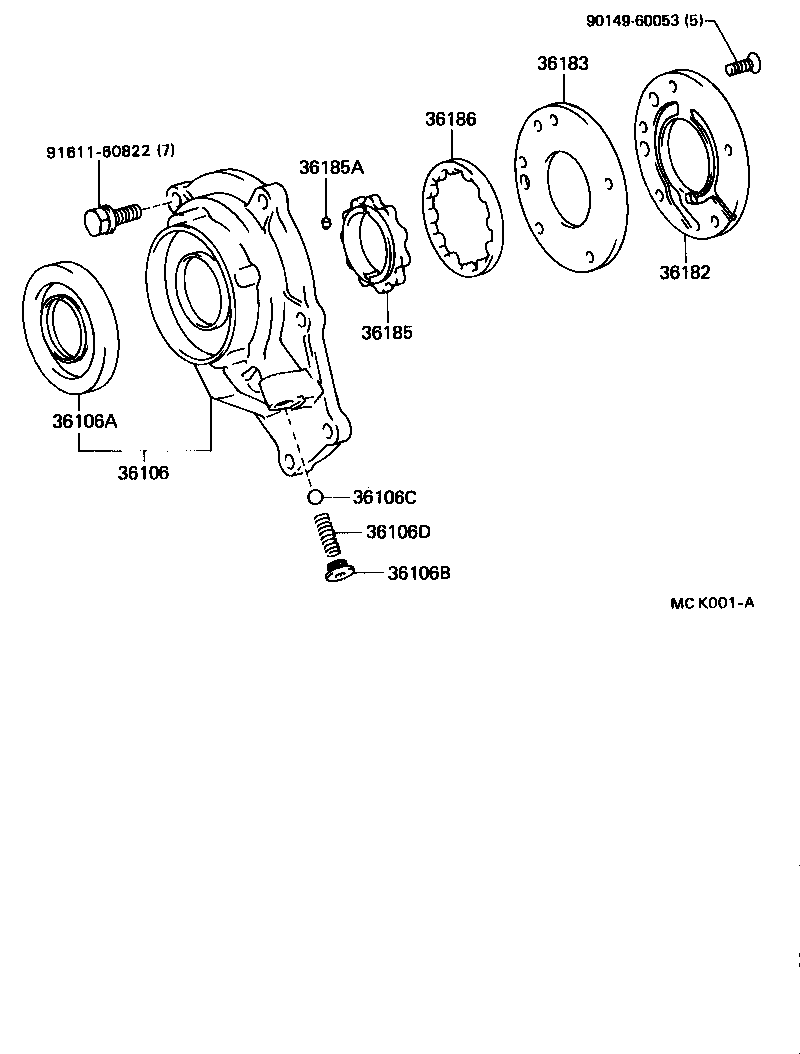

Click highlighted areas on diagram

diagram 36106 36106A 36106B 36106C 36106D 36182 36183 36185 36185A 36186 9014960053 9161160822
Part # Description Qty Price
36106 - BODY SUB-ASSY, TRANSFER OIL PUMP
36106-28040

TCR2#..ATM

 1
36106A - SEAL, OIL (FOR TRANSFER OIL PUMP BODY)
90310-40002

TCR2#..ATM

 1
36106B - PLUG (FOR TRANSFER OIL PUMP BODY)
90341-12014

TCR2#

 1
36106C - BALL (FOR TRANSFER OIL PUMP BODY)
90360-10003

TCR2#

 1
36106D - SPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)
90501-09068

TCR2#

 1
36182 - COVER, TRANSFER OIL PUMP
36182-28020

TCR2#

 1
36183 - PLATE, TRANSFER OIL PUMP
36183-28020

TCR2#

 1
36185 - ROTOR, TRANSFER OIL PUMP DRIVE
36185-28020

TCR2#

 1
36185A - PIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)
90250-05025

TCR2#

 2
36186 - ROTOR, TRANSFER OIL PUMP DRIVEN
36186-28010

TCR2#

 1
Common parts
90149-60053
91611-60822
