TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9308)TCR2#

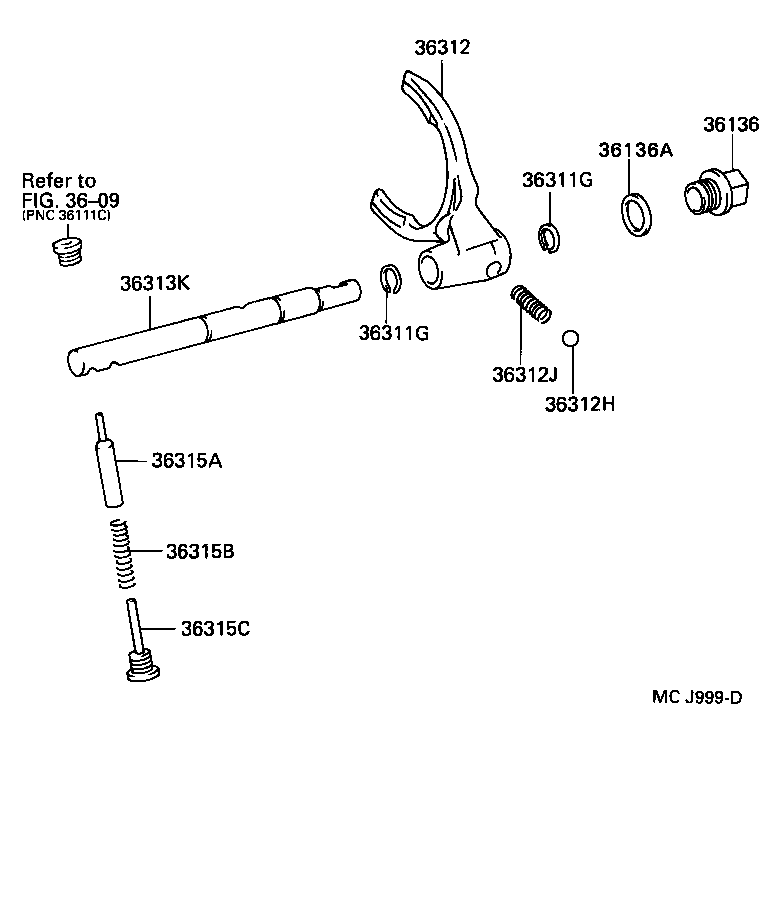

Click highlighted areas on diagram

diagram 3609 36136 36136A 36311G 36311G 36312 36312H 36312J 36313K 36315A 36315B 36315C
Part # Description Qty Price
36136 - PLUG, TRANSFER CASE
36136-28020

TCR2#

 1
36136A - GASKET (FOR TRANSFER CASE PLUG)
90430-18008

TCR2#

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13001

TCR2#

 2
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13001

TCR2#

 2
36312 - FORK, TRANSFER GEAR SHIFT, NO.2
36312-28020

TCR2#

 1
36312H - BALL (FOR TRANSFER GEAR SHIFT FORK NO.2)
90360-10003

TCR2#

 1
36312J - SPRING, COMPRESSION (FOR TRANSFER GEAR SHIFT FORK NO.2)
90501-09097

TCR2#

 1
36313K - SHAFT, TRANSFER GEAR SHIFT FORK
36313-28040

TCR2#

 1
36315A - PIN, TRANSFER GEAR SHIFT FORK SHAFT
36315-28010

TCR2#

 1
36315B - SPRING (FOR TRANSFER GEAR SHIFT FORK SHAFT PIN)
90501-16094

TCR2#

 1
36315C - PLUG (FOR TRANSFER GEAR SHIFT FORK SHAFT PIN)
90341-12021

TCR2#

 1
Linked diagrams
3609
