TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )ATM

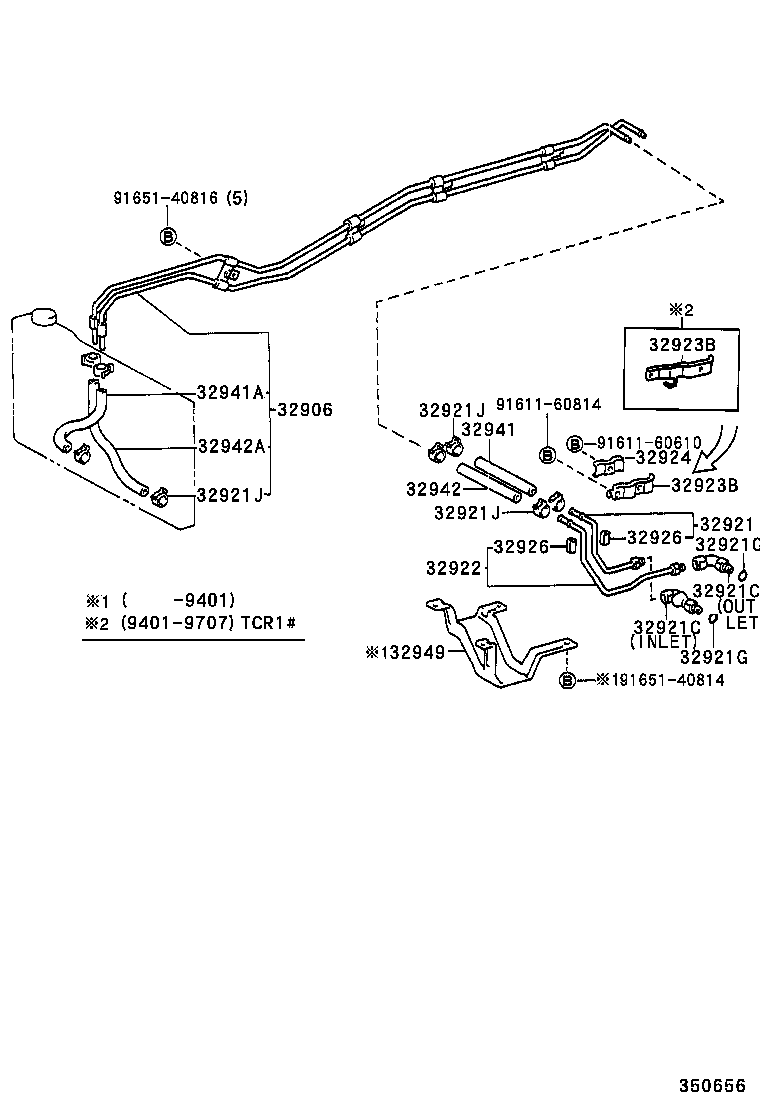

Click highlighted areas on diagram

A46DE,A46DF

diagram 32906 32921 32921C 32921C 32921G 32921G 32921J 32921J 32921J 32922 32923B 32923B 32924 32926 32926 32941 32941A 32942 32942A 32949 9161160610 9161160814 9165140814 9165140816
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32906-28010

TCR1#,2#..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-28110

TCR2#..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16021

TCR1#,2#..ATM

OUTLET

 1
90407-16022

TCR2#..ATM

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16021

TCR1#,2#..ATM

OUTLET

 1
90407-16022

TCR2#..ATM

INLET

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

TCR1#,2#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

TCR1#,2#..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

TCR1#,2#..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

TCR1#,2#..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16013

TCR1#,2#..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-28100

TCR1#,2#..ATM

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-28070

TCR1#,2#..ATM

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-28070

TCR1#,2#..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-12074

TCR1#,2#..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

TCR1#,2#..ATM

L=35,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

TCR1#,2#..ATM

L=35,ID=10

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-28170

TCR1#,2#..ATM

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32941-28190

TCR1#,2#..ATM

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32941-28170

TCR1#,2#..ATM

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
32942-28170

TCR1#,2#..ATM

 1
32949 - INSULATOR, OIL COOLER HOSE HEAT
32949-28010

TCR1#,2#..ATM

 1
Common parts
91611-60610
91611-60814
91651-40814
91651-40816
