TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

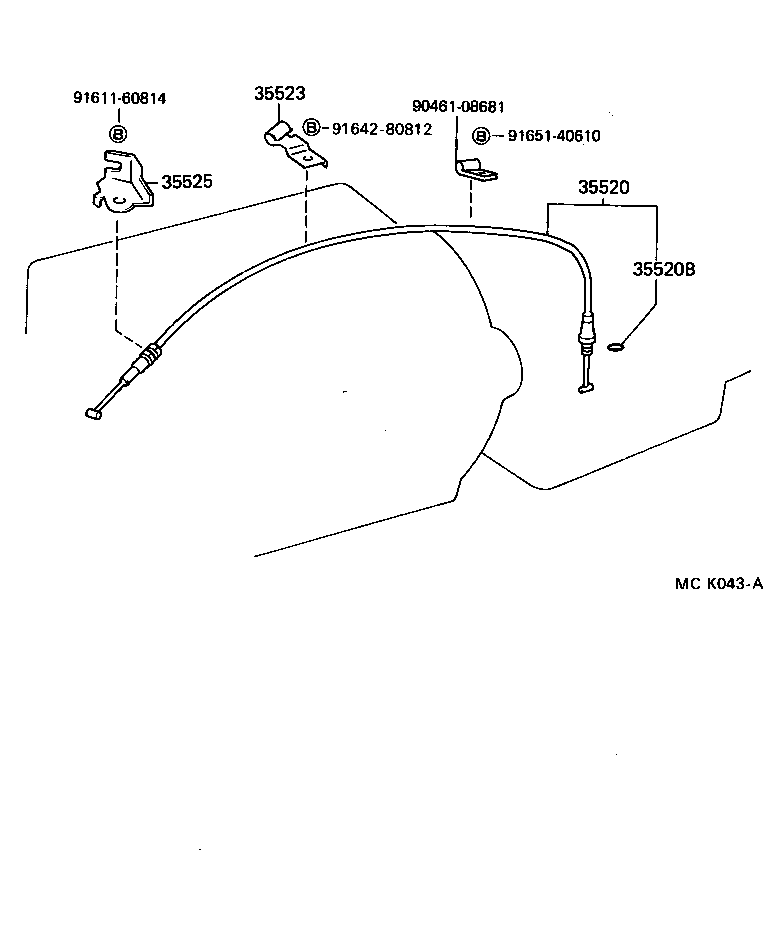

ILLUST NO. 2 OF 2(9005- )ATM

Click highlighted areas on diagram

A46DE,A46DF

diagram 35520 35520B 35523 35525 9046108681 9161160814 9164280812 9165140610
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-28020

TCR1#,2#..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

TCR1#,2#..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-28020

TCR1#,2#..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-28010

TCR1#,2#..ATM

 1
Common parts
90461-08681
91611-60814
91642-80812
91651-40610

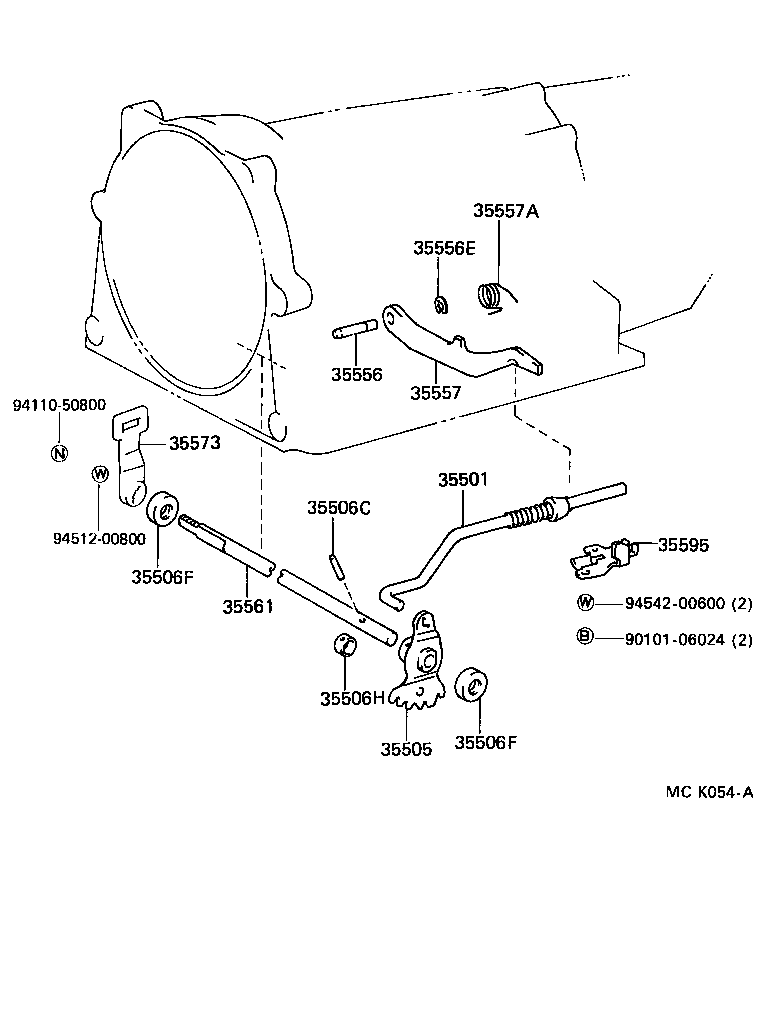

ILLUST NO. 1 OF 2(9005- )ATM

Click highlighted areas on diagram

A46DE,A46DF

diagram 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35573 35595 9010106024 9411050800 9451200800 9454200600
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-26020

TCR1#,2#..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-28010

TCR1#,2#..ATM

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

TCR1#,2#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11001

TCR1#,2#..ATM

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11001

TCR1#,2#..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

TCR1#,2#..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-26010

TCR1#,2#..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

TCR1#,2#..ATM

 1
35557 - PAWL, PARKING LOCK
35557-26010

TCR1#,2#..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21001

TCR1#,2#..ATM

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-30060

TCR1#,2#..ATM

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-28010

TCR1#,2#..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-40010

TCR1#,2#..ATM

 1
Common parts
90101-06024
94110-50800
94512-00800
94542-00600
