Toyota Previa TCR20 VALVE BODY & OIL STRAINER (ATM)

Manufacturers Home
Toyota
GR
PREVIA
TCR20R-RFSDKQ (1990)
3512 - VALVE BODY & OIL STRAINER (ATM)

TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991

Engine 2TZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

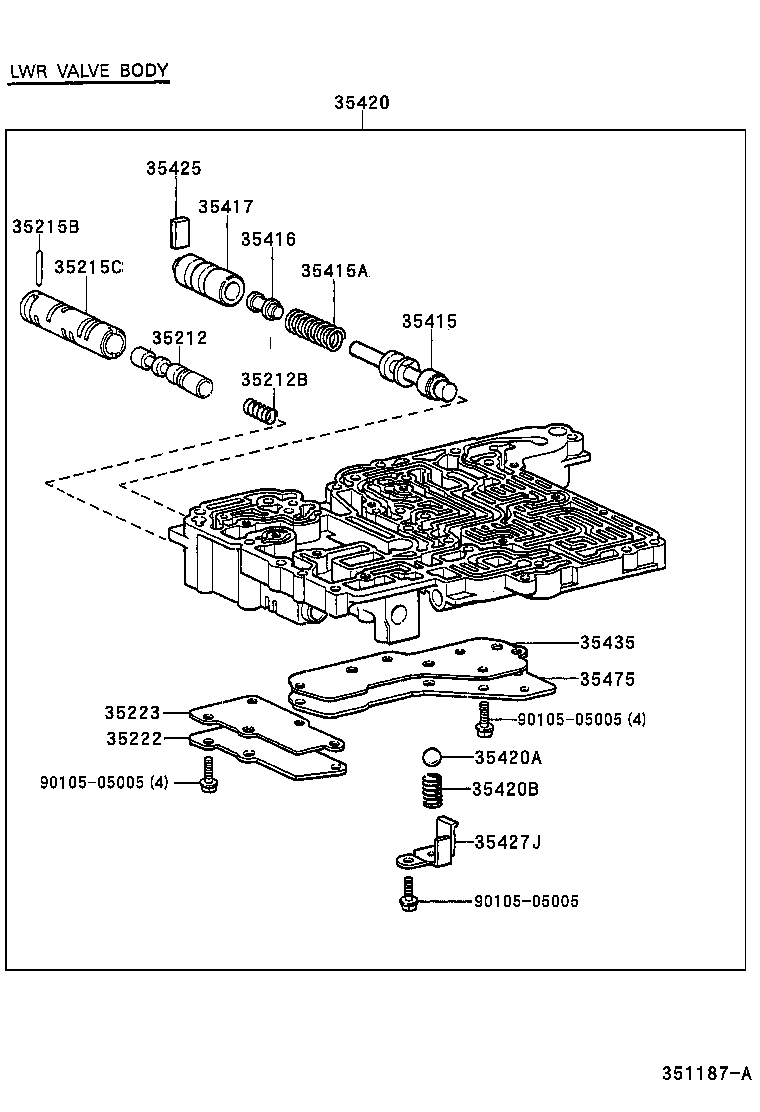

ILLUST NO. 3 OF 3(9005- )ATM

Click highlighted areas on diagram

A46DE,A46DF

Part #	Description	Period	Qty
35212 - VALVE, LOCK UP RELAY
35202-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
90501-10113	TCR1#,2#..ATM	05/1990 - 12/1999	1
35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)
90250-04027	TCR1#,2#..ATM	05/1990 - 12/1999	1
35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1
35215-30013	TCR1#,2#..ATM	05/1990 - 07/1997	1
35222 - PLATE, LOCK UP RELAY VALVE BODY
35222-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35223 - GASKET, LOCK UP RELAY VALVE BODY
35223-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35415 - VALVE, PRESSURE REGULATOR
35203-30011	TCR1#,2#..ATM	05/1990 - 07/1997	1
35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
90501-17021	TCR1#,2#..ATM	05/1990 - 09/1997	1
35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35416-14010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35417 - SLEEVE, PRESSURE REGULATOR VALVE
35417-14010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35420 - BODY ASSY, LOWER VALVE
35420-30172	TCR1#,2#..ATM	05/1990 - 07/1997	1
35420A - BALL (FOR PRESSURE RELIEF)
90360-13024	TCR1#,2#..ATM	05/1990 - 12/1999	1
35420B - SPRING (FOR PRESSURE RELIEF)
90501-18677	TCR1#,2#..ATM	05/1990 - 12/1999	1
35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE
35425-14010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35427J - SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF)
35427-30020	TCR1#,2#..ATM	05/1990 - 12/1999	1
35435 - GASKET, VALVE BODY PLATE, NO.3
35435-30040	TCR1#,2#..ATM	05/1990 - 12/1999	1
35475 - COVER, VALVE BODY, NO.5
35475-30040	TCR1#,2#..ATM	05/1990 - 12/1999	1
Common parts
90105-05005

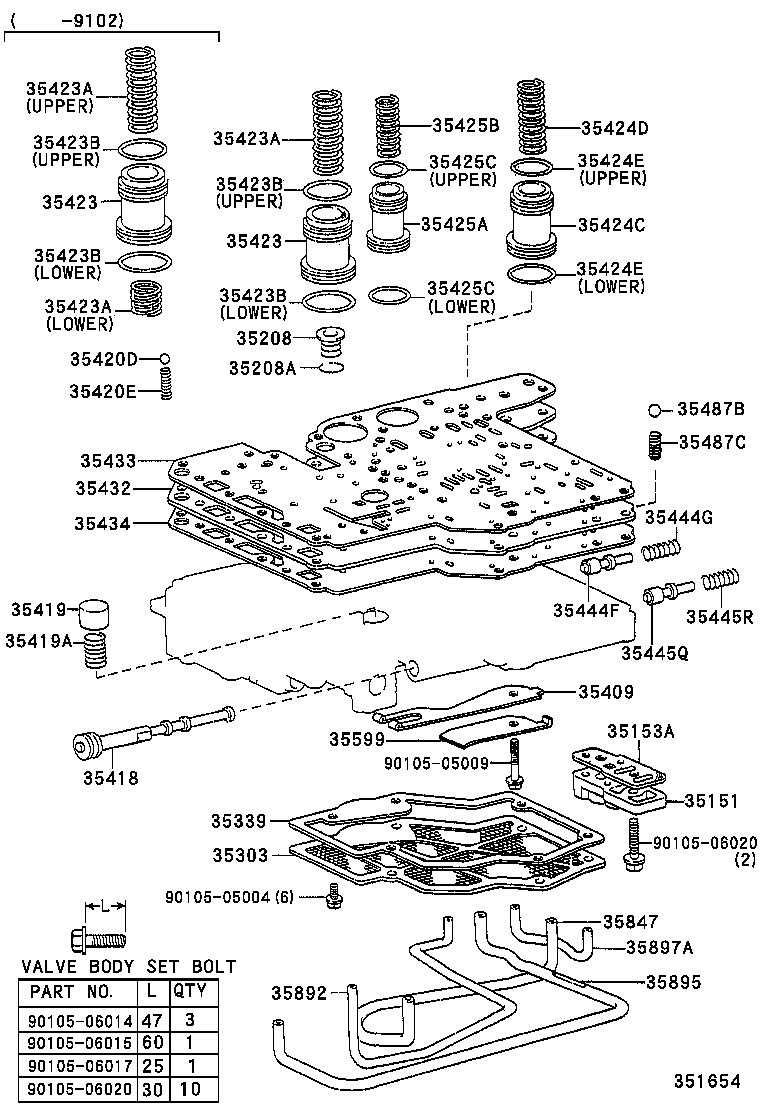

ILLUST NO. 1 OF 3(9005- )ATM

Click highlighted areas on diagram

A46DE,A46DF

Part #	Description	Period	Qty
35151 - COVER, TRANSMISSION CASE, LOWER
35151-30020	TCR1#,2#..ATM	05/1990 - 12/1999	1
35153A - GASKET, TRANSMISSION CASE LOWER COVER
35153-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35303 - STRAINER SUB-ASSY, OIL
35303-30060	TCR1#,2#..ATM	05/1990 - 12/1999	1
35339 - GASKET, OIL STRAINER
35339-30060	TCR1#,2#..ATM..ARL	05/1990 - 12/1990	1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-28010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35418 - VALVE, MANUAL
35418-30060	TCR1#,2#..ATM	05/1990 - 12/1999	1
35419 - VALVE, CHECK, NO.1
35419-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35419A - SPRING, COMPRESSION (FOR CHECK VALVE)
90501-15015	TCR1#,2#..ATM	05/1990 - 03/1995	1
35420D - BALL (FOR LOWER VALVE BODY)
35496-22030	TCR1#,2#..ATM OD=6.35,RUBBER	05/1990 - 12/1999	1
35420E - SPRING (FOR LOWER VALVE BODY)
90501-04727	TCR1#,2#..ATM	05/1990 - 12/1999	1
35423 - PISTON, B-2 ACCUMULATOR
35421-22040	TCR1#,2#..ATM	05/1990 - 02/1991	1
35423 - PISTON, B-2 ACCUMULATOR
35421-22040	TCR1#,2#..ATM	05/1990 - 02/1991	1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-19007	TCR1#,2#..ATM LOWER	05/1990 - 02/1991	1
90501-19008	TCR1#,2#..ATM UPPER	05/1990 - 02/1991	1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-19007	TCR1#,2#..ATM LOWER	05/1990 - 02/1991	1
90501-19008	TCR1#,2#..ATM UPPER	05/1990 - 02/1991	1
35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
90501-19007	TCR1#,2#..ATM LOWER	05/1990 - 02/1991	1
90501-19008	TCR1#,2#..ATM UPPER	05/1990 - 02/1991	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-23194	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
90301-29187	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-23194	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
90301-29187	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-23194	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
90301-29187	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
35423B - RING, O (FOR B-2 ACCUMULATOR PISTON)
90301-23194	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
90301-29187	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
35424C - PISTON, C-1 ACCUMULATOR
35421-22030	TCR1#,2#..ATM	05/1990 - 12/1999	1
35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-20063	TCR1#,2#..ATM	05/1990 - 12/1999	1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-22185	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
90301-26190	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-22185	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
90301-26190	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
35425A - PISTON, C-2 ACCUMULATOR
35441-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-27013	TCR1#,2#..ATM	05/1990 - 12/1999	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-26190	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
90301-18186	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
35425C - RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-26190	TCR1#,2#..ATM LOWER	05/1990 - 08/1998	1
90301-18186	TCR1#,2#..ATM UPPER	05/1990 - 08/1998	1
35432 - PLATE, VALVE BODY, NO.1
35432-22100	TCR1#,2#..ATM	05/1990 - 02/1991	1
35433 - GASKET, VALVE BODY, NO.1
35433-30072	TCR1#,2#..ATM	05/1990 - 06/1993	1
35434 - GASKET, VALVE BODY, NO.2
35434-30062	TCR1#,2#..ATM	05/1990 - 06/1993	1
35444F - VALVE, INTERMEDIATE COAST MODULATOR
35444-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35444G - SPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)
90501-09686	TCR1#,2#..ATM	05/1990 - 12/1999	1
35445Q - VALVE, LOW COAST MODULATOR
35444-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)
90501-08725	TCR1#,2#..ATM	05/1990 - 12/1999	1
35487B - BALL, CHECK, NO.4
35487-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35487C - SPRING, COMPRESSION (FOR CHECK BALL)
90504-05006	TCR1#,2#..ATM	05/1990 - 12/1999	1
35599 - COVER, MANUAL DETENT SPRING
35599-28010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35847 - TUBE, TRANSMISSION LUBE APPLY
35847-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35892 - TUBE, OVERDRIVE BRAKE
35892-30030	TCR1#,2#..ATM	05/1990 - 03/1997	1
35895 - TUBE, FRONT CLUTCH APPLY
35895-30030	TCR1#,2#..ATM	05/1990 - 12/1999	1
35897A - TUBE, 1ST & REVERSE BRAKE, NO.1
35897-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
Common parts
90105-05004
90105-05009
90105-06014
90105-06015
90105-06017
90105-06020

ILLUST NO. 2 OF 3(9005- )ATM

Click highlighted areas on diagram

A46DE,A46DF

Part #	Description	Period	Qty
35422F - STOPPER, VALVE VIBRATING
35422-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35430 - BODY ASSY, REAR UPPER VALVE
35430-30120	TCR1#,2#..ATM	05/1990 - 09/1994	1
35430A - BALL (FOR REAR UPPER VALVE BODY)
90360-06023	TCR1#,2#..ATM 0D=5.56	05/1990 - 12/1999	6
35436A - GASKET, VALVE BODY PLATE, NO.4
35436-30050	TCR1#,2#..ATM	05/1990 - 12/1999	1
35440 - BODY ASSY, FRONT UPPER VALVE
35440-22130	TCR1#,2#..ATM	05/1990 - 02/1991	1
35443A - SLEEVE, DOWN SHIFT PLUG
35443-30010	TCR1#,2#..ATM	05/1990 - 03/1994	1
35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE)
90250-03034	TCR1#,2#..ATM	05/1990 - 12/1999	1
35447A - VALVE, REVERSE CLUTCH SEQUENCE
35447-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35447B - SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE)
90501-12726	TCR1#,2#..ATM	05/1990 - 09/1994	1
35456 - VALVE, 2-3 SHIFT
35456-30050	TCR1#,2#..ATM	05/1990 - 12/1999	1
35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
90501-09028	TCR1#,2#..ATM	05/1990 - 12/1999	1
35456C - PLUG (FOR 2-3 SHIFT VALVE)
90339-05014	TCR1#,2#..ATM	05/1990 - 12/1999	1
35458D - VALVE, CUT BACK
35458-30020	TCR1#,2#..ATM	05/1990 - 12/1999	1
35458E - PLUG (FOR CUT BACK VALVE)
35459-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35458F - SEAT (FOR CUT BACK VALVE)
35493-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE)
90501-06022	TCR1#,2#..ATM	05/1990 - 12/1999	1
35461 - PLUG, DOWN SHIFT
35408-30020	TCR1#,2#..ATM	05/1990 - 03/1994	1
35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)
90501-11011	TCR1#,2#..ATM	05/1990 - 12/1999	1
35462 - VALVE, THROTTLE
35462-22011	TCR1#,2#..ATM	05/1990 - 12/1999	1
35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE)
90501-07680	TCR1#,2#..ATM L=19.24	05/1990 - 12/1997	1
35462D - RING, E (FOR THROTTLE VALVE)
90523-06023	TCR1#,2#..ATM	05/1990 - 12/1999	1
35464 - VALVE, 1-2 SHIFT
35464-30030	TCR1#,2#..ATM	05/1990 - 12/1999	1
35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
90501-09028	TCR1#,2#..ATM	05/1990 - 12/1999	1
35468C - VALVE, SECONDARY REGULATOR
35204-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
90501-19001	TCR1#,2#..ATM	05/1990 - 12/1999	1
35469G - PLUG, REVERSE CLUTCH SEQUENCE VALVE
35469-30020	TCR1#,2#..ATM	05/1990 - 12/1999	1
35469H - ROLLER (FOR REVERSE CLUTCH SEQUENCE VALVE)
90361-02051	TCR1#,2#..ATM	05/1990 - 12/1999	1
35472 - COVER, VALVE BODY, NO.2
35472-30010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35473 - COVER, TRANSMISSION VALVE BODY
35473-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
35493D - SEAT, 3-4 SHIFT VALVE PLUG
35493-30030	TCR1#,2#..ATM	05/1990 - 12/1999	1
35493Y - SEAT, 2-3 SHIFT VALVE PLUG
35493-30030	TCR1#,2#..ATM	05/1990 - 12/1999	1
35497 - VALVE, 3-4 SHIFT
35497-30030	TCR1#,2#..ATM	05/1990 - 12/1999	1
35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
90501-09028	TCR1#,2#..ATM	05/1990 - 12/1999	1
35497C - PLUG (FOR 3-4 SHIFT VALVE)
90339-05014	TCR1#,2#..ATM	05/1990 - 12/1999	1
35521 - CAM, THROTTLE VALVE
35521-22050	TCR1#,2#..ATM	05/1990 - 02/1991	1
35521A - SPRING (FOR THROTTLE VALVE CAM RETURN)
90508-12331	TCR1#,2#..ATM	05/1990 - 12/1999	1
35521B - WASHER (FOR THROTTLE VALVE CAM SET)
90201-06472	TCR1#,2#..ATM	05/1990 - 12/1999	1
35522 - PIN, THROTTLE VALVE CAM
35522-22010	TCR1#,2#..ATM	05/1990 - 12/1999	1
Common parts
90105-05001
90105-05002
90105-05003
90105-05005
90105-05033
90105-06018
90119-05023
