TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9308)TCR2#..ATM

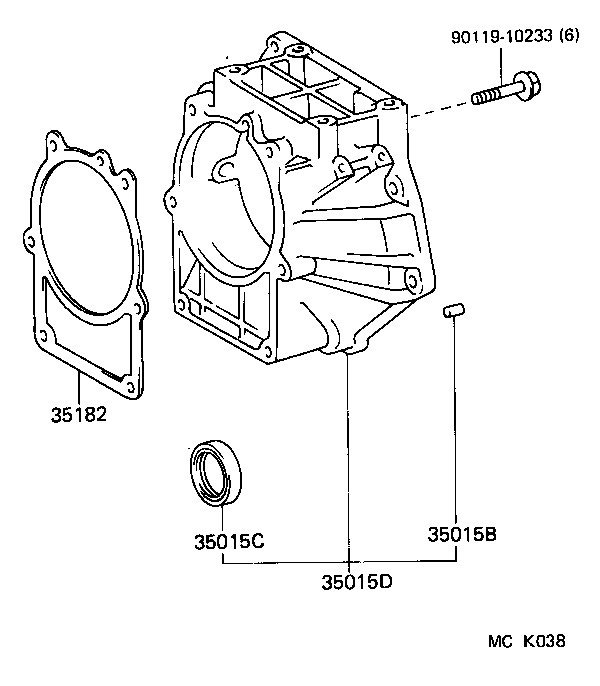

Click highlighted areas on diagram

A46DF

diagram 35015B 35015C 35015D 35182 9011910233
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90250-10214

TCR2#..ATM

 2
35015C - SEAL, OIL(FOR TRANSMISSION CASE ADAPTER)
90310-40003

TCR2#..ATM

 1
35015D - ADAPTER SUB-ASSY, TRANSMISSION CASE
35015-26010

TCR2#..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

TCR1#,2#..ATM..ARL

 1
Common parts
90119-10233
