TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )ATM

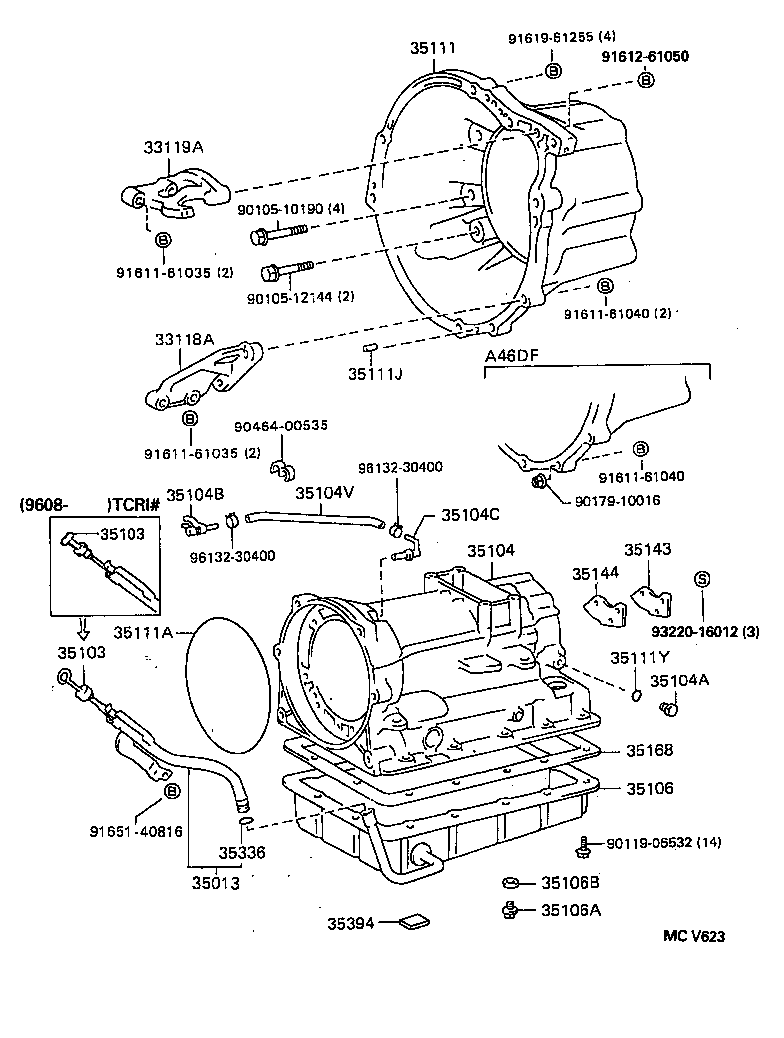

Click highlighted areas on diagram
A46DE,A46DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33119A - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-28030 |
TCR1#,2#..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-28060 |
TCR1#,2#..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-28030 |
TCR1#,2#..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-28030 |
TCR1#,2#..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-28020 |
TCR2#..ATM |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TCR1#,2#..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
TCR1#,2#..ATM |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03122 |
TCR1#,2#..ATM |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11084 |
TCR1#,2#..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35107-28030 |
TCR2#..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
TCR1#,2#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
TCR1#,2#..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-28020 |
TCR1#,2#..ATM |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
TCR1#,2#..ATM |
1 | ||
| 35111J - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR1#,2#..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TCR1#,2#..ATM |
2 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
TCR1#,2#..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
TCR1#,2#..ATM..ARL |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
TCR1#,2#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
TCR1#,2#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
TCR1#,2#..ATM |
2 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-06532 | ||||
| 90179-10016 | ||||
| 90464-00535 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91612-61050 | ||||
| 91619-61255 | ||||
| 91651-40816 | ||||
| 93220-16012 | ||||
| 96132-30400 | ||||
