TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )ATM

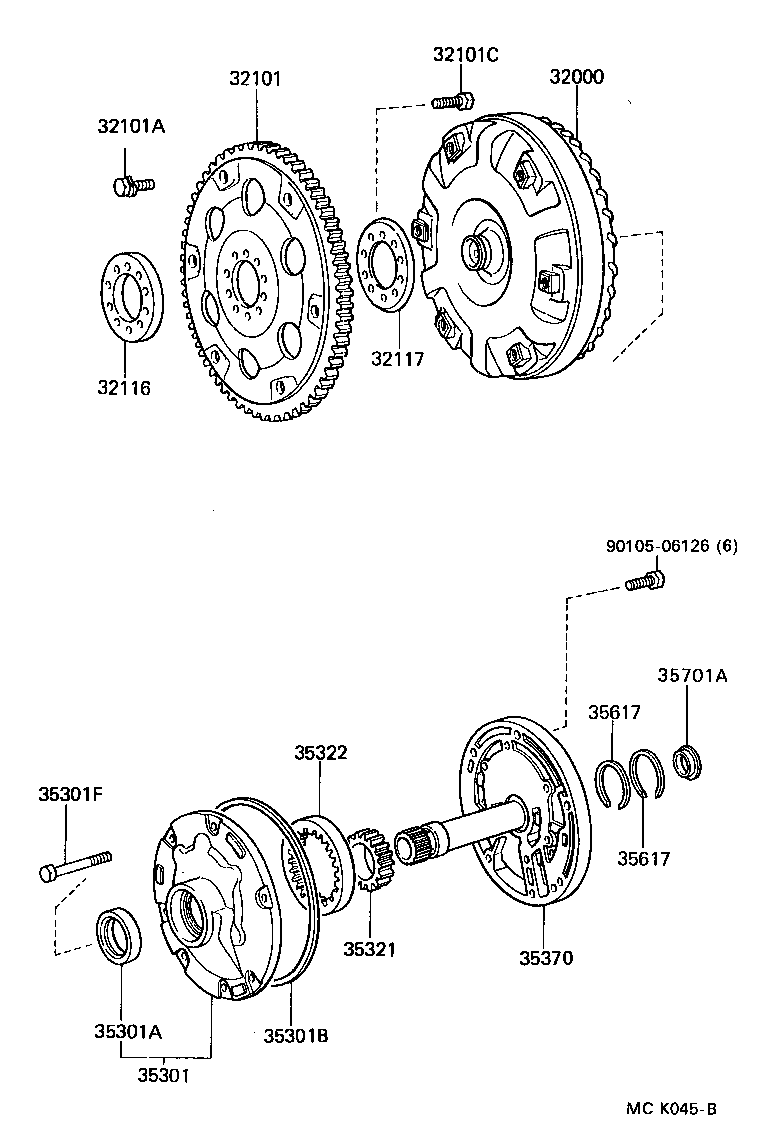

Click highlighted areas on diagram

A46DE,A46DF

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35321 35322 35370 35617 35617 35701A 9010506126
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-28030

TCR1#,2#..ATM..(DX,GL)

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-26010

TCR1#,2#..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09010

TCR1#,2#..ATM

*9-1.25PX12.8-9,OLIVE GREEN

 1
90119-09009

TCR1#,2#..ATM

*9-1.25PX12.8-8.8,YELLOW

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10276

TCR1#,2#..ATM

 10
32116 - SPACER, DRIVE PLATE, FRONT
32116-26010

TCR1#,2#..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-26010

TCR1#,2#..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-14010

TCR1#,2#..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

TCR1#,2#..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

TCR1#,2#..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

TCR1#,2#..ATM

 7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22020

TCR1#,2#..ATM

T=17.244-17.235

 1
35321-22030

TCR1#,2#..ATM

T=17.254-17.245

 1
35321-22050

TCR1#,2#..ATM

T=17.275-17.266

 1
35321-22040

TCR1#,2#..ATM

T=17.265-17.255

 1
35321-22060

TCR1#,2#..ATM

T=17.285-17.276

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22020

TCR1#,2#..ATM

T=17.244-17.235

 1
35322-22060

TCR1#,2#..ATM

T=17.285-17.276

 1
35322-22030

TCR1#,2#..ATM

T=17.254-17.245

 1
35322-22040

TCR1#,2#..ATM

T=17.265-17.255

 1
35322-22050

TCR1#,2#..ATM

T=17.275-17.266

 1
35370 - SHAFT ASSY, STATOR
35370-14012

TCR1#,2#..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010

TCR1#,2#..ATM

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010

TCR1#,2#..ATM

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

TCR1#,2#..ATM

 1
Common parts
90105-06126
