TCR20R-RFSDKQ (1990)
Toyota Previa
Production
May 1990
-
Aug 1991
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9005- )RHD..ATM

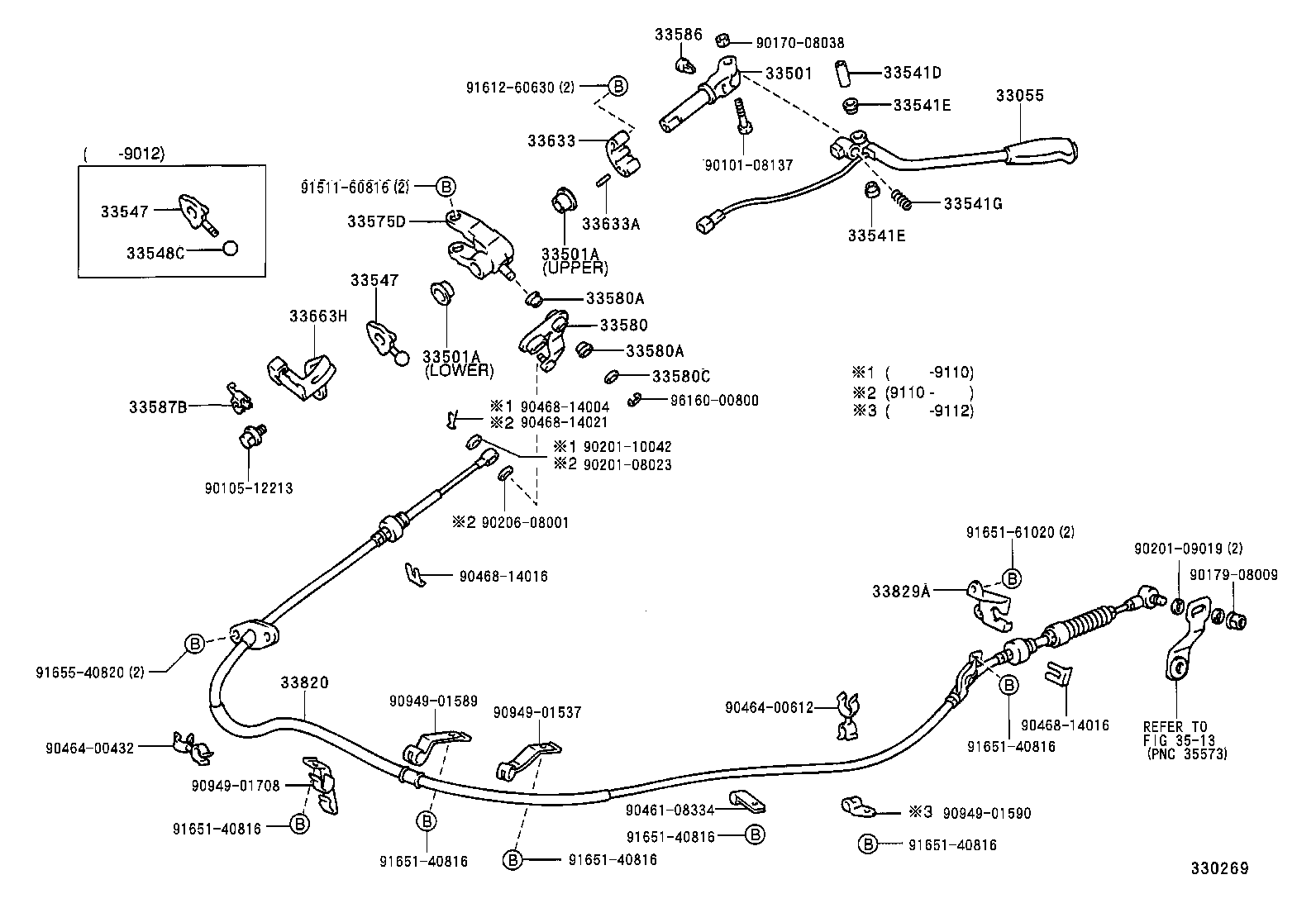

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33055 - LEVER SUB-ASSY, COLUMN SHIFT | ||||
| 33055-28091 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-28160 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90386-18003 |
TCR1#,2#..ATM LOWER |
1 | ||
| 90386-18004 |
TCR1#,2#..ATM UPPER |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90386-18003 |
TCR1#,2#..ATM LOWER |
1 | ||
| 90386-18004 |
TCR1#,2#..ATM UPPER |
1 | ||
| 33541D - COLLAR (FOR COLUMN SHIFT LEVER) | ||||
| 90387-08112 |
TCR1#,2#..ATM |
1 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-12013 |
TCR1#,2#..ATM |
2 | ||
| 33541E - BUSH (FOR COLUMN SHIFT LEVER) | ||||
| 90386-12013 |
TCR1#,2#..ATM |
2 | ||
| 33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER) | ||||
| 90501-16130 |
TCR1#,2#..ATM |
1 | ||
| 33547 - LEVER, COLUMN SHIFT, NO.3 | ||||
| 33547-28011 |
TCR1#,2#..ATM |
1 | ||
| 33547-28010 |
TCR1#,2#..ATM |
1 | ||
| 33547 - LEVER, COLUMN SHIFT, NO.3 | ||||
| 33547-28011 |
TCR1#,2#..ATM |
1 | ||
| 33547-28010 |
TCR1#,2#..ATM |
1 | ||
| 33548C - BUSH, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33548-28010 |
TCR1#,2#..ATM |
1 | ||
| 33575D - RETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33575-28040 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT) | ||||
| 33580-28020 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33580A - BUSH (FOR SHIFTING BELLCRANK) | ||||
| 90386-10017 |
TCR1#,2#..ATM |
2 | ||
| 33580A - BUSH (FOR SHIFTING BELLCRANK) | ||||
| 90386-10017 |
TCR1#,2#..ATM |
2 | ||
| 33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK) | ||||
| 90201-10119 |
TCR1#,2#..ATM |
1 | ||
| 33586 - STOPPER, CONTROL SHIFT LEVER | ||||
| 33586-28010 |
TCR1#,2#..ATM |
1 | ||
| 33587B - BUSH, LEVER SELECTING | ||||
| 33587-28031 |
TCR1#,2#..ATM |
1 | ||
| 33633 - PLATE, COLUMN SHIFT LEVER DETENT | ||||
| 33633-28111 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33633A - PIN, SLOTTED SPRING(FOR COLUMN SHIFT LEVER DETENT PLATE | ||||
| 90254-04036 |
TCR1#,2#..ATM |
2 | ||
| 33663H - LEVER, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33663-28020 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) | ||||
| 33820-28220 |
TCR1#,2#..RHD..ATM |
1 | ||
| 33829A - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-28010 |
TCR1#,2#..ATM |
1 | ||
| Common parts | ||||
| 90101-08137 | ||||
| 90105-12213 | ||||
| 90170-08038 | ||||
| 90179-08009 | ||||
| 90201-08023 | ||||
| 90201-09019 | ||||
| 90201-10042 | ||||
| 90206-08001 | ||||
| 90461-08334 | ||||
| 90464-00432 | ||||
| 90464-00612 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90468-14021 | ||||
| 90949-01537 | ||||
| 90949-01589 | ||||
| 90949-01590 | ||||
| 90949-01708 | ||||
| 91511-60816 | ||||
| 91612-60630 | ||||
| 91651-40816 | ||||
| 91651-61020 | ||||
| 91655-40820 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 3513 | ||||
