TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9608)

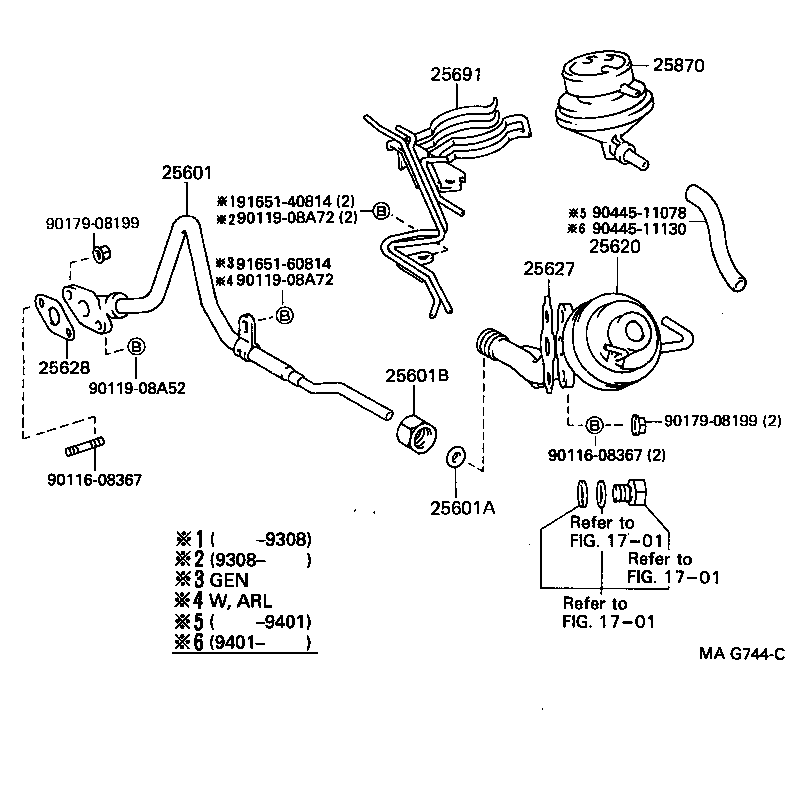

Click highlighted areas on diagram

diagram 1701 1701 1701 25601 25601A 25601B 25620 25627 25628 25691 25870 9011608367 9011608367 9011908A52 9011908A72 9011908A72 9017908199 9017908199 9044511078 9044511130 9165140814 9165160814
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-76010

2TZFE..TCR1#,2#..ARL,W

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

2TZFE..TCR1#,2#..ARL,W

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

2TZFE..TCR1#,2#..ARL,W

 1
25620 - VALVE ASSY, EGR
25620-76010

2TZFE..TCR1#,2#..ARL,W

 1
25627 - GASKET, EGR VALVE
25627-76010

2TZFE..TCR1#,2#..ARL,W

 1
25628 - GASKET, EGR INLET
25628-76010

2TZFE..TCR1#,2#..ARL,W

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-76010

2TZFE..TCR1#,2#..ARL,W

 1
25870 - VALVE ASSY, EGR VACUUM MODULATOR
25870-76010

2TZFE..TCR1#,2#..ARL,W

 1
Common parts
90116-08367
90119-08A52
90119-08A72
90179-08199
90445-11078
90445-11130
91651-40814
91651-60814
Linked diagrams
1701
