TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

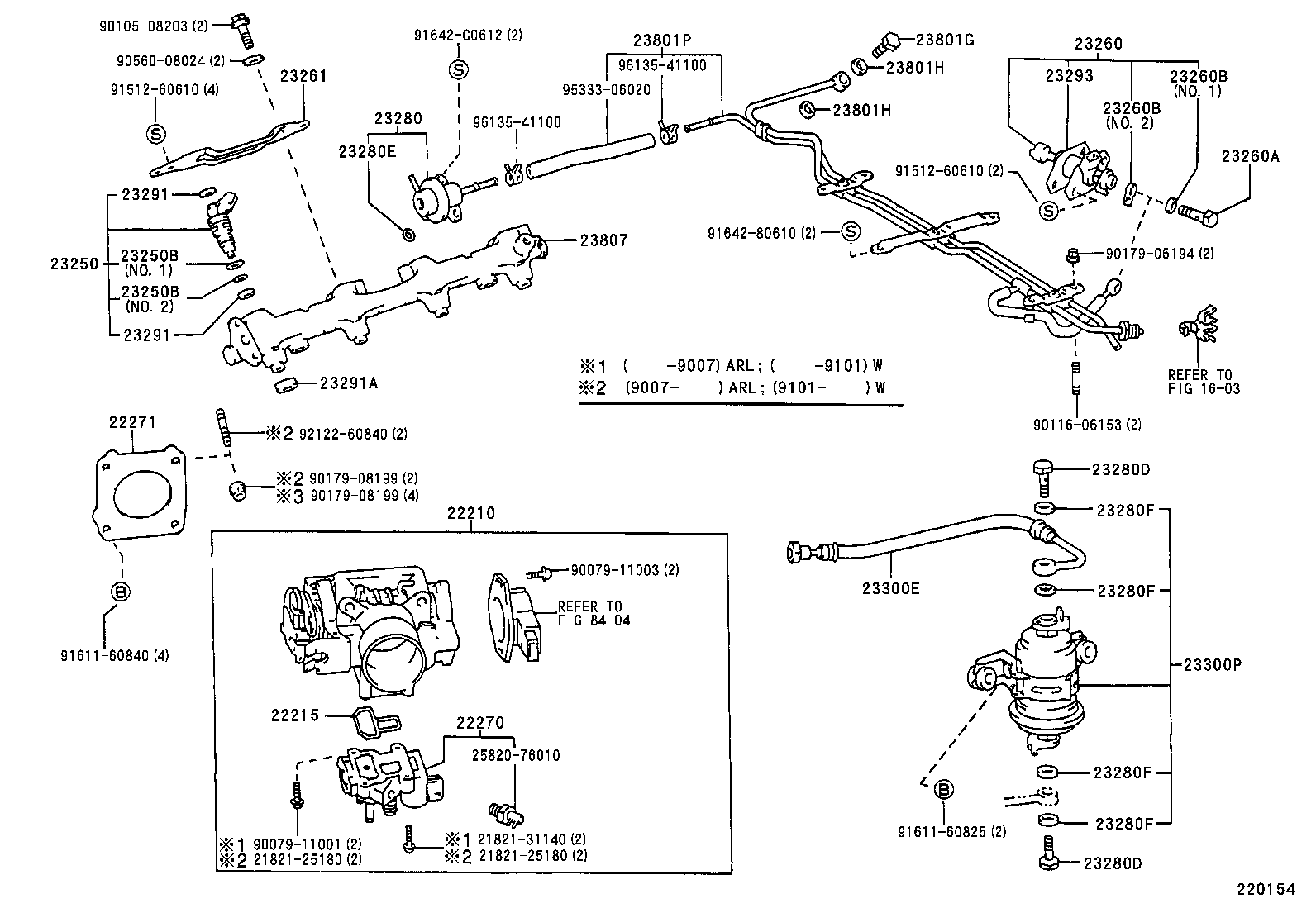

ILLUST NO. 1 OF 2(9005-9308)

Click highlighted areas on diagram

diagram 1603 2182125180 2182125180 2182131140 22210 22215 22270 22271 23250 23250B 23250B 23260 23260A 23260B 23260B 23261 23280 23280D 23280D 23280E 23280F 23280F 23280F 23280F 23291 23291 23291A 23293 23300E 23300P 23801G 23801H 23801H 23801P 23807 2582076010 8404 9007911001 9007911003 9010508203 9011606153 9017906194 9017908199 9017908199 9056008024 9151260610 9151260610 9161160825 9161160840 9164280610 91642C0612 9212260840 9533306020 9613541100 9613541100
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-76010

2TZFE..TCR1#,2#

 1
22210-76030

2TZFE..TCR1#,2#..ARL

 1
22215 - GASKET, THROTTLE BODY COVER
22215-76010

2TZFE..TCR1#,2#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-76010

2TZFE..TCR1#,2#

 1
22271 - GASKET, THROTTLE BODY
22271-76010

2TZFE..TCR1#,2#

 1
23250 - INJECTOR ASSY, FUEL
23209-79045

2TZFE..TCR1#,2#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-14006

2TZFE..TCR1#,2#

NO.1

 4
90301-17007

2TZFE..TCR1#,2#

NO.2

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-14006

2TZFE..TCR1#,2#

NO.1

 4
90301-17007

2TZFE..TCR1#,2#

NO.2

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-79205

2TZFE..TCR1#,2#

 1
23260A - BOLT, UNION
90401-08004

2TZFE..TCR1#,2#

 1
23260B - GASKET
90430-08011

2TZFE..TCR1#,2#

NO.2

 1
90430-08009

2TZFE..TCR1#,2#

NO.1

 1
23260B - GASKET
90430-08011

2TZFE..TCR1#,2#

NO.2

 1
90430-08009

2TZFE..TCR1#,2#

NO.1

 1
23261 - COVER, INJECTOR
23261-76010

2TZFE..TCR1#,2#

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-76010

2TZFE..TCR1#,2#

 1
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-12097

2TZFE..TCR1#,2#

 2
23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET)
90401-12097

2TZFE..TCR1#,2#

 2
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001

2TZFE..TCR1#,2#

 1
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-12005

2TZFE..TCR1#,2#

 4
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-12005

2TZFE..TCR1#,2#

 4
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-12005

2TZFE..TCR1#,2#

 4
23280F - GASKET(FOR FUEL PRESSURE REGULATOR)
90430-12005

2TZFE..TCR1#,2#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-75020

2TZFE..TCR1#,2#

 8
23291 - INSULATOR, INJECTOR VIBRATION
23291-75020

2TZFE..TCR1#,2#

 8
23291A - INSULATOR, INJECTOR VIBRATION
23291-76010

2TZFE..TCR1#,2#

 4
23293 - GASKET, COLD START INJECTOR
23293-75010

2TZFE..TCR1#,2#

 1
23300E - HOSE, FUEL
90923-01370

2TZFE..TCR1#,2#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79285

2TZFE..TCR1#,2#..ARL,W

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

2TZFE..TCR1#,2#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12026

2TZFE..TCR1#,2#

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12026

2TZFE..TCR1#,2#

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-76020

2TZFE..TCR1#,2#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-76010

2TZFE..TCR1#,2#

 1
Common parts
21821-25180
21821-31140
25820-76010
90079-11001
90079-11003
90105-08203
90116-06153
90179-06194
90179-08199
90560-08024
91512-60610
91611-60825
91611-60840
91642-80610
91642-C0612
92122-60840
95333-06020
96135-41100
Linked diagrams
1603
8404

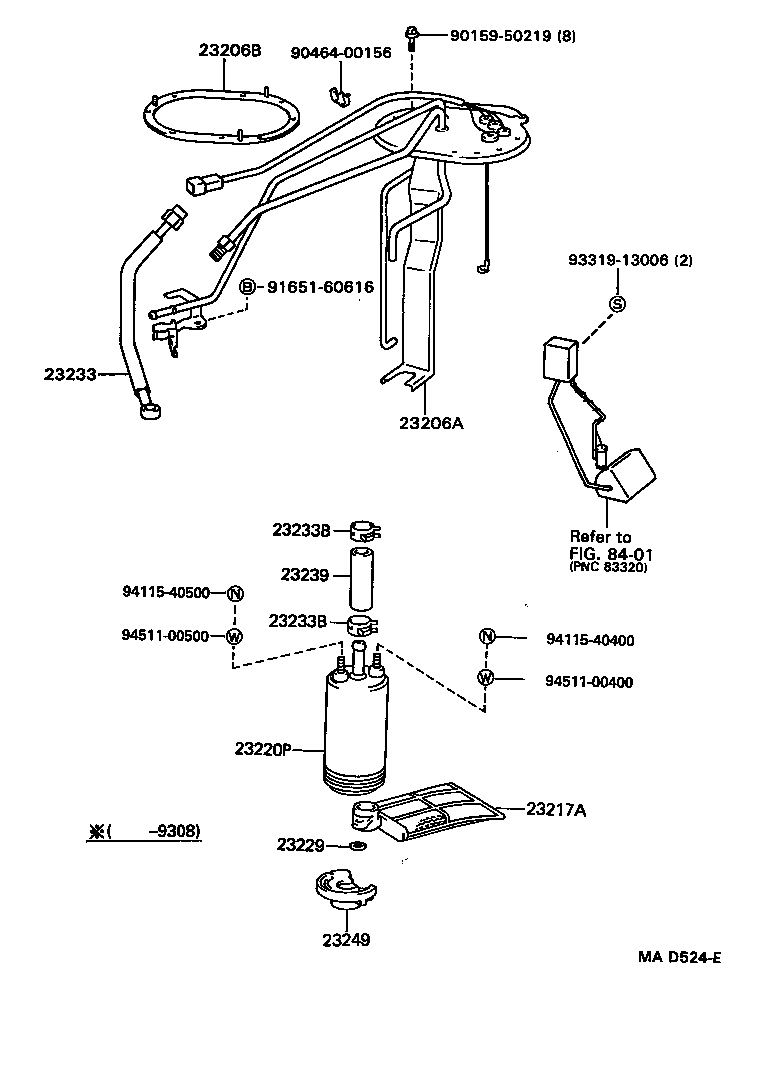

ILLUST NO. 2 OF 2(9005-9401)

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23239 23249 8401 9015950219 9046400156 9165160616 9331913006 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23206A - BRACKET, FUEL PUMP
23206-76010

2TZFE..TCR1#,2#

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-20040

2TZFE..TCR1#,2#

 1
23217A - FILTER, FUEL PUMP
23217-11010

2TZFE..TCR1#,2#

 1
23220P - PUMP ASSY, FUEL
23220-43070

2TZFE..TCR1#,2#..ARL,W

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

2TZFE..TCR1#,2#

 1
23233 - HOSE, FUEL PUMP
23091-76010

2TZFE..TCR1#,2#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

2TZFE..TCR1#,2#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

2TZFE..TCR1#,2#

 2
23239 - HOSE
23239-63010

2TZFE..TCR1#,2#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

2TZFE..TCR1#,2#

 1
Common parts
90159-50219
90464-00156
91651-60616
93319-13006
94115-40400
94115-40500
94511-00400
94511-00500
Linked diagrams
8401
