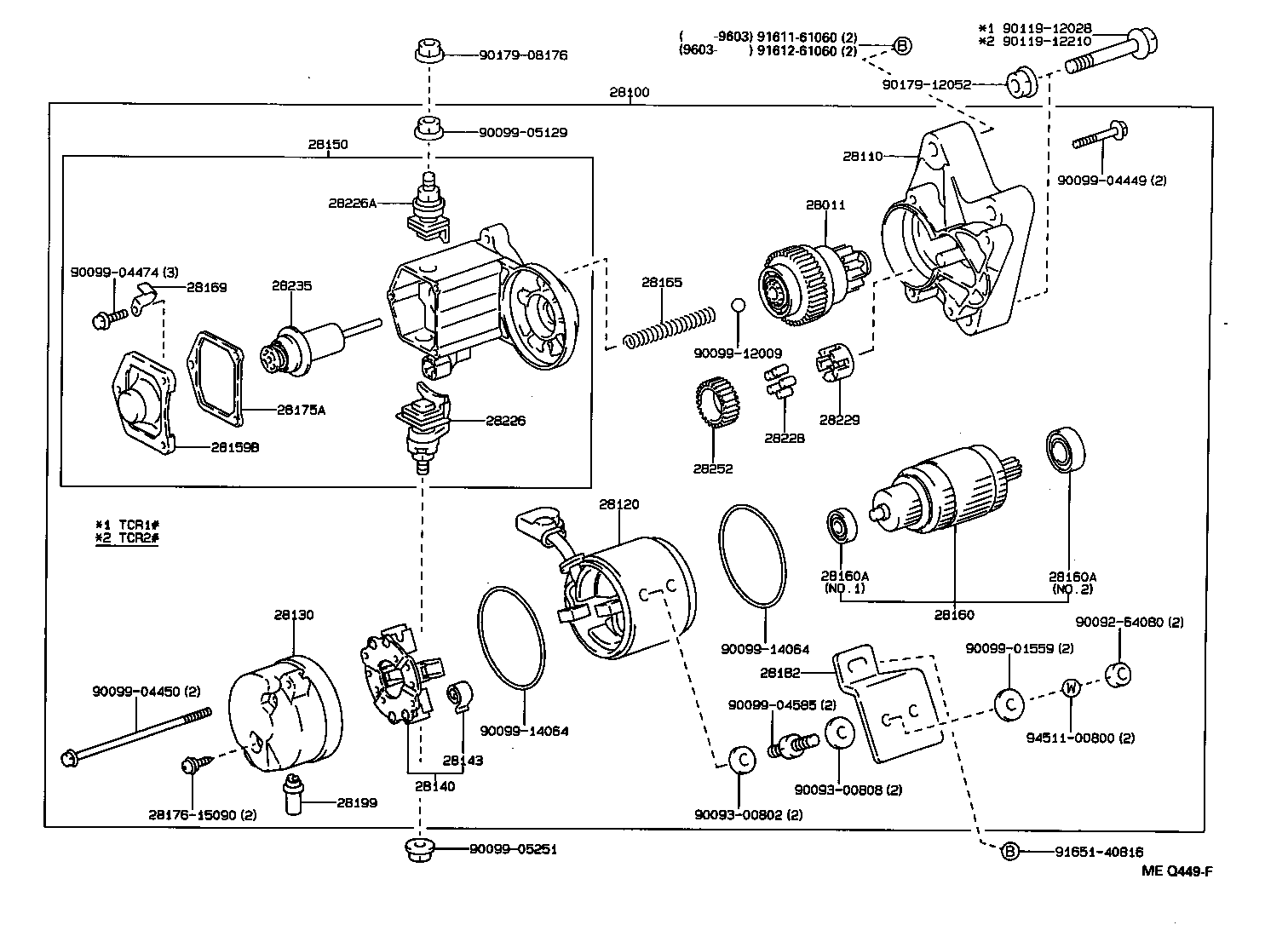

TCR20R-RFSDKQ (1990)
Toyota Previa
(9005- )
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-76060 |
2TZFE..TCR1#,2# 12V 1.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-76070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-76060 |
2TZFE..TCR1#,2# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-76060 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76060 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2TZFE..TCR1#,2# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-76070 |
2TZFE..TCR1#,2# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-76060 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2TZFE..TCR1#,2#..ARL,W NO.2 |
1 | ||
| 90099-10196 |
2TZFE..TCR1#,2#..ARL,W NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2TZFE..TCR1#,2#..ARL,W NO.2 |
1 | ||
| 90099-10196 |
2TZFE..TCR1#,2#..ARL,W NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-76060 |
2TZFE..TCR1#,2# |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-74070 |
2TZFE..TCR1#,2# |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76070 |
2TZFE..TCR1#,2# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2TZFE..TCR1#,2#..ARL,GEN,W |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90092-64080 | ||||
| 90093-00802 | ||||
| 90093-00808 | ||||
| 90099-00907 | ||||
| 90099-01559 | ||||
| 90099-04473 | ||||
| 90099-04585 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-12028 | ||||
| 90119-12210 | ||||
| 90179-08176 | ||||
| 90179-12052 | ||||
| 91611-61060 | ||||
| 91612-61060 | ||||
| 91651-40816 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

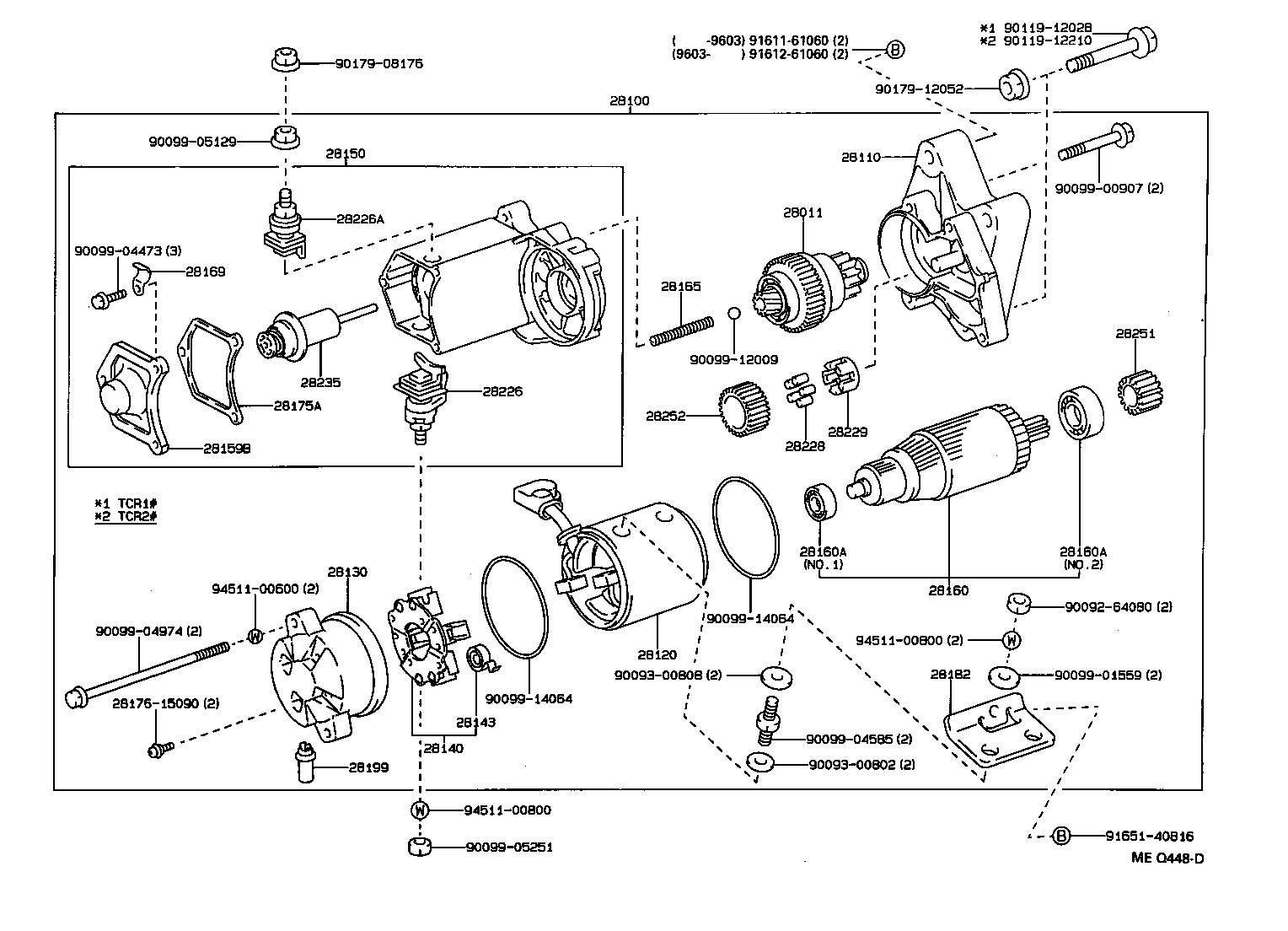

(9005- )
12V 1.2KW,1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-76060 |
2TZFE..TCR1#,2# 12V 1.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-76070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-76060 |
2TZFE..TCR1#,2# |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-76060 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-76060 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2TZFE..TCR1#,2# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-76070 |
2TZFE..TCR1#,2# |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-76060 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2TZFE..TCR1#,2#..ARL,W NO.2 |
1 | ||
| 90099-10196 |
2TZFE..TCR1#,2#..ARL,W NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10197 |
2TZFE..TCR1#,2#..ARL,W NO.2 |
1 | ||
| 90099-10196 |
2TZFE..TCR1#,2#..ARL,W NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28182 - STAY, STARTER COMMUTATOR END FRAME | ||||
| 28182-76060 |
2TZFE..TCR1#,2# |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-74070 |
2TZFE..TCR1#,2# |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-76070 |
2TZFE..TCR1#,2# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-74070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2TZFE..TCR1#,2#..ARL,GEN,W |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-55050 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-74070 |
2TZFE..TCR1#,2#..ARL,W |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90092-64080 | ||||
| 90093-00802 | ||||
| 90093-00808 | ||||
| 90099-01559 | ||||
| 90099-04449 | ||||
| 90099-04450 | ||||
| 90099-04474 | ||||
| 90099-04585 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-12028 | ||||
| 90119-12210 | ||||
| 90179-08176 | ||||
| 90179-12052 | ||||
| 91611-61060 | ||||
| 91612-61060 | ||||
| 91651-40816 | ||||
| 94511-00800 | ||||
