TCR20R-RFSDKQ (1990)
Toyota Previa
(9005-9108)

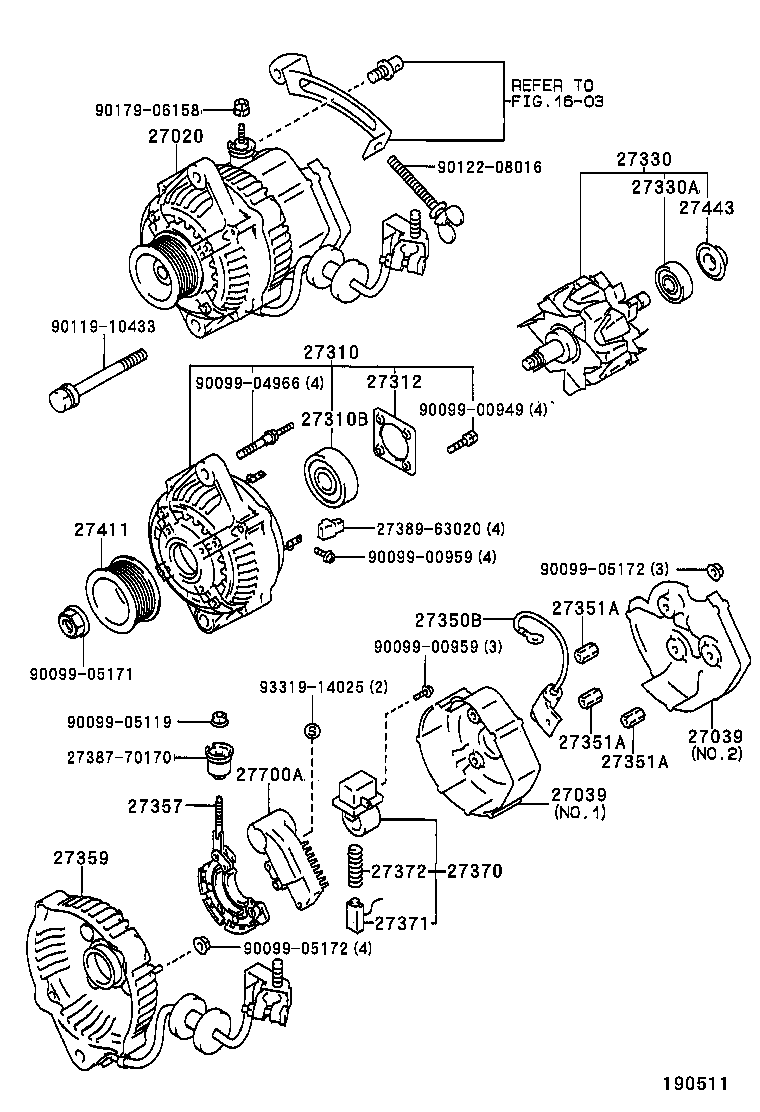

12V 70A(YELLOWWISH GREEN LABEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-76030 |
2TZFE..TCR1#,2#..ATM..ARL 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..ATM..ARL NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..ATM..ARL NO.1 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72210 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2TZFE..TCR1#,2# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
2TZFE..TCR1#,2# |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27350-76030 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2TZFE..TCR1#,2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9005-9108)

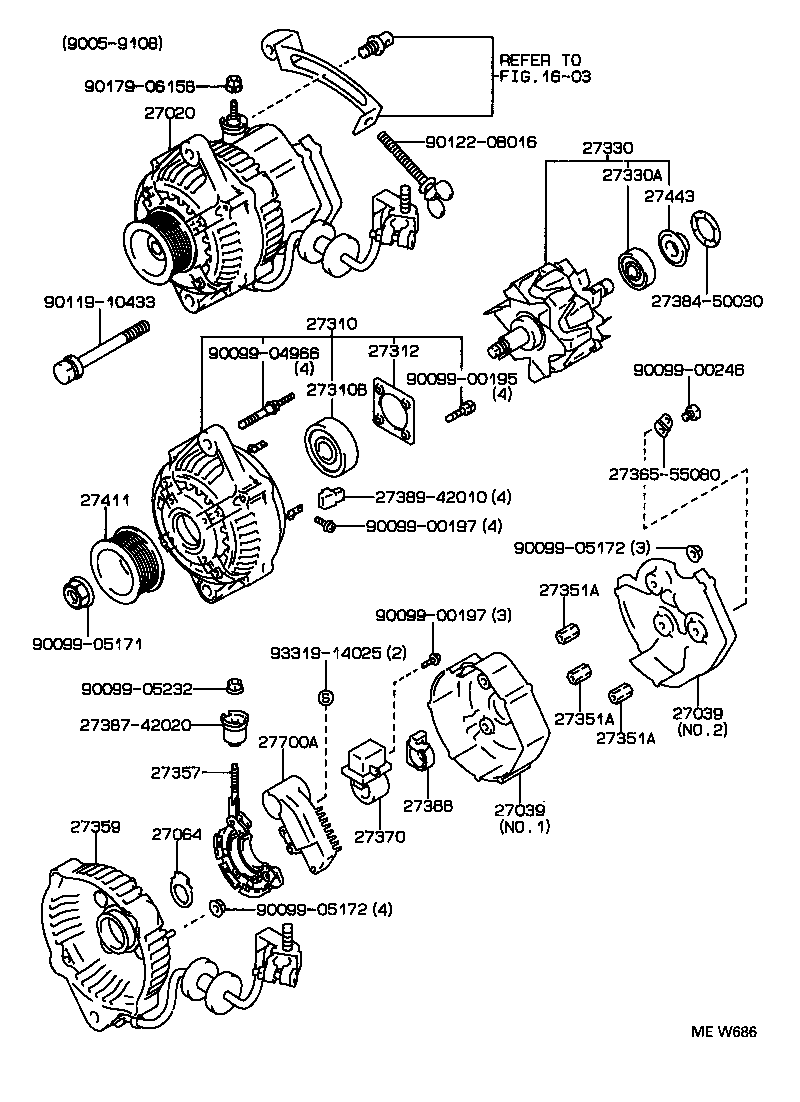

12V 70A(PINK LABEL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-76030 |
2TZFE..TCR1#,2#..ATM..ARL 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..ATM..ARL NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-76010 |
2TZFE..TCR1#,2# NO.2 |
1 | ||
| 27039-42010 |
2TZFE..TCR1#,2#..ATM..ARL NO.1 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2TZFE..TCR1#,21..LHD;2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72210 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2TZFE..TCR1#,2# |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-16130 |
2TZFE..TCR1#,2# |
3 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27350-76030 |
2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2TZFE..TCR1#,21..LHD;2TZFE..TCR1#,2#..ATM..ARL |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
2TZFE..TCR1#,2#..ATM..(ARL,GEN,V) |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2TZFE..TCR1#,2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
2TZFE..TCR1#,2# |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90119-10433 | ||||
| 90122-08016 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
