TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

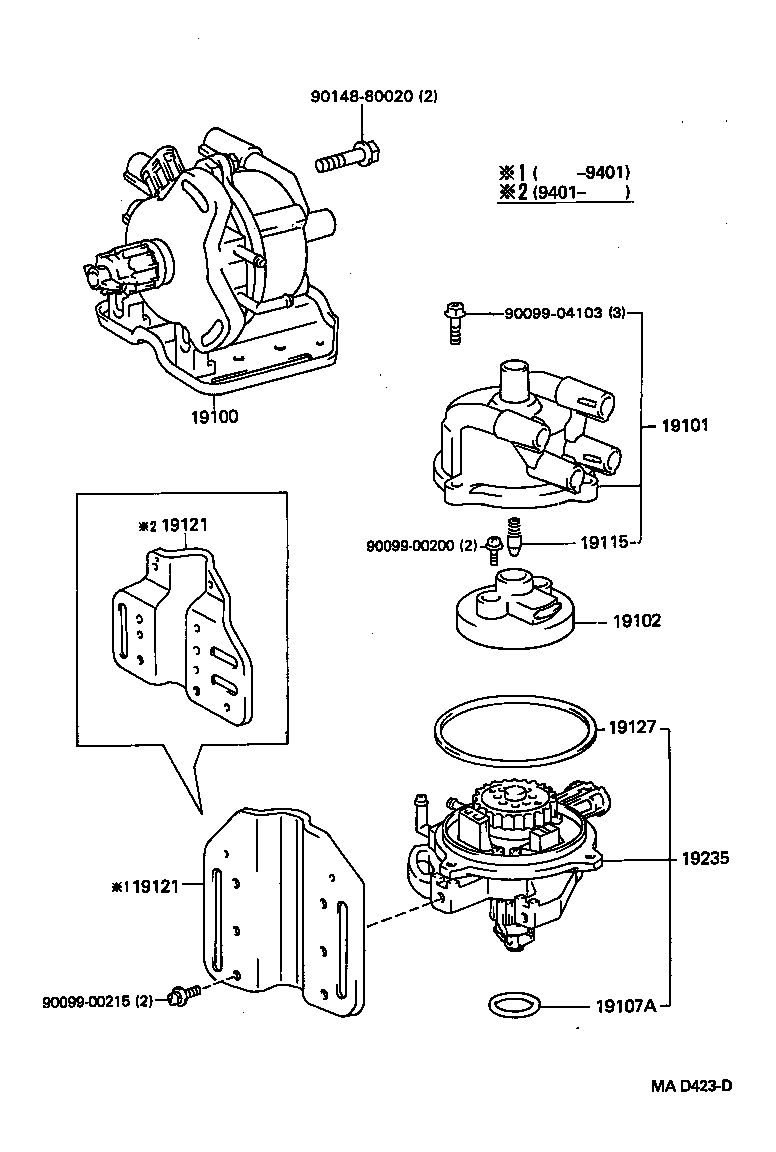

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19121 19121 19127 19235 9009900200 9009900215 9009904103 9014880020
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-76010

2TZFE..TCR1#,2#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-76010

2TZFE..TCR1#,2#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-74040

2TZFE..TCR1#,2#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

2TZFE..TCR1#,2#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

2TZFE..TCR1#,2#

 1
19121 - COVER, DUST PROOF
19121-76010

2TZFE..TCR1#,2#

 1
19121 - COVER, DUST PROOF
19121-76010

2TZFE..TCR1#,2#

 1
19127 - PACKING, DUST PROOF
19127-76010

2TZFE..TCR1#,2#

 1
19235 - HOUSING, DISTRIBUTOR
19235-76010

2TZFE..TCR1#,2#

 1
Common parts
90099-00200
90099-00215
90099-04103
90148-80020
