TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

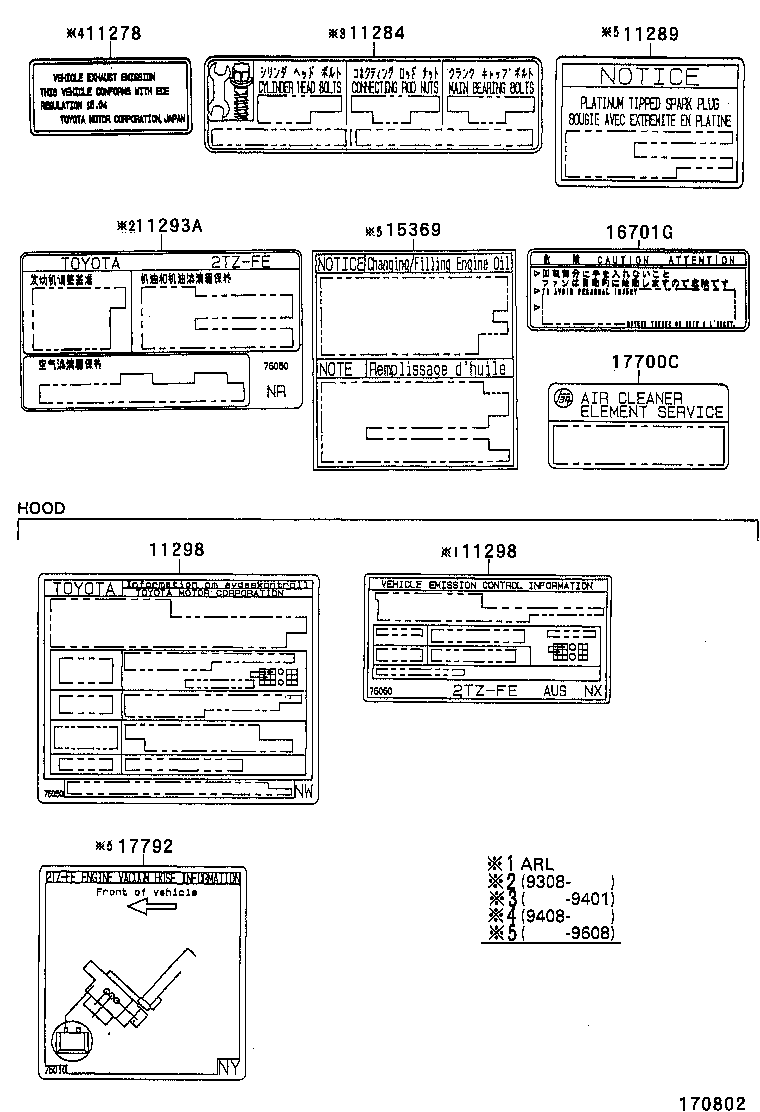

Click highlighted areas on diagram

diagram 11278 11284 11289 11293A 11298 11298 15369 16701G 17700C 17792
Part # Description Qty Price
11284 - PLATE, ENGINE BOLT INFORMATION
11284-75010

2TZFE..TCR1#,2#

 1
11289 - PLATE, SPARK PLUG CAUTION
11289-73020

2TZFE..TCR1#,2#..ARL,W

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-76060

2TZFE..TCR1#,2#..ARL

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-76060

2TZFE..TCR1#,2#..ARL

 1
15369 - PLATE, ENGINE OIL CAUTION
15369-76010

2TZFE..TCR1#,2#

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
90917-07084

2TZFE..TCR1#,2#..ARL,W

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-76010

2TZFE..TCR1#,2#

 1
