TCR20R-RFSDKQ (1990)

Toyota Previa

Production May 1990 - Aug 1991
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9401)

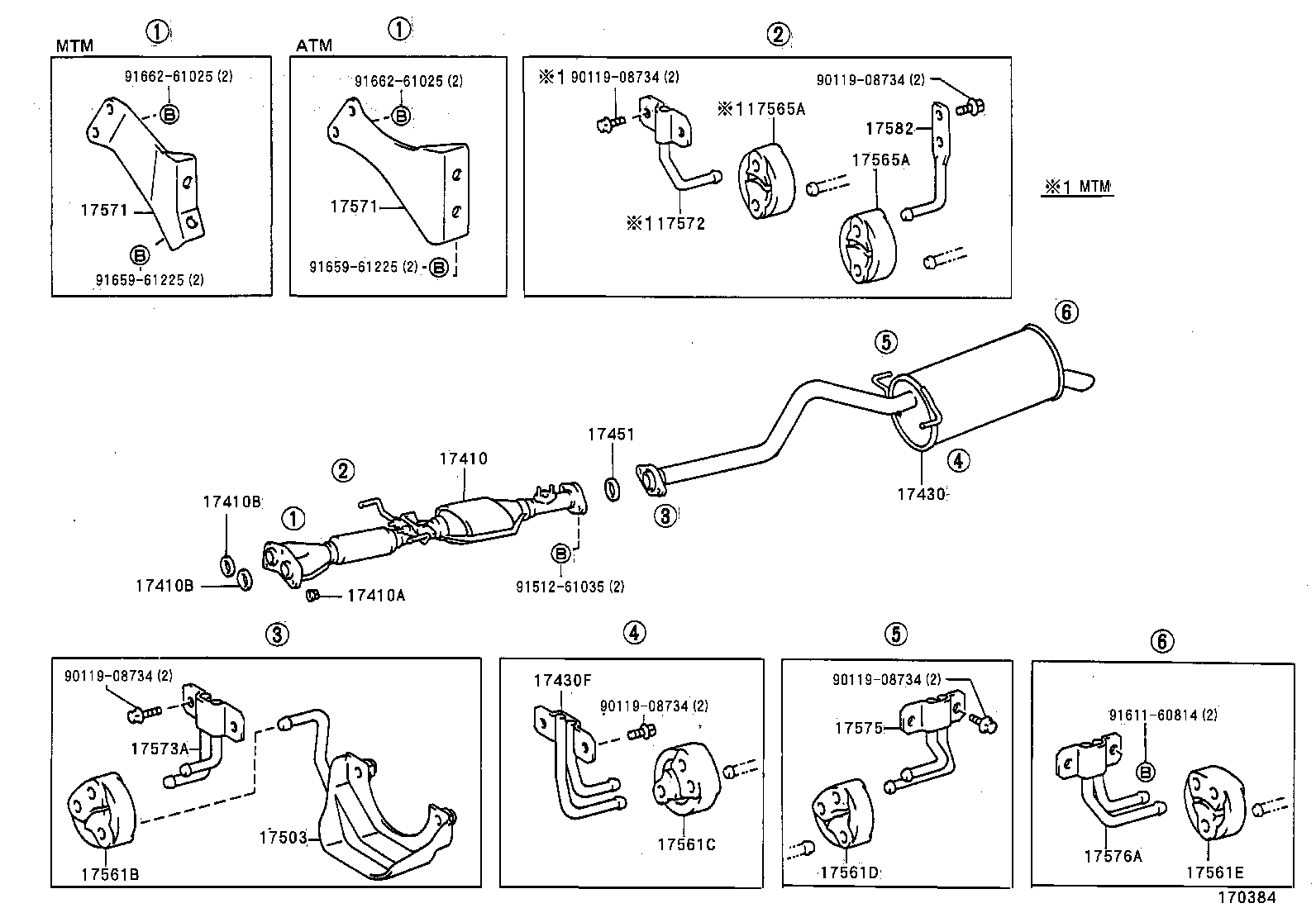

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17430 17430F 17451 17503 17561B 17561C 17561D 17561E 17565A 17565A 17571 17571 17572 17573A 17575 17576A 17582 9011908734 9011908734 9011908734 9011908734 9011908734 9151261035 9161160814 9165961225 9165961225 9166261025 9166261025
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-76051

2TZFE..TCR1#,2#..ARL

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2TZFE..TCR1#,2#

 3
17410B - GASKET, EXHAUST PIPE
90917-06039

2TZFE..TCR1#,2#

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

2TZFE..TCR1#,2#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-76031

2TZFE..TCR1#,2#..ARL

 1
17430-76030

2TZFE..TCR1#,2#..ARL

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17574-76020

2TZFE..TCR10,20

 1
17451 - GASKET, EXHAUST PIPE
90917-06057

2TZFE..TCR1#,2#

 1
17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17503-76010

2TZFE..TCR1#,2#

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZFE..TCR1#,2#

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZFE..TCR1#,2#

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZFE..TCR1#,2#

 1
17561E - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZFE..TCR1#,2#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-76030

2TZFE..TCR1#,2#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-76030

2TZFE..TCR1#,2#

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-76040

2TZFE..TCR1#,2#..ATM

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-76040

2TZFE..TCR1#,2#..ATM

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17583-76010

2TZFE..TCR1#,2#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-76030

2TZFE..TCR1#,2#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-76020

2TZFE..TCR1#,2#

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-76030

2TZFE..TCR1#,2#

 1
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-76010

2TZFE..TCR1#,2#

 1
Common parts
90119-08734
91512-61035
91611-60814
91659-61225
91662-61025
